Husqvarna PXT16542, 96016001700 (2009-04) Tractor/Ride Mower

Model: PXT16542, 96016001700 (2009-04)

Back To Assemblies

Save Part Not Listed?
product name

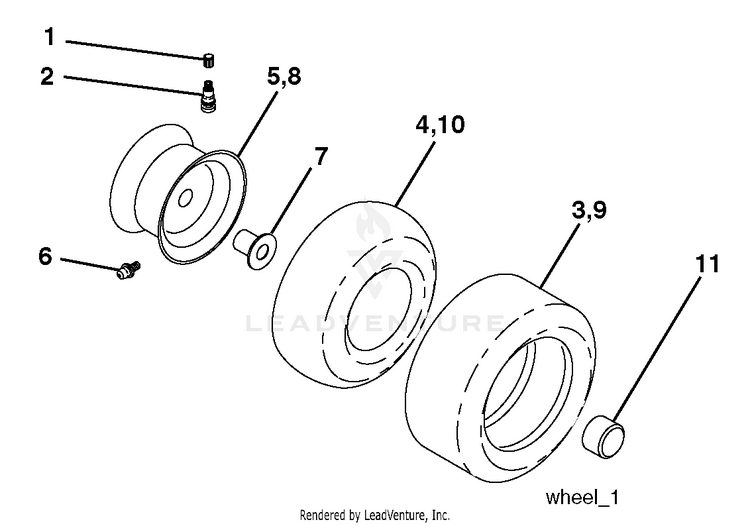

Wheels and Tires

...
...
1
Cap, Tire Valve HUS-59192
...
2
Stem, Valve HUS-65139
...
3
Tire, Front HUS-106222X
...
4
Tube, Front (Service item only) HUS-59904
...
5
Rim Assembly, 6" Front HUS-106732X643
...
6
Fitting, Grease (Front wheel only) HUS-278H
...
7
Bearing, Flange (Front wheel only) HUS-9040H
...
8
Rim Assembly, 8" Rear HUS-106108X643
...
9
Tire, Rear HUS-420531
...
10
Tube, Rear (Service item only) HUS-7152J
...
11
Cap, Hub Axle HUS-104757X643
...
11
Sealant, Tire (10 oz. Tube) HUS-144334
