Husqvarna PT26 D - 966632401 (2010-08) Riding Mower

Model: PT26 D - 966632401 (2010-08)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE 2

...
...
32
AIR CLEANER HUS-544180201
...
11
WASHER BRB 8.4X17 HUS-734116401
...
155
LOCKNUT M8 HUS-732211801
...
39
NEEDS DESCRIPTION HUS-522446501
...
158
NEEDS DESCRIPTION HUS-505396801
...
22
NEEDS DESCRIPTION HUS-544251601
...
28
NEEDS DESCRIPTION HUS-544282505
...
8
LOCKNUT M8 HUS-732211801
...
49
FUEL FILTER HUS-544282801
...
25
NEEDS DESCRIPTION HUS-544282502
...
7
BOLT HUS-506570104
...
156
BOLT HUS-506570103
...
160
NEEDS DESCRIPTION HUS-544913601
...
45
NEEDS DESCRIPTION HUS-510226501
...
59
GASKET HUS-544180701
...
30
RP HOSE CLAMP FUEL HOSE HUS-544282601
...
2
NEEDS DESCRIPTION HUS-504854501
...
150
BUSHING HUS-734117771
...
3
NEEDS DESCRIPTION HUS-510220601
...
18
SPACER HUS-734116441
...
26
NEEDS DESCRIPTION HUS-544282503
...
33
NEEDS DESCRIPTION HUS-544339801
...
31
HOSE CLAMP FUEL HOSE HUS-544282602
...
34
HOSE AIR INTAKE HUS-544180401
...
38
LOCKNUT M8 HUS-732211801
...
20
NEEDS DESCRIPTION HUS-515980801
...
161
NEEDS DESCRIPTION HUS-544913701
...
54
BRACKET AIR CLEANER HUS-544180301
...
152
BOLT HUS-506597401
...
159
NEEDS DESCRIPTION HUS-544913501
...
19
NEEDS DESCRIPTION HUS-544443201
...
37
BOLT HUS-506570103
...
51
AIR FILTER HUS-544283001
...
157
BOLT HUS-506597401
...
9
ANTIVIBRATION ELEMENT ENGINE HUS-544191302
...
10
SCREW HUS-725246251
...
36
NEEDS DESCRIPTION HUS-544202703
...
151
Screw M10x25 HUS-725249371
...
162
NEEDS DESCRIPTION HUS-544913801
...
4
NEEDS DESCRIPTION HUS-544251901
...
23
BOLT HUS-506597401
...
21
SCREW HUS-725236651
...
6
ANTIVIBRATION ELEMENT ENGINE HUS-544191303
...
48
NEEDS DESCRIPTION HUS-544291201
...
52
AIR FILTER HUS-544283201
...
1
NEEDS DESCRIPTION HUS-510192501
...
35
HOSE AIR INTAKE PT 26 2009 HUS-544180502
...
13
BOLT HUS-506570103
...
12
ANTIVIBRATION ELEMENT HUS-544252102
...
5
SCREW HUS-725253271
...
41
LOCKNUT M8 HUS-732211801
...
40
BOLT HUS-506570104
...
50
FILTER HOLDER WITH PRIMING PU HUS-544282901
...
24
NEEDS DESCRIPTION HUS-544282501

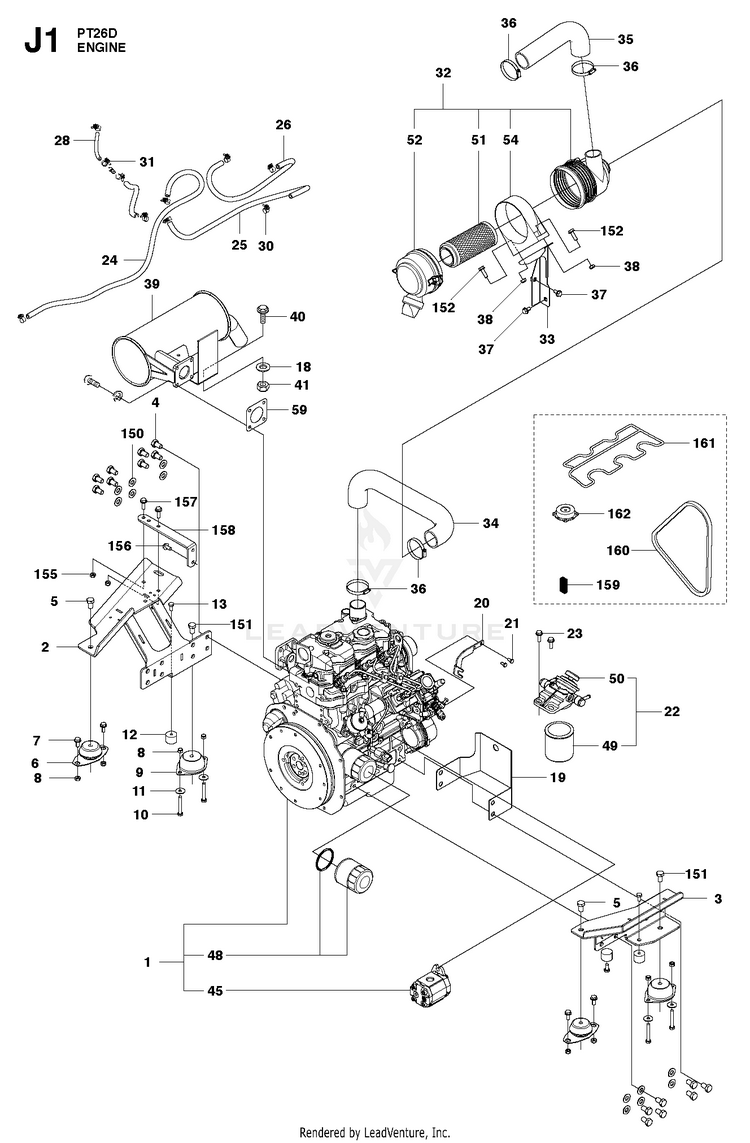

Schematic Image Zoomed
