product name

Husqvarna PT26 D - 966632401 (2010-08) Riding Mower

Model: PT26 D - 966632401 (2010-08)

Back To Assemblies

Save Part Not Listed?
product name

COVER

...
...
16
BRACKET HUS-506963701
...
21
GASKET SIDE COVER HUS-501047901
...
2
ENGINE HOOD CENTRE PART HUS-544177301
...
9
NEEDS DESCRIPTION HUS-506982602
...
20
SCREW HUS-535415619
...
8
NEEDS DESCRIPTION HUS-544291301
...
11
RIVET HUS-722782902
...
12
COVER CONTROL COVER SIDE ASSY HUS-501048001
...
19
NUT HUS-506892001
...
4
NEEDS DESCRIPTION HUS-522520202
...
3
NEEDS DESCRIPTION HUS-522520201
...
13
NEEDS DESCRIPTION HUS-544332701
...
18
SCREW HUS-535425802
...
17
NUT HUS-535429101
...
15
WASHER HUS-506963601
...
7
NEEDS DESCRIPTION HUS-544870101
...
14
BOLT HUS-525390601
...
5
NEEDS DESCRIPTION HUS-544254801
...
6
NEEDS DESCRIPTION HUS-544254901
...
10
WASHER HUS-506559701

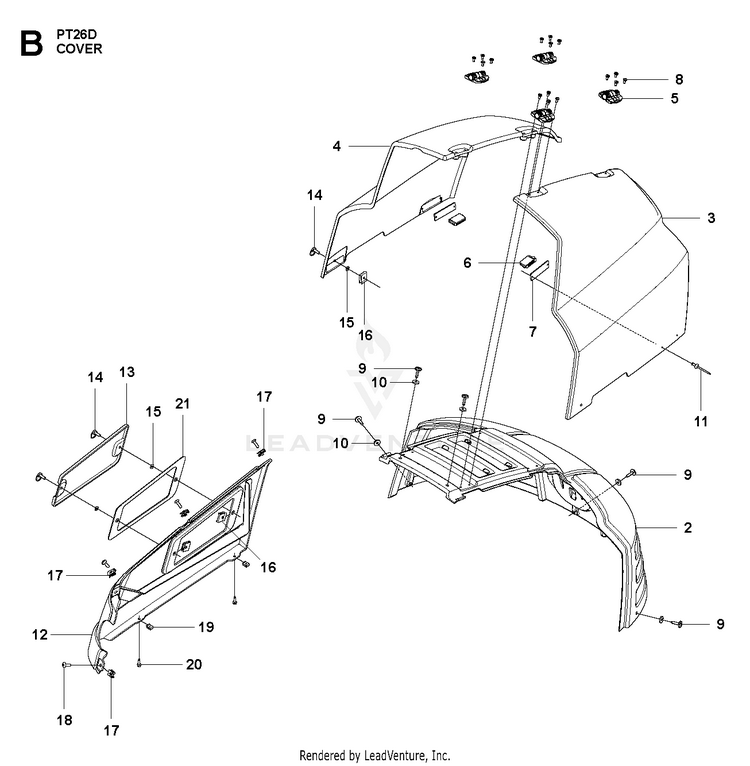

Schematic Image Zoomed
