Husqvarna PT26 D - 966632401 (2010-08) Riding Mower

Model: PT26 D - 966632401 (2010-08)

Back To Assemblies

Save Part Not Listed?
product name

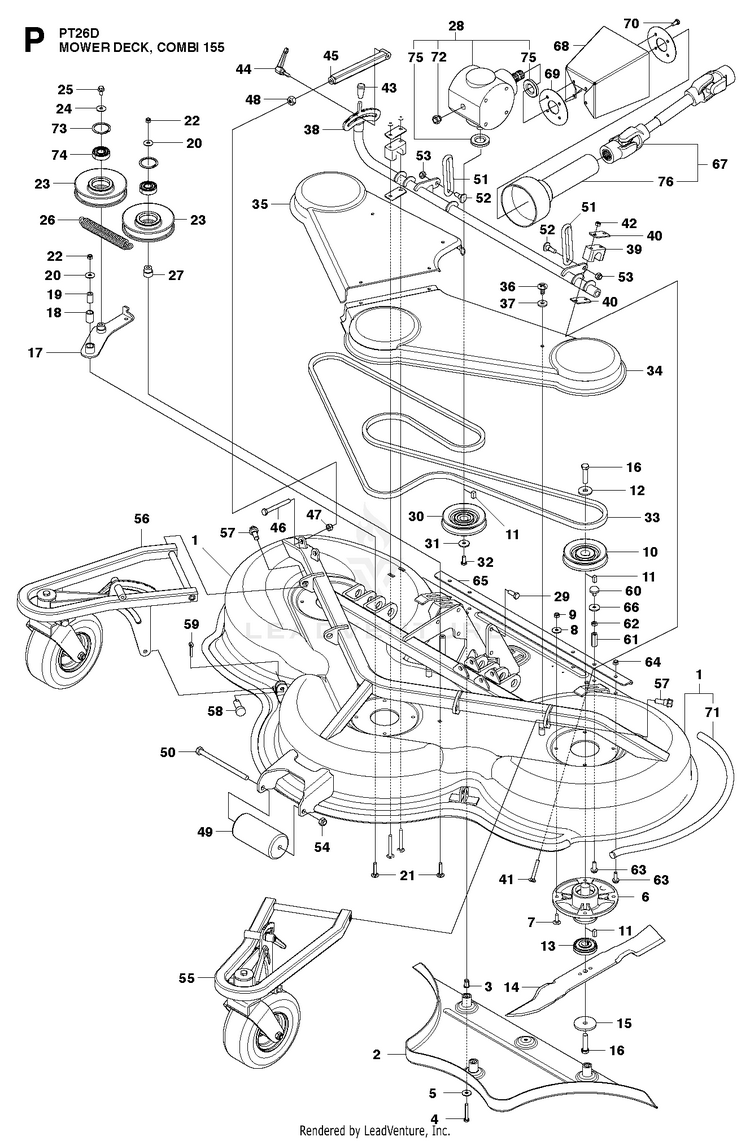

61"/155CM CUTTING DECK

...
...
5
WASHER BRB 8.4X17 HUS-734116401
...
44
TURNING KNOB M 8 HUS-544196801
...
7
BOLT HUS-535423801
...
58
HUS-721845601
...
46
SCREW HUS-725250971
...
13
HUS-535504201
...
37
WASHER HUS-506559701
...
17
BELT TENSIONER CUTTING DECK HUS-544175501
...
23
NEEDS DESCRIPTION HUS-523116201
...
66
SPACER HUS-734116441
...
25
BOLT FLANGE - M8X16 HUS-725244961
...
53
NUT HUS-732212001
...
6
NEEDS DESCRIPTION HUS-535428602
...
51
LINK HUS-544185001
...
52
SCREW LINK HUS-544214301
...
26
DRAW SPRING L=122 HUS-544218105
...
19
BUSHING HUS-506992001
...
24
SPACER HUS-734116441
...
33
NEEDS DESCRIPTION HUS-589535001
...
72
NEEDS DESCRIPTION HUS-525249701
...
69
NEEDS DESCRIPTION HUS-522750101
...
67
NEEDS DESCRIPTION HUS-525571201
...
38
CROSS BAR HUS-544175201
...
16
Screw HUS-725254251
...
15
WASHER HUS-506792302
...
9
LOCKNUT M8 HUS-732211801
...
10
NEEDS DESCRIPTION HUS-544255601
...
18
HUS-506986103
...
70
BOLT HUS-506570104
...
36
SCREW HUS-506982601
...
20
SPACER HUS-734116441
...
57
BOLT HUS-506895801
...
63
BOLT HUS-506570104
...
71
NEEDS DESCRIPTION HUS-522523601
...
30
PULLEY SPB DP106 HUS-544184001
...
40
PLATE HUS-506813801
...
43
NEEDS DESCRIPTION HUS-535438201
...
76
NEEDS DESCRIPTION HUS-522750201
...
42
LOCKNUT M8 HUS-732211801
...
29
Screw M10x25 HUS-725249371
...
64
LOCKNUT M8 HUS-732211801
...
39
NEEDS DESCRIPTION HUS-504190301
...
68
NEEDS DESCRIPTION HUS-522750001
...
75
NEEDS DESCRIPTION HUS-525249801
...
31
NEEDS DESCRIPTION HUS-544221601
...
3
BLIND RIVET NUT HUS-506916203
...
2
PLUG ASSY HUS-544166402
...
56
WHEEL SUSPENSION RIGHT HUS-544173202
...
47
NUT HUS-732212001
...
34
BELT COVER C155 L HUS-544184701
...
65
REINFORCING PLATE DECK SHELL HUS-501976701
...
27
BUSHING HUS-535484801
...
74
BALL-BEARING 6204-2RS HUS-738220419
...
60
ANTIVIBRATION ELEMENT HUS-501976601
...
48
Nut HUS-731232001
...
4
BOLT HUS-725246151
...
11
KEY HUS-506533501
...
12
HUS-535429201
...
28
BEVEL GEAR HUS-544183401
...
62
NUT HUS-731231801
...
21
Screw Mvbf 8 X 40 HUS-727645951
...
50
HUS-544221001
...
41
NEEDS DESCRIPTION HUS-535423802
...
61
NEEDS DESCRIPTION HUS-544317601
...
1
CUTTING DECK ASSY C155 HUS-544162902
...
73
CIRCLIP SGH 47 HUS-735314010
...
14
BLADE HUS-586198910
...
55
WHEEL SUSPENSION LEFT HUS-544173201
...
59
Split Pin HUS-721618301
...
49
ROLLER HUS-539002472
...
22
LOCKNUT M8 HUS-732211801
...
32
SCREW HUS-725245171
...
8
WASHER BRB 8.4X17 HUS-734116401
...
54
Nut HUS-732252201
...
35
NEEDS DESCRIPTION HUS-544184801
...
45
PARALLEL ROD NOT IN USE HUS-544201101
