Husqvarna PT26 D - 966632401 (2010-08) Riding Mower

Model: PT26 D - 966632401 (2010-08)

Back To Assemblies

Save Part Not Listed?
product name

WHEELS & TIRES 2

...
...
8
Washer HUS-506982501
...
20
NUT HUS-732212001
...
14
BOLT HUS-506895801
...
17
TURNING KNOB M 10 HUS-544191801
...
56
WHEEL SUSPENSION RIGHT HUS-544173202
...
18
SLEEVE PIVOT WHEEL SUPPORT HUS-544200201
...
10
TIRE/WHEEL.CASTER.9X3.5-4.SMOO HUS-539104556
...
2
SUPPORTING ARM RIGHT HUS-544173502
...
11
SPACER HUS-539101872
...
12
HUS-725255951
...
5
BEARING BUSHING BRASS HUS-544174102
...
9
BOLT HUS-506675401
...
55
WHEEL SUSPENSION LEFT HUS-544173201
...
3
PIVOT WHEEL SUPPORT LEFT HUS-544173301
...
19
SCREW HUS-725249571
...
1
SUPPORTING ARM LEFT HUS-544173501
...
7
FORK PIVOT WHEEL HUS-544173401
...
22
ENDCAP, NOTCHED HUS-539977356
...
21
ROLLER BEARING HUS-539977353
...
13
HUS-732212201
...
15
SHEET HEIGHT ADJUSTER HUS-544175001
...
4
PIVOT WHEEL SUPPORT RIGHT HUS-544173302
...
6
GREASE NIPPLE HUS-738881001
...
16
SHEET HEIGHT ADJUSTER HUS-544175002

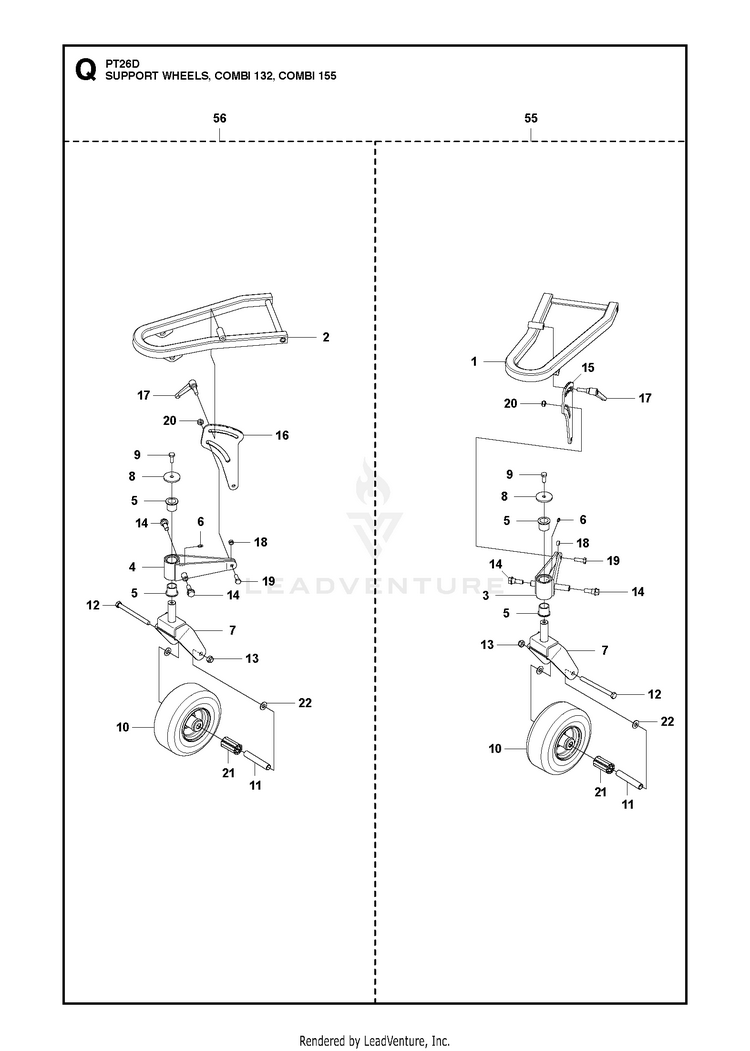

Schematic Image Zoomed
