Husqvarna PT26 D - 965 16 06-01 (2008-03) Riding Mower

Model: PT26 D - 965 16 06-01 (2008-03)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE 4

...
...
64
NEEDS DESCRIPTION HUS-544256101
...
108
BEARING UNIT FYTB 25TF HUS-544191001
...
23
BOLT HUS-506597401
...
73
NEEDS DESCRIPTION HUS-540062801
...
150
BUSHING HUS-734117771
...
10
SCREW HUS-725246251
...
84
NEEDS DESCRIPTION HUS-544202702
...
88
Screw M10x25 HUS-725249371
...
39
CATALYTIC CONVERTER HUS-544180601
...
71
NEEDS DESCRIPTION HUS-544342802
...
18
SPACER HUS-734116441
...
13
BOLT HUS-506570103
...
109
SCREW HUS-725249571
...
89
NEEDS DESCRIPTION HUS-544191101
...
11
WASHER BRB 8.4X17 HUS-734116401
...
35
HOSE AIR INTAKE PT 26D 2006-20 HUS-544180501
...
9
ANTIVIBRATION ELEMENT ENGINE HUS-544191302
...
21
Screw HUS-725236671
...
118
NEEDS DESCRIPTION HUS-501326101
...
110
NUT HUS-732212001
...
76
Screw HUS-725236851
...
87
POWER TAKE OFF HUS-544179201
...
111
DRAW SPRING L=85,8 HUS-544218102
...
24
NEEDS DESCRIPTION HUS-544282501
...
4
NEEDS DESCRIPTION HUS-544251901
...
7
BOLT HUS-506570104
...
120
Nut HUS-732252201
...
152
BOLT HUS-506597401
...
119
NEEDS DESCRIPTION HUS-725255651
...
75
ELECTRIC FAN HUS-544181001
...
83
NEEDS DESCRIPTION HUS-535437202
...
79
HOSE COOLING WATER HUS-544181301
...
93
SCREW HUS-728844701
...
90
NEEDS DESCRIPTION HUS-725550050
...
153
HOSE HUS-506946702
...
102
NEEDS DESCRIPTION HUS-540062201
...
12
ANTIVIBRATION ELEMENT HUS-544252102
...
51
AIR FILTER HUS-544283001
...
44
NEEDS DESCRIPTION HUS-544251701
...
78
HOSE COOLING WATER HUS-544181101
...
34
HOSE AIR INTAKE HUS-544180401
...
105
SCREW HUS-728844701
...
47
SCREW HUS-725237071
...
50
FILTER HOLDER WITH PRIMING PU HUS-544282901
...
40
BOLT HUS-506570104
...
49
FUEL FILTER HUS-544282801
...
155
NEEDS DESCRIPTION HUS-734118041
...
162
NEEDS DESCRIPTION HUS-544913801
...
95
NEEDS DESCRIPTION HUS-544191201
...
33
NEEDS DESCRIPTION HUS-544339801
...
62
RADIATOR ASSY HUS-501017801
...
5
SCREW HUS-725253271
...
121
NEEDS DESCRIPTION HUS-502287801
...
94
NEEDS DESCRIPTION HUS-506533502
...
106
NUT HUS-732212001
...
32
AIR CLEANER HUS-544180201
...
117
LOCKNUT M8 HUS-732211801
...
107
NEEDS DESCRIPTION HUS-544252701
...
45
HYDRAULIC PUMP HUS-544179301
...
160
NEEDS DESCRIPTION HUS-544913601
...
6
ANTIVIBRATION ELEMENT ENGINE HUS-544191303
...
161
NEEDS DESCRIPTION HUS-544913701
...
20
BRACKET THROTTLE WIRE HUS-544219101
...
115
NEEDS DESCRIPTION HUS-506976402
...
14
NEEDS DESCRIPTION HUS-544221601
...
38
LOCKNUT M8 HUS-732211801
...
30
RP HOSE CLAMP FUEL HOSE HUS-544282601
...
159
NEEDS DESCRIPTION HUS-544913501
...
70
NEEDS DESCRIPTION HUS-544342801
...
60
ANTIVIBRATION ELEMENT HUS-544252101
...
25
NEEDS DESCRIPTION HUS-544282502
...
101
SCREW IHSCM 10X75 12.9 ZPB HUS-502233501
...
77
WASHER - M6 HUS-734115201
...
54
BRACKET AIR CLEANER HUS-544180301
...
2
ENGINE MOUNTING RIGHT HUS-544179401
...
63
NEEDS DESCRIPTION HUS-501017901
...
8
LOCKNUT M8 HUS-732211801
...
85
BOLT HUS-506570104
...
96
NEEDS DESCRIPTION HUS-540062101
...
69
NEEDS DESCRIPTION HUS-544280801
...
61
LOCKNUT M8 HUS-732211801
...
151
Screw M10x25 HUS-725249371
...
65
LOCKNUT M6 HUS-732211601
...
37
BOLT HUS-506570103
...
19
NEEDS DESCRIPTION HUS-544443201
...
66
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
154
NEEDS DESCRIPTION HUS-540061901
...
1
NEEDS DESCRIPTION HUS-544251701
...
48
NEEDS DESCRIPTION HUS-544291201
...
113
BUSHING HUS-506986102
...
72
NEEDS DESCRIPTION HUS-544344801
...
114
IDLER PULLEY HUS-539919078
...
100
SCREW IHSCM M10X30 12.9 ZPB L HUS-502233601
...
3
ENGINE MOUNTING LEFT HUS-544179801
...
36
NEEDS DESCRIPTION HUS-544202703
...
82
SCREW EHHM HUS-725248771
...
26
NEEDS DESCRIPTION HUS-544282503
...
41
LOCKNUT M8 HUS-732211801
...
46
CONNECTION HUS-544251801
...
22
NEEDS DESCRIPTION HUS-544251601
...
74
SCREW HUS-725237071
...
80
HOSE COOLING WATER HUS-544181401
...
81
TUBE COOLING WATER HUS-544189801
...
116
Screw HUS-725246571
...
68
LOCKNUT M6 HUS-732211601
...
86
LOCKNUT M8 HUS-732211801
...
67
ANTIVIBRATION ELEMENT RADIATOR HUS-544190001
...
59
GASKET HUS-544180701
...
104
NEEDS DESCRIPTION HUS-540062301

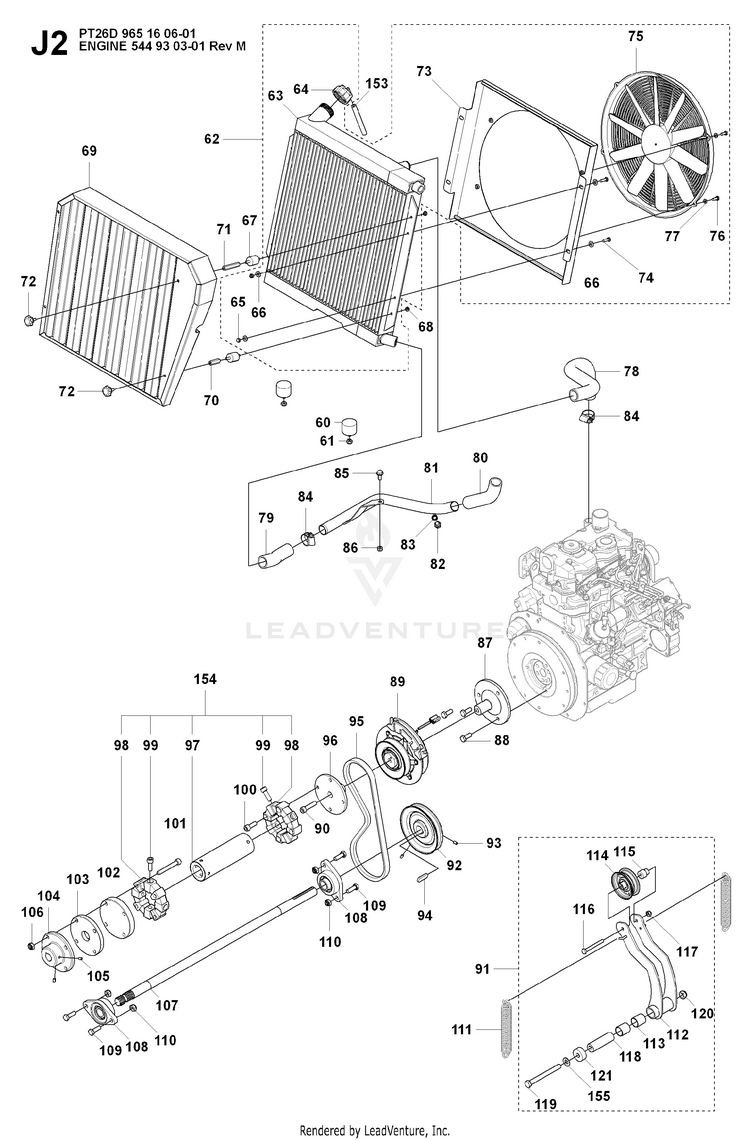

Schematic Image Zoomed
