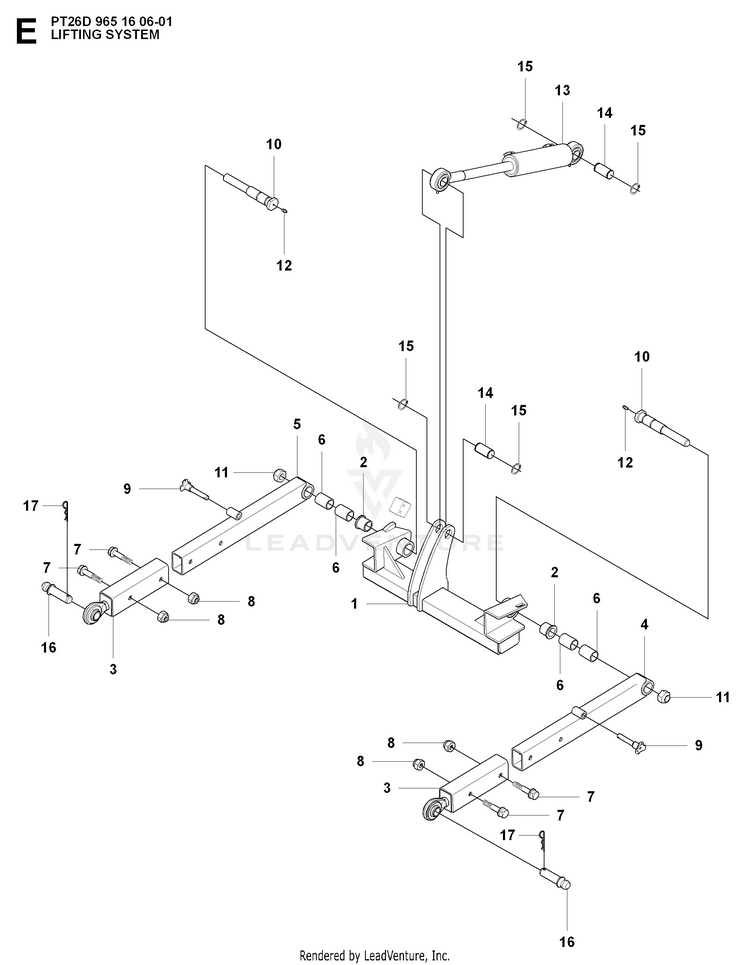

Husqvarna PT26 D - 965 16 06-01 (2008-02) Riding Mower

Model: PT26 D - 965 16 06-01 (2008-02)

Back To Assemblies

Save Part Not Listed?
product name

MOWER LIFT / DECK LIFT

...
...
2
BEARING BUSHING BRASS HUS-544174102
...
9
COTTER HUS-544184401
...
13
HYDRAULIC CYLINDER HUS-544176101
...
3
EQUIPMENT FRAME HUS-544220001
...
1
BEAM PACKING BEAM HUS-544202101
...
11
NUT LOCKING HUS-544281301
...
12
GREASE NIPPLE HUS-738881001
...
18
NEEDS DESCRIPTION HUS-505432501
...
21
Nut HUS-732252201
...
15
RETAINING RING SGA 25 HUS-735312600
...
10
NEEDS DESCRIPTION HUS-544214602
...
8
Nut HUS-732252201
...
7
HUS-725254471
...
5
LIFTING ARM RIGHT HUS-544219402
...
4
LIFTING ARM LEFT HUS-544219401
...
6
BEARING BUSHING HUS-544219201
...
14
NEEDS DESCRIPTION HUS-544219801
...
16
Cotter Pins HUS-586424701
...
17
RETAINER HUS-506966601
