Husqvarna PT26 D - 965 08 04-01 (2008-11) Riding Mower

Model: PT26 D - 965 08 04-01 (2008-11)

Save Part Not Listed?
product name

HYDRAULIC PUMP - MOTOR

...
...
10
DECAL.PARKING.BRAKE.SADDLE.LT HUS-581578001
...
12
NEEDS DESCRIPTION HUS-531229003
...
11
DECAL.DFLCTR.WARNNG.CTFNGR.SYM HUS-581579201
...
-
NEEDS DESCRIPTION HUS-532410185
...
7
DECAL.CUTFINGER.CE.02 HUS-581579101
...
1
DECAL.READ.OWN.MAN.SYMBOL.LT HUS-581578101
...
9
DECAL BTRY SYMBOLS HUS-532145005
...
-
PAD, FOOTREST, RH HUS-532411056
...
3
DECAL.ENGINE.WARNING HUS-581579701
...
4
NEEDS DESCRIPTION HUS-532410100
...
13
DECAL.WARN.DFLCTR/CTFNGR.SRD. HUS-581579301
...
6
DECAL 80 DBA HUS-532124433
...
2
DECAL.BADGE.170MM.TEXTLOGO. HUS-581627301
...
14
DECAL.WHEEL.STRG.LGN.H HUS-532404484
...
8
DECAL.TICK.MARK.AUST HUS-583028901
...
5
DECAL HUS-532159736
...
-
PAD.FOOT.LH.HUSQ.ERGO.LT.GREY HUS-532439681
...
-
DECAL.DRAWBAR.LDL HUS-584449901

SEAT

...
...
2
MUFFLER.SINGLE.CYL.KOHL/B&S HUS-532188655
...
90
SCREW 3/8-16X1 HUS-817000616
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
37
HOSE CLAMP HUS-532123487
...
82
VALUE.OIL.DRAIN HUS-532428287
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
94
TUBE.EXHAUST.KOHLER.COURAGE HUS-583955301
...
79
Screws HUS-596134201
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
92
SCREW 3/8-16X1 HUS-817120616
...
9
KEEPER.BELT.ENGINE.3.25 (3 2) HUS-532194319
...
21
Screws HUS-596321701
...
41
Washers HUS-596238901
...
15
FUEL.TANK.ASM.NON-EPA HUS-581289901
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
69
GASKET.EXHAUST.KOHLER HUS-532185909
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
96
Washers HUS-596135301
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
12
PULLEY.ENGINE HUS-586729001
...
83
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
43
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501

CHASSIS & ENCLOSURES

...

No Parts Available for this Schematic

DECALS

...
...
10
NEEDS DESCRIPTION HUS-535438201
...
9
NEEDS DESCRIPTION HUS-544358001
...
6
LOCKNUT M8 HUS-732211801
...
12
NEEDS DESCRIPTION HUS-544358602
...
5
SCREW 8X20 HUS-725245151
...
7
SCREW HUS-725246351
...
11
NEEDS DESCRIPTION HUS-544358601
...
17
NEEDS DESCRIPTION HUS-506557303
...
8
LOCKNUT M8 HUS-732211801
...
4
LOCKNUT M8 HUS-732211801
...
2
NEEDS DESCRIPTION HUS-544317201
...
15
DRAW SPRING L=50 HUS-544218103
...
18
LOCKNUT M6 HUS-732211601
...
19
NEEDS DESCRIPTION HUS-544971901
...
20
SCREW ISO 4014 M6X12 8.8 ZPB HUS-531119208
...
14
LOCKNUT M6 HUS-732211601
...
1
NEEDS DESCRIPTION HUS-544305901
...
22
NEEDS DESCRIPTION HUS-544935501
...
16
NEEDS DESCRIPTION HUS-544468201
...
21
LOCKNUT M5 HUS-732211401
...
3
NEEDS DESCRIPTION HUS-504007801
...
13
BOLT FLANGE - M6X20 HUS-725236871

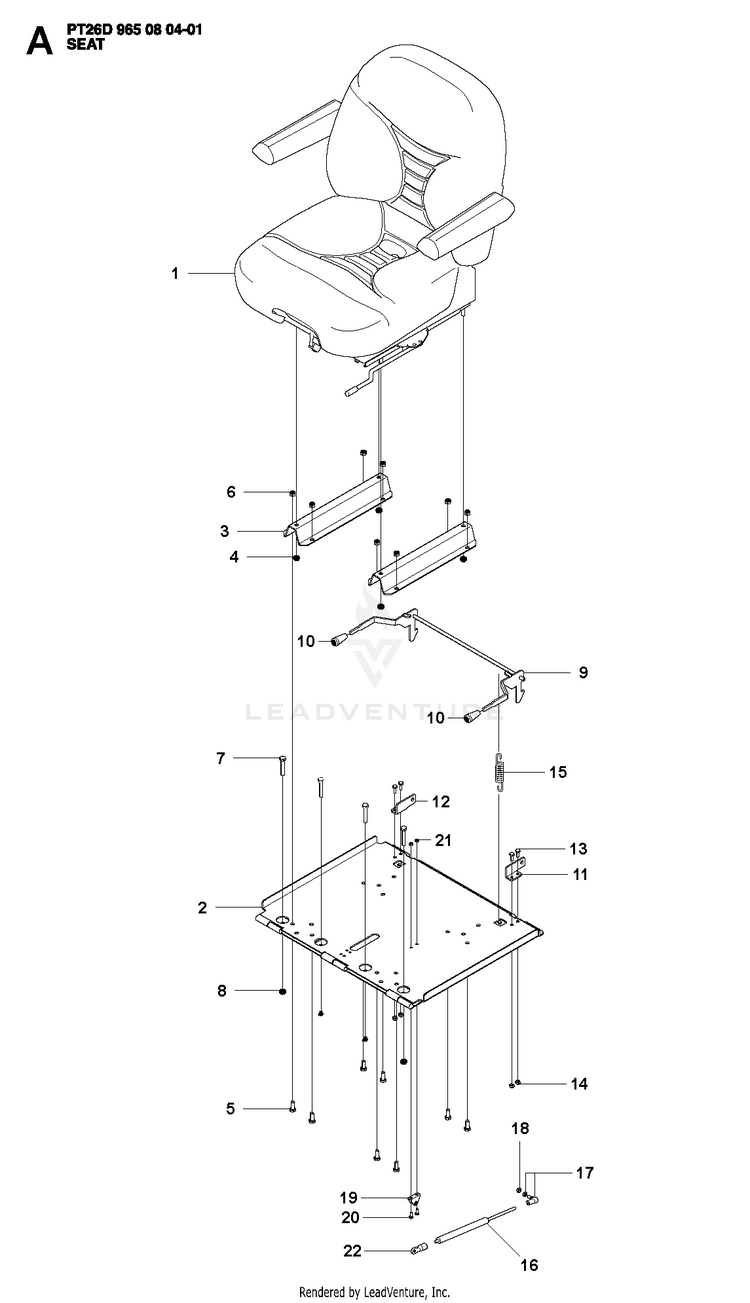

SEAT 2

...
...
44
WASHER.13/32x2 3/8x12GA HUS-583789501
...
2
BRKT.PIVOT.FENDER HUS-532180166
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
40
Handles HUS-595088102
...
10
PAN.ASM.SEAT.SHORT.SLD.ADJ.TEX HUS-532441805
...
6
Nuts HUS-596322601
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
43
BOLT HUS-874760612
...
3
STRAP HUS-532140675
...
1
SEAT.TH130.GREY.HUSQ.TEX HUS-532439819
...
37
Hardware HUS-596040501
...
41
SPRING.LATCH.SEAT.TEX HUS-532198200

STEERING

...
...
84
NEEDS DESCRIPTION HUS-544305505
...
72
NEEDS DESCRIPTION HUS-535426802
...
106
NEEDS DESCRIPTION HUS-544427201
...
38
GASKET HUS-544010001
...
104
NEEDS DESCRIPTION HUS-544373801
...
66
NEEDS DESCRIPTION HUS-535437303
...
4
WHEEL MOTOR 160 CCW HUS-544172301
...
202
Washer 7/32 x 1/2 x 16 Gauge HUS-819070816
...
103
NEEDS DESCRIPTION HUS-544373301
...
2
WHEEL MOTOR 125 CCW HUS-544172101
...
61
PIPE FITTING JIC T 3/4" HUS-544015601
...
59
NEEDS DESCRIPTION HUS-544347301
...
41
GASKET 14X10.5X1 COPPER HUS-544010002
...
211
NEEDS DESCRIPTION HUS-502652501
...
75
CHECK VALVE 2BAR HUS-544015403
...
92
NEEDS DESCRIPTION HUS-544383401
...
5
NEEDS DESCRIPTION HUS-544256301
...
71
NEEDS DESCRIPTION HUS-535426804
...
36
NEEDS DESCRIPTION HUS-535497601
...
48
LOCKNUT M5 HUS-732211401
...
204
NEEDS DESCRIPTION HUS-504013102
...
7
COTTER PIN HUS-721618701
...
45
TANK CAP HUS-544176401
...
74
PIPE FITTING JIC-BSPP STRAIGHT HUS-544015701
...
93
NEEDS DESCRIPTION HUS-544305507
...
100
NEEDS DESCRIPTION HUS-504055501
...
205
WASHER BRB 8.4X17 HUS-734116401
...
88
NEEDS DESCRIPTION HUS-544305508
...
210
NEEDS DESCRIPTION HUS-544434601
...
83
NEEDS DESCRIPTION HUS-544403901
...
43
BOLT HUS-506570103
...
86
NEEDS DESCRIPTION HUS-544305501
...
6
Nut HUS-732252201
...
40
LOCKNUT M6 HUS-732211601
...
63
NEEDS DESCRIPTION HUS-544347101
...
42
SCREW EHHM HUS-725248771
...
47
LOCKNUT M8 HUS-732211801
...
46
FILTER HOLDER HUS-544176501
...
85
NEEDS DESCRIPTION HUS-544305506
...
1
WHEEL MOTOR 125 CW HUS-544172001
...
82
NEEDS DESCRIPTION HUS-544305401
...
87
NEEDS DESCRIPTION HUS-544305502
...
39
FILTER PUMP SUCTION, AWD HUS-544001901
...
77
NEEDS DESCRIPTION HUS-544384401
...
3
WHEEL MOTOR 160 CW HUS-544172201
...
68
NEEDS DESCRIPTION HUS-535426504
...
105
HUS-725246161
...
37
PIPE FITTING G STRAIGHT 1/2-1/ HUS-544009701
...
203
NEEDS DESCRIPTION HUS-504013101
...
214
NEEDS DESCRIPTION HUS-535437203
...
33
HYDRAULIC TANK ASSY HUS-544262401
...
54
BOLT HUS-874760636
...
65
BRACE.AXLE.FRONT.NLT/N HUS-532194734
...
15
NUT CROWNLOCK 3/8-24 HUS-873540600
...
14
Washers HUS-596238701
...
16
SHAFT STEERING HUS-532196074
...
64
RETAINER.CLIP.SPRING.S HUS-532199849
...
70
BRACKET FRONT DECK SUSPENSION HUS-585338802
...
22
KIT.SRVC.STEERINGSHAFT.LWRBSHG HUS-587738901
...
61
Links HUS-597047802
...
1
WHEEL.STEERING.LEGND2.GRY HUS-532186093
...
55
SPACER.BRACE.AXLE (2 2) HUS-532197636
...
69
WASHER.1.5X.505X.118 HUS-532199162
...
63
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
59
WASHER.THURST.SECTOR.S HUS-532194748
...
71
SHAFT EXTENSION STEERING HUS-532196075
...
8
RING CLIP HUS-812000029
...
50
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
13
WASHER HUS-532121749
...
9
CAP.SPINDLE.BLACK HUS-532121232
...
33
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
45
Washers HUS-596040001
...
7
WASHER HUS-532121748
...
67
BUSHING, AXLE HUS-529496302
...
19
SERVICE KIT PLATE PLATE.STEER. HUS-531169101
...
72
BOLT.FIN.HEX.5/16-18 HUS-874780580
...
66
BOLT HEX FGHD 7/16-14 X 3 SERR HUS-871020748
...
28
SCREW, 3/8-16X3/4 HUS-817000612
...
62
Links HUS-597047902
...
35
GEAR.SECTOR.PLATE.DDL. HUS-532194732
...
2
AXLE.ASM.LT.CAST.LGHTWGHT HUS-532193542
...
4
SPINDLE.WELDED.LH.15"TEX.X431 HUS-596873601
...
6
WASHER THRUST HUS-532006266
...
21
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
20
STEERING.BOOT.HUSQ.LT HUS-532441425
...
58
BOLT.SHOULDER.SECTOR.P HUS-532194747
...
68
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
5
SPINDLE.WLDMT.RH.15INTIRE.X431 HUS-538691201
...
26
INSERT.CAP.STRG.WH.GRAY HUS-532193652
...
53
WASHER.HARDENED HUS-532188967
...
57
BRACKET.UPSTOP.TEX HUS-532407465
...
60
NUT.FLANGE.LOCK.5/8-11 HUS-583612801
