Husqvarna PRRT65C (2003) Tiller

Model: PRRT65C (2003)

Back To Assemblies

Save Part Not Listed?

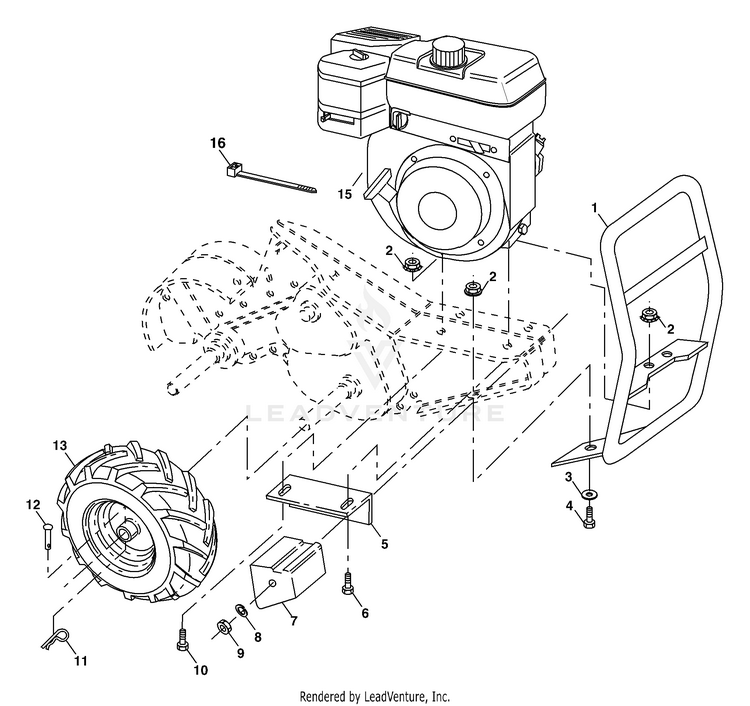

product name

Mainframe, Right Side

...
...
1
Bumper HUS-166532
...
2
Locknut, Hex, Flange 5/16-18 HUS-73970500
...
3
Washer 11/32 x 11/16 x 16 Ga. HUS-19111116
...
4
Bolt, Hex 5/16-18 x 3/4 HUS-74760512
...
5
Bracket, Reinforcement HUS-102332X
...
6
Bolt, Hex 5/16-18 x 2 HUS-74760532
...
7
Counter Weight, R.H. HUS-102173X
...
8
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
9
Nut, Hex 3/8-16 HUS-73220600
...
10
Bolt, Hex 5/16-18 x 1-1/2 HUS-74760524
...
11
Clip, Hairpin HUS-4497H
...
12
Rivet, Drilled HUS-126875X
...
13
Tire HUS-5015J
...
13
Rim HUS-127259X
...
13
Tire Valve HUS-795R
...
16
Tie Cable HUS-7192 J
