Husqvarna PRK17H42STB (2001) Tractor

Model: PRK17H42STB (2001)

Back To Assemblies

Save Part Not Listed?
product name

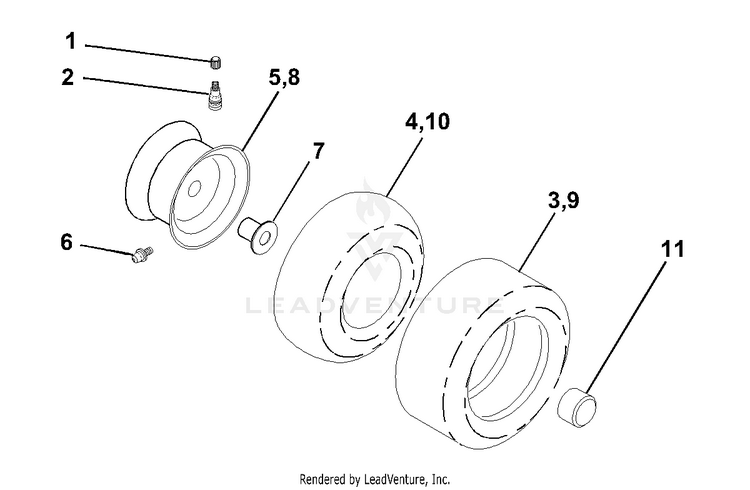

Wheels And Tires

...
...
1
Cap Valve Tire HUS-59192
...
2
Stem Valve HUS-65139
...
3
Tire F T 15 X 6 0 - 6 Service HUS-170455
...
4
Tube Front (Service Item Only) HUS-59904
...
5
Rim Asm 6"front Service HUS-106732X421
...
6
Fitting Grease (Front Wheel Only) HUS-278H
...
7
Bearing Flange (Front Wheel Only) HUS-9040H
...
8
Rim Asm 8"rear Service HUS-106108X421
...
9
Tire R T 20x10-8 Service HUS-170456
...
10
Tube Rear (Service Item Only) HUS-7152J
...
11
Cap Axle HUS-104757X421
...
xx
Sealant, Tire ( 10 oz. Tube) HUS-144334
