Husqvarna PRK17H42STA (2001) Tractor

Model: PRK17H42STA (2001)

Back To Assemblies

Save Part Not Listed?
product name

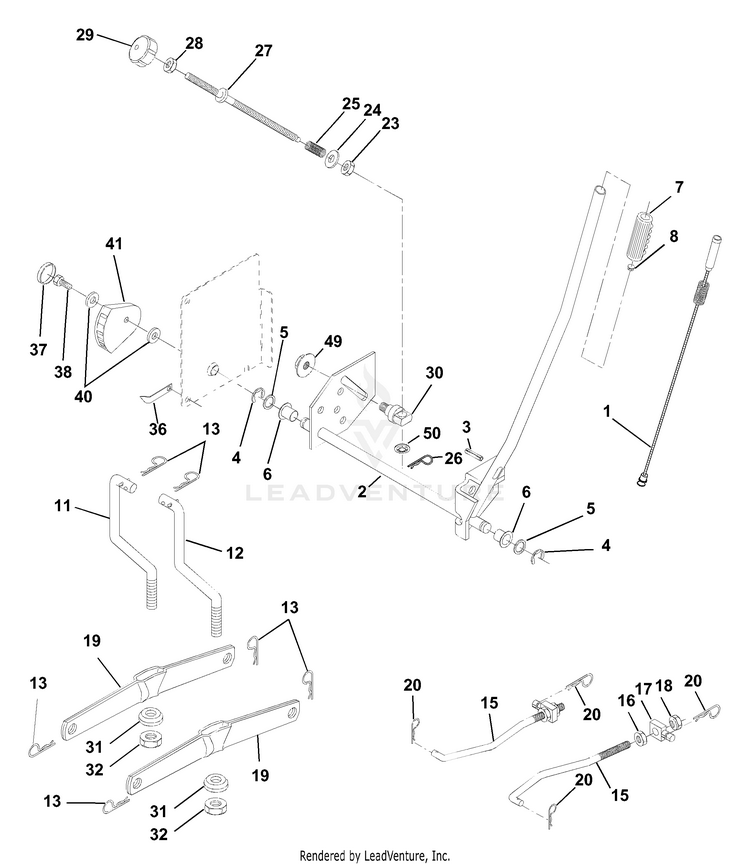

Mower Lift

...
...
1
Wire Asm Inner/Sprg W/plunger LT HUS-159460
...
2
Shaft Asm Lift RH w/Inf HUS-159471
...
3
Pin Groove 1 500 Zinc HUS-105767X
...
4
E Ring #5133-62 HUS-12000002
...
5
Washer 21/32 X 1 X 21 Ga HUS-19211621
...
6
Bearing Nylon Blk 629 Id HUS-120183X
...
7
Grip Handle HUS-125631X
...
8
Button Plunger HUS-170770
...
11
Link Lift LH Fixed Length HUS-139865
...
12
Link Lift RH Fixed Length HUS-139866
...
13
Retainer Spring HUS-4939M
...
15
Link Front HUS-173288
...
16
Nut Jam Hex 1/2-13 Unc HUS-73350800
...
17
Trunnion Blk Zinc HUS-130171
...
18
Nut Lock W/Wsh 1/2-13 Unc HUS-73800800
...
19
Arm Suspension Rear HUS-139868
...
20
Retainer Spring HUS-163552
...
23
Nut Special HUS-110807X
...
24
Washer 13/32 X 5/8 X 16 Ga HUS-19131016
...
25
Spring 2-1/8" HUS-2876H
...
26
Retainer Clip HUS-169484
...
27
Rod Adj Lift Zinc 7.49 Wrk Lg HUS-126971X
...
28
Nut Hex Jam 3/8-16 Unc HUS-73350600
...
29
Knob Inf 3/8-16 Unc Blk W/sym HUS-138057
...
30
Trunnion Infin Height HUS-150233
...
31
Bearing Pvt Lift HUS-169865
...
32
Nut Crownlock 3/8 - 24 HUS-73540600
...
36
Pointer Height Indicator HUS-155097
...
37
Plug Hole Blk 1.485/1.515 Dia. HUS-123935X
...
38
Screw 5/16-18 x 1 HUS-17060516
...
40
Washer 11/32 x 1-1/2 10 Ga. HUS-19112410
...
41
Indicator Height STLT HUS-155098
...
49
Nut Hex Flange Lock HUS-145212
...
50
Nut PUsh Phos & Oi HUS-110452X
