Husqvarna PRK17G42STB (2001) Tractor

Model: PRK17G42STB (2001)

Back To Assemblies

Save Part Not Listed?
product name

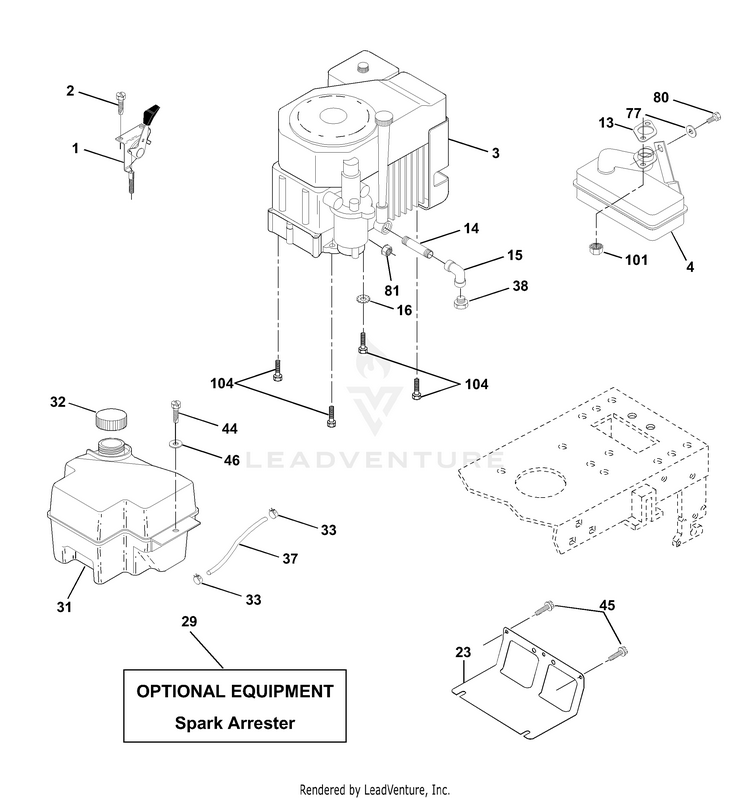

Engine

...
...
1
Control Th/ch Flag HUS-170805
...
2
Screw Hex Thd Cut 1/4-20x5/8 T HUS-17720410
...
4
Muffler Exhaust HUS-159420
...
13
Gasket Muffler HUS-12-041-03
...
14
Tube Drain Oil Easy HUS-148456
...
16
Washer Lock Ext Tooth 3/8 HUS-11050600
...
23
Shield Brn/Dbr Guard HUS-169837
...
29
Arrestor Spark HUS-137180
...
31
Tank Fuel Front 2 00 HUS-174642
...
32
Cap Fuel HUS-140527
...
33
Clamp Hose Black HUS-123487X
...
37
Line Fuel 20" HUS-137040
...
38
Plug Drain Oil Easy HUS-148315
...
40
Bushing Snap Nyl Blk Fuel Line HUS-124028X
...
44
Screw Hex wsh Thdrol 1/4-20x3/4 HUS-17670412
...
45
Screw Hex Wsh Thdrol 3/8-16 x 3/4 HUS-17000612
...
46
Washer 9/32 X 7/8 X 16 Ga HUS-19091416
...
77
Washer 5/16 x 3/4 x 16 Ga. HUS-19101216
...
80
Bolt Hex Hd. 5/16-18 Unc x 1/2 HUS-74760508
...
81
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
101
Nut Flange HUS-M73030800
...
105
Screw 3/8-16 x 1 HUS-17120616
