Husqvarna PRGT25H48A (2002) Tractor

Model: PRGT25H48A (2002)

Back To Assemblies

Save Part Not Listed?
product name

Ground Drive

...
...
2
Key Sq. 1/4 x 1/4 x 2 HUS-180642
...
3
Washer Thrust HUS-7563R
...
6
Pin, Cotter HUS-76020412
...
7
Wheel, Hub Assembly HUS-140507
...
9
Bolt, Hub HUS-140080
...
20
Nut HUS-73940800
...
22
Lever Asm Shift HUS-180235
...
23
Knob HUS-140845
...
29
Brake, Rod HUS-176600
...
33
Ring E HUS-12000053
...
34
Cap, Parking Brake HUS-71673
...
35
Rod, Parking Brake HUS-137648
...
36
Spring, Drive Ground HUS-149412
...
37
Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X
...
38
Nyliner HUS-150035
...
39
Screw, Fin. #10-24 x 1 HUS-74321016
...
40
Actuator, Interlock Switch HUS-178575
...
41
Nut Centerlock 10-24 Unc HUS-73931000
...
42
Cover, Pedal HUS-123533X
...
46
Retainer, Spring HUS-145170
...
48
Bolt Carr. Shoulder 3/8-16 x 1-3/4 Gr. 5 HUS-72110614
...
50
Pulley, Idler, Flat HUS-131494
...
52
Pulley, Idler, Grooved HUS-127783
...
55
Bearing, Idler HUS-105706X
...
56
V-Belt HUS-161597
...
58
Bolt Fin Hex 7/16-14 x 1-1/2 HUS-74760724
...
61
Pulley, Transaxle HUS-143995
...
64
Shaft, Brake Pedal HUS-176601
...
65
Bolt, Shoulder HUS-179613
...
68
Pin, Roll HUS-5142H
...
69
Washer HUS-123800
...
70
Console Shift HUS-179121X428
...
73
Bolt Hex Flghd 5/16-18 x 3 Gr5 HUS-74490548
...
74
Screw Hex Wsh. Hi-Lo 1/4-1/2 HUS-142432
...
77
Bolt Fin Hex 7/16-14 x 1 HUS-74780716
...
89
Nut Crownlock 7/16-14 Unc HUS-73680700
...
94
Fastener Christmas Tree HUS-133835
...
98
Bracket Shift HUS-141004
...
106
O-Ring Asm Hydro Gear HUS-142918
...
107
Line Fuel Hydro 15" VGT HUS-154739
...
108
Cap Asm Vent Hydro Gear HUS-142917
...
111
Spacer Shift Lever VGTH HUS-156240
...
112
Washer Nylon High Temp HUS-156104
...
114
Nut Lock Hex W/Ins 5/16-18 Unc HUS-73800500
...
117
Nut, Lock Flg. 3/8-16 HUS-73900600
...
120
Screw 3/8-16 x .75 HUS-17060612
...
121
Bracket Strap Torque HUS-175611
...
122
Bolt 5/16-18 x 2.50 HUS-72010520
...
123
Rod Shift HUS-176602
...
124
Bolt Shoulder 5/16-18 x .561 HUS-165492
...
125
Screw 5/16-18 x 5/8 HUS-166880
...
126
Washer SRRTD 5/16 ID x 1.0 x .125 HUS-166002
...
127
Link Control Clutch HUS-177362
...
128
Spring Drive GRND HUS-176624
...
129
Bracket Asm Idler Tensioning HUS-179473
...
130
Washer 13/32 x 5/8 x 16 Ga. HUS-19131016
...
131
Pin Cotter 3/32 x 3/4 HUS-76020312
...
132
Bracket Mtg Hydro 3500 LH VGT HUS-175467
...
133
Bracket Mtg Hydro 3500 RH VGT HUS-175468
...
135
Link Asm Control Hydro 3500 HUS-177364
...
137
Nut Lock 5/16-18 NC Thd. HUS-1685H
...
138
Washer Thrust 5/8 x 1.10 x 1/32 HUS-1370H
...
142
Strap Torque HG-3500 HUS-175469
...
143
Screw 5/16-18 x 3/4 HUS-17060512
...
145
Washer Axle Flange HG-3000 HUS-163168
...
146
Fan 7" Hydro HUS-140462
...
147
Washer HUS-141322
...
148
Screw 3/8-16 x 1-1/4 HUS-17060620
...
151
Bolt Fin Hex 5/16-18 x 7/8 HUS-74760514
...
152
Bolt Hex 5/16-18 x 1 HUS-178705
...
153
Spring Retainer HUS-4497H

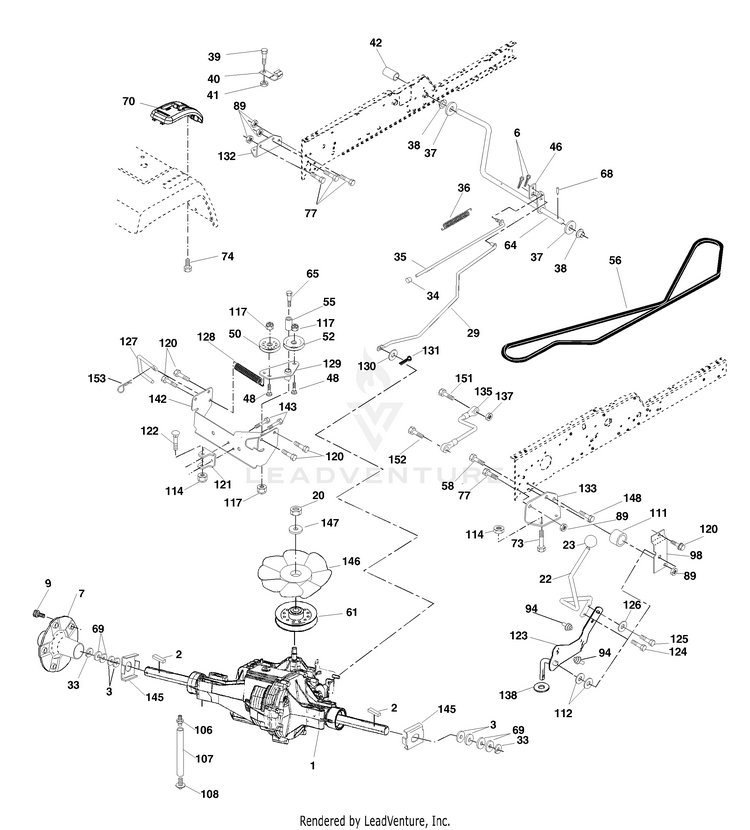

Schematic Image Zoomed
