Husqvarna PRGT25H48A (2002) Tractor

Model: PRGT25H48A (2002)

Back To Assemblies

Save Part Not Listed?
product name

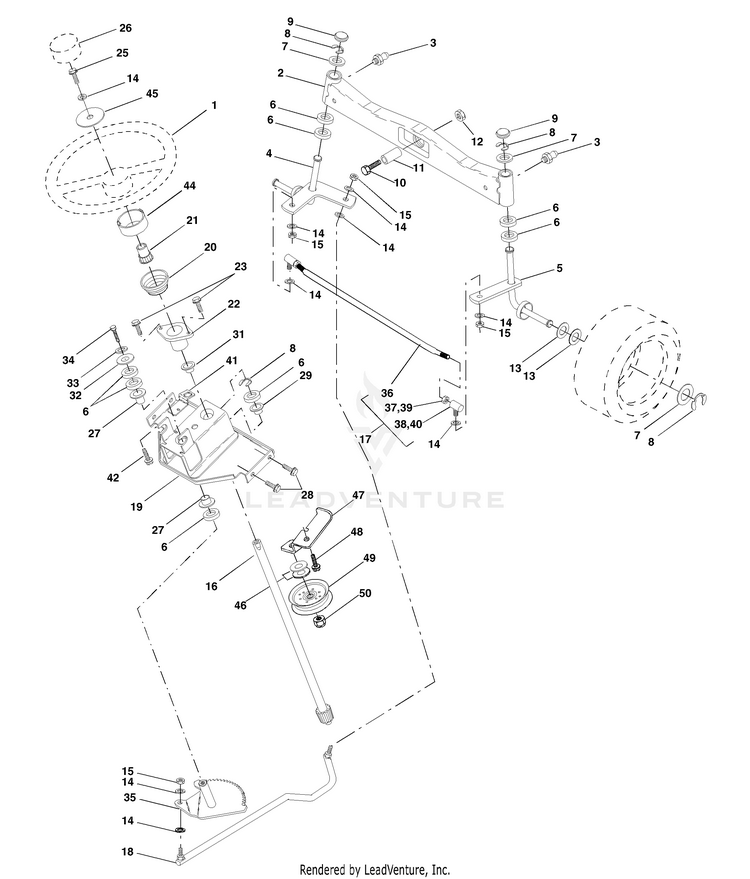

Steering Assembly

...
...
1
Wheel, Steering HUS-180656
...
2
Axle Asm., Front HUS-178557
...
3
Fitting, Grease HUS-6855M
...
4
Spindle Asm, LH HUS-161849
...
5
Spindle Asm., RH HUS-161848
...
6
Bearing, Race Thrust Harden HUS-6266H
...
7
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
8
Ring, Klip #T5304-75 HUS-12000029
...
9
Cap, Spindle HUS-121232X
...
10
Bolt, Fin Hex 5/8-11 x 2-3/4 HUS-74781044
...
11
Spacer, Brg. Axle Front HUS-136518
...
12
Nut, Lock Flange 5/8-11 Unc HUS-73901000
...
13
Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X
...
14
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
15
Nut Lock Center 3/8-24 Unf HUS-7810H
...
16
Shaft Asm., Steering HUS-145103
...
17
Rd Asm. Tie Ball HUS-137347
...
18
Draglink, Ball Joint Solid Vgt HUS-175572
...
19
Support Asm., Steering Vgt HUS-156011
...
20
Boot Steering Stealth HUS-163887X428
...
21
Adapter, Wheel Steering HUS-159945
...
22
Bushing, Strg. HUS-155105
...
23
Screw HUS-152927
...
25
Bolt, Fin Hex 3/8-16 x 1 Gr. 5 HUS-74780616
...
26
Insert Cap Strg WH HUS-180657
...
27
Bearing, Col. Strg. HUS-3366R
...
28
Screw Hexwsh thdr 3/8-16 x 3/4 HUS-17000612
...
29
Bearing, Flange HUS-104239X
...
31
Bushing, Nyliner Snap HUS-138136
...
32
Washer 11/32 x 1 x 10 Ga. HUS-19111610
...
33
Washer, Lock Hvy Hlcl Spr 5/16 HUS-10040500
...
34
Bolt, Hex Hd 5/16-18 x 3/4 HUS-74780512
...
35
Gear, Sector Steering HUS-138059
...
36
Tie Rod HUS-137156
...
37
Nut Hex Jam 3/8-24 Unf HUS-73360600
...
38
Joint Asm. Ball RH Service HUS-109850X
...
39
Nut Hex Jam 3/8-24 Unf LH HUS-73700600
...
40
Joint Asm. Ball LH Service HUS-109851X
...
41
Bracket Switch Interlock Vgt 97 HUS-155246
...
42
Screw Thdrol 5/16-18 x 1/2 Tyt HUS-17490508
...
44
Extension Steering HUS-160135X428
...
45
Washer 13/32 x 1-1/2 x 11 Ga. HUS-19132411
...
46
Washer 13/32 x 1 x 10 Ga. HUS-19131610
...
47
Bracket Asm. Idler Stationary HUS-177863
...
48
Screw 3/8-16 x .75 HUS-17060612
...
49
Pulley Idler Flat HUS-175820
...
50
Nut Lock Flg. 3/8-16 Unc HUS-73900600
