Husqvarna PRGT22H50D (2001) Tractor

Model: PRGT22H50D (2001)

Back To Assemblies

Save Part Not Listed?
product name

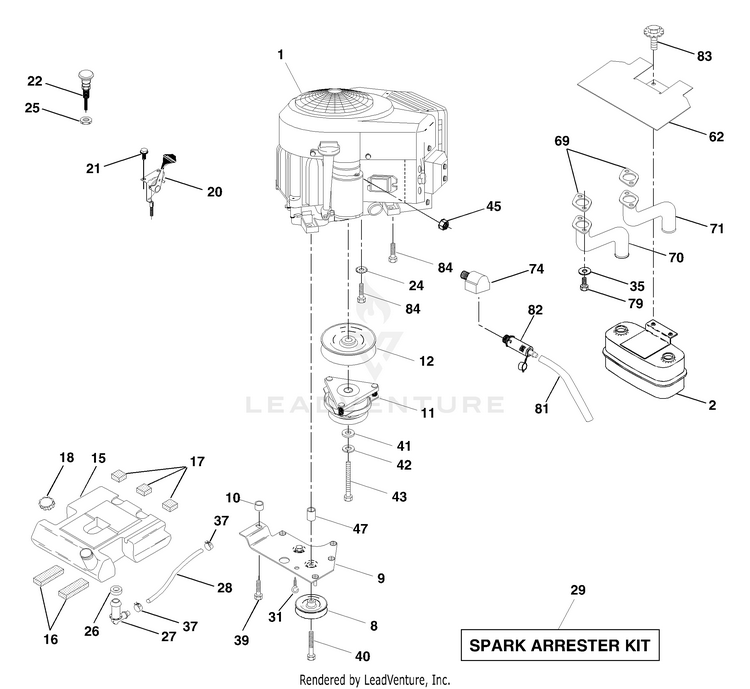

Engine

...
...
2
Muffler Side HUS-149723
...
8
Pulley V-Idler HUS-121361X
...
9
Keeper Asm. Belt Engine VGT HUS-177748
...
10
Bushing HUS-175287
...
11
Clutch Electric HUS-170056
...
12
Pulley Engine VGT Elect Clutch HUS-143996
...
15
Tank Fuel Rear 3.50 HUS-151346
...
16
Pad Spacer HUS-109227X
...
17
Pad Spacer HUS-106082X
...
18
Top Vented N/LANY HUS-140527
...
20
Control Throttle HUS-175437X428
...
21
Screw Hex Thd Cut 1/4 - 20 X 5/8 HUS-164863
...
22
Control Choke HUS-175440X428
...
24
Washer Ext Tooth 3/8 HUS-11050600
...
25
Nut Keps 3/8-24 Unf HUS-73920600
...
26
Bushing HUS-3645J
...
27
Stem Tank Fuel HUS-139277
...
28
Fuel Line HUS-7834R
...
29
Spark Arrester Kit HUS-137180
...
31
Clip Push-In HUS-145006
...
35
Washer HUS-10040500
...
37
Clamp Hose HUS-123487X
...
39
Screw TT 3/8-16 x 2-1/4 UNC HUS-17490636
...
40
Screw TT 3/8-16 x 4 UNC HUS-17490664
...
41
Washer 1-1/2 OD X 15/32 ID X .250 HUS-126197X
...
42
Washer Lock 7/16 HUS-10040700
...
43
Bolt Hex 7/16-20 X 4 Gr. 5 HUS-173937
...
45
Nut Keps Hex 1/4-20 HUS-73510400
...
47
Spacer HUS-175288
...
62
Shield Heat Muffler CV-Intek HUS-146629
...
69
Gasket HUS-165391
...
70
Tube Exhaust LH HUS-176069
...
71
Tube Exhaust RH HUS-176070
...
74
Elbow Street Brass HUS-162295
...
79
Screw Hex Hd Cap 5/16-18 x 3/4 HUS-71070512
...
81
Tube Drain Oil Easy HUS-148456
...
82
Plug Oil Drain Easy HUS-148315
...
83
Bolt 5/16-18unc X 1-3/4 W/Sems HUS-171877
...
84
Screw Thdrol 3/8-16 x 1-1/2 HUS-17060624
