Husqvarna PRGT22H50A (2001) Tractor

Model: PRGT22H50A (2001)

Back To Assemblies

Save Part Not Listed?
product name

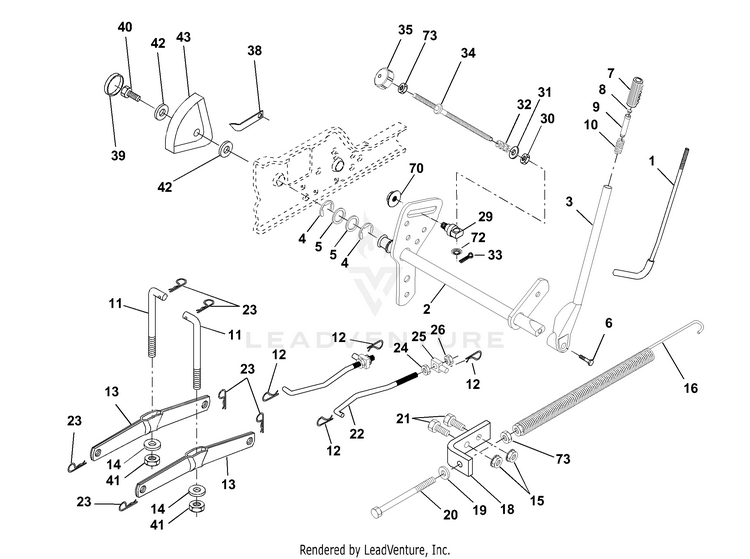

Lift Assembly

...
...
1
Rod Asm., Lever HUS-121006X
...
2
Shaft Asm., Lift Vgt HUS-159187
...
3
Lever Asm., Lift Rh HUS-159189
...
4
E-Ring Truarc #5133-87 HUS-12000022
...
5
Washer 29/32 x 1-1/4 x 16 Ga. HUS-19292016
...
6
Bolt, Fin Hex 3/8-16 x 1-1/2 HUS-71110624
...
7
Grip, Handle Fluted HUS-125631X
...
8
Button, Plunger HUS-170770
...
9
Plunger, Lever Lift HUS-122364X
...
10
Spring 2-1/8" HUS-2876H
...
11
Link Lift HUS-146704
...
12
Retainer, Spring HUS-163552
...
13
Arm, Suspension Vgt HUS-139868
...
14
Bearing Pivot Lift Tapered HUS-169865
...
15
Nut, Crownlock 3/8-16 Unc HUS-73350600
...
16
Spring Asm., Assist Lift HUS-674A247
...
17
Nut, Hex Jam 3/8-16 Unc HUS-73680600
...
18
Bracket, Spring Assist HUS-143363
...
19
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
20
Bolt, Adjust Spring Assist HUS-5328J
...
21
Bolt, Fin Hex 3/8-16 x 1 HUS-74760616
...
22
Link, Front HUS-127218
...
23
Retainer, Spring HUS-4939M
...
24
Nut, Jam Hex 1/2-13 Unc HUS-73350800
...
25
Trunnion HUS-130171
...
26
Nut, Crownlock 1/2-13 Unc HUS-73680800
...
29
Trunnion Inf. Height HUS-150233
...
30
Nut, Special HUS-110807X
...
31
Washer 13/32 x 5/8 x 16 Ga. HUS-19131016
...
32
Spring, Compression Inf Hgt HUS-137150
...
33
Pin, Cotter 3/32 x 1/2 HUS-76020308
...
34
Rod, Adj Lift HUS-137167
...
35
Knob, Inf 3/8-16 Unc HUS-138057
...
38
Pointer, Height Indicator HUS-155097
...
39
Plug, Hole HUS-123935X
...
40
Screw 5/16-18 x 3/4 HUS-17060516
...
41
Nut, Crownlock 3/8-24 HUS-73540600
...
42
Washer 11/32 x 1-1/2 x 10 Ga. HUS-19112410
...
43
Scale, Indicator Height HUS-123934X
...
70
Nut, Hexflange Lock HUS-145212
...
72
Nut, Push Phos & Oil HUS-110452X
...
73
Nut Hex Jam 3/8-16 Unc HUS-73350600
