Husqvarna PRGT22H48A (2001) Tractor

Model: PRGT22H48A (2001)

Back To Assemblies

Save Part Not Listed?
product name

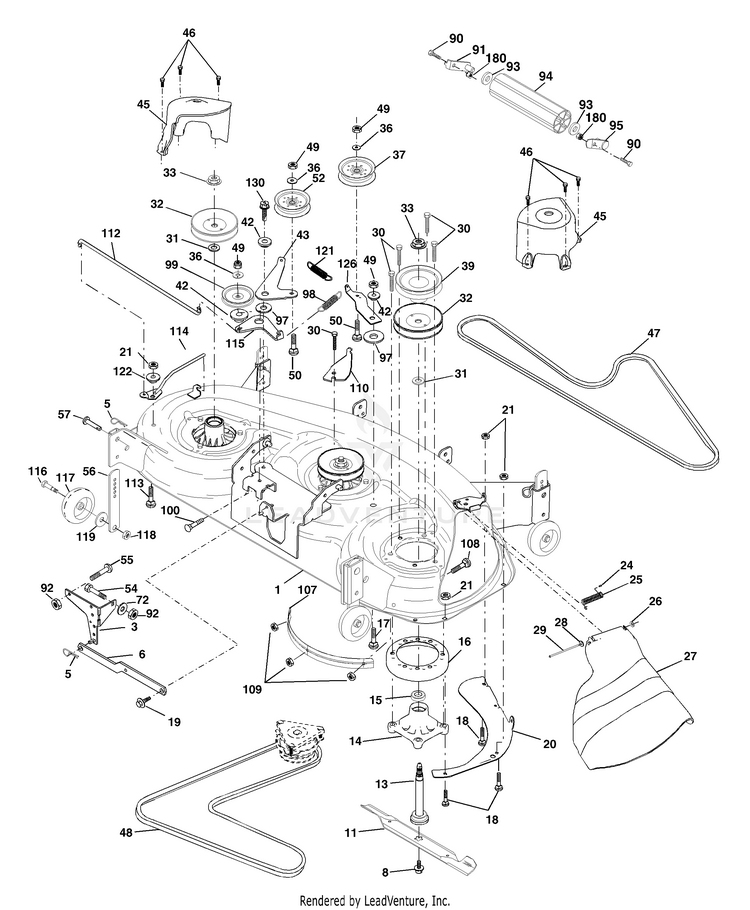

Mower Deck

...
...
1
Deck Weldment Mower 48 HUS-174348
...
3
Bracket Asm., Sway Bar HUS-178944
...
5
Retainer Spring HUS-4939M
...
6
Arm, Suspension, Rear (Sway Bar) HUS-130832
...
8
Bolt 7/16 Asm. Blade HUS-174365
...
11
Blade HUS-173920
...
13
Shaft Asm. w/Lower Bearing HUS-174360
...
14
Mandrel Asm. HUS-174358
...
15
Bearing, Ball, Mandrel HUS-110485X
...
16
Stripper Mandrel Deck HUS-174493
...
17
Bolt RDHD Sq Neck 3/8-16 x 1.25 HUS-72110610
...
18
Bolt, Carriage 5/16-18 x 5/8 HUS-72140505
...
19
Bolt, Hex Hd, Shoulder 5/16-18 HUS-132827
...
20
Baffle, Vortex Mower HUS-174378
...
21
Nut, Crownlock 5/16-18 UNC HUS-73680500
...
24
Cap, Sleeve HUS-105304X
...
25
Spring, Torsion HUS-178102
...
26
Nut, Push HUS-110452X
...
27
Deflector Shield HUS-174346X428
...
28
Washer 11/32 x 5/8 x 16 Ga. HUS-19111016
...
29
Rod,Hinge HUS-131491
...
30
Screw, Thdroll Washer Head HUS-157722
...
31
Washer, Spacer Mower Vented HUS-129963
...
32
Pulley, Mandrel HUS-177865
...
33
Nut, Flg. Top Lock Cntr. 9/16 HUS-178342
...
36
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
37
Pulley, Idler, Flat HUS-177968
...
39
Pulley, Idler, Driven HUS-174375
...
42
Spacer,Retainer HUS-122052X
...
43
Arm, Idler Secondary HUS-174373
...
45
Cover, Mandrel Deck HUS-174343
...
46
Screw, Thdroll. 1/4-20 x 5/8 HUS-137729
...
47
V-Belt, Mower, Secondary HUS-174369
...
48
V-Belt, Mower, Primary HUS-174368
...
49
Nut, Crownlock 3/8-16 UNC HUS-73680600
...
50
Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5 HUS-72110612
...
52
Pulley Idler Flat HUS-175820
...
56
Bar Pnt Adj. HUS-155986
...
57
Pin Head Rivet HUS-156941
...
90
Bolt Hex HD 5/16-18 x 1 HUS-74760516
...
91
Bracket Asm N Roller LH HUS-175384
...
93
Washer 17/32 x 7/8 x 16 Ga HUS-19171416
...
94
Roller Nose 48" HUS-176066
...
95
Bracket Asm N Roller RH HUS-175996
...
97
Washer Hardened HUS-133943
...
98
Spring Primary Drive HUS-174370
...
99
Pulley Idler "V" HUS-175080
...
100
Bolt RDHD Sqnk 3/8-16 UNC x 2 HUS-72110616
...
107
Baffle Vac Edge Mower HUS-175294
...
108
Bolt Carr. HUS-72110404
...
109
Nut Crownlock 1/4-20 HUS-73680400
...
110
Arm Spring Secondary HUS-175016
...
112
Link Tension Relief Lever HUS-174387
...
113
Bolt Carr. 5/16-18 x 1 HUS-72110508
...
114
Tension Asm. Relief Lever HUS-174384
...
115
Arm Spring Tension Relief HUS-174609
...
116
Bolt, Shoulder HUS-137644
...
117
Gauge Wheel HUS-133957
...
118
Nut, Centerlock 3/8-16 UNC HUS-73930600
...
119
Washer 3/8 x 7/8 x 14 Ga. HUS-19121414
...
121
Spring Secondary Drive HUS-174371
...
122
Bushing Pivot Tension Relief HUS-174606
...
126
Arm, Idler, Primary Deck HUS-174372
...
130
Screw 3/8-16 x 1.0 HUS-17060616
...
180
Nut Lock Hx 5/16-18 HUS-73800500
...
xx
Replacement Mower, Complete HUS-176149
...
xx
Mandrel Asm. Service (Includes Key Nos. 13-15 and 33) HUS-174356
