Husqvarna PRGT20H50B (2000) Tractor

Model: PRGT20H50B (2000)

Back To Assemblies

Save Part Not Listed?
product name

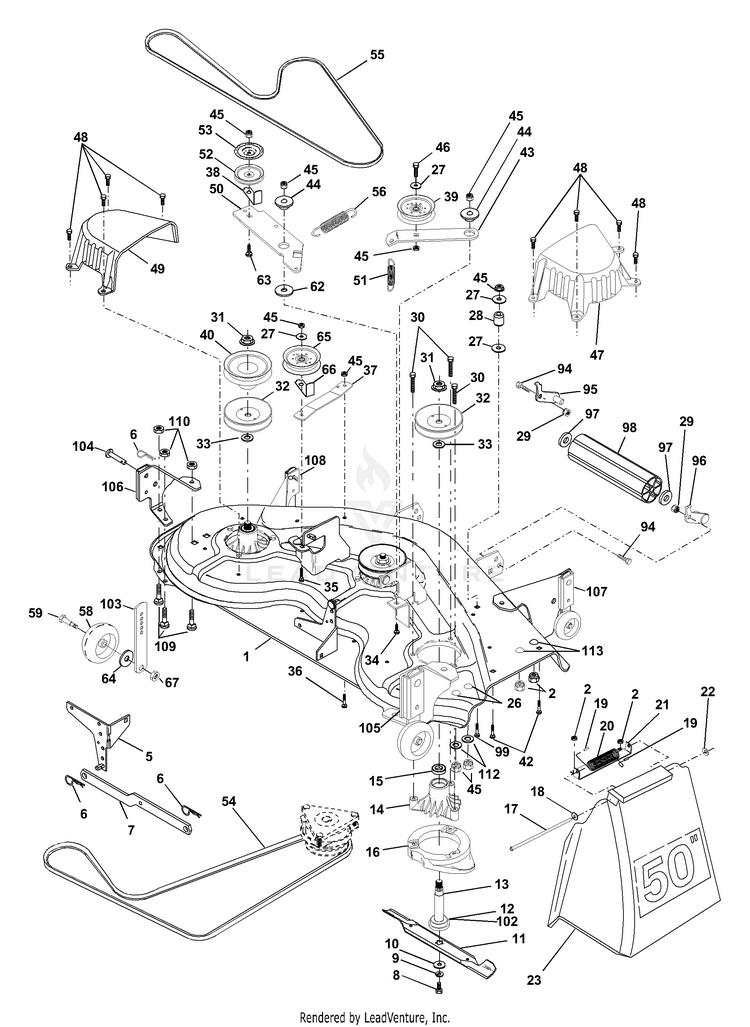

Mower Deck

...
...
1
Deck Asm., Mower 50" HUS-156990X421
...
2
Nut, Crownlock 5/16-18 HUS-73680500
...
5
Bracket Asm., Sway Bar HUS-138457
...
6
Retainer, Spring HUS-4939M
...
7
Arm Suspension, Rear HUS-130832
...
8
Bolt 3/8-24 x 1.25 Gr. 8 Patched HUS-850857
...
9
Washer, Lock Hvy 3/8 Unplated HUS-10030600
...
10
Washer, Hard Blade Mower Vented HUS-140296
...
11
Blade (3 Required) HUS-137380
...
12
Bearing, Ball #6204 (Mandrel) HUS-129895
...
13
Shaft Asm., W/Lower Brg (Includes Key No. 12) HUS-137553
...
14
Housing, Mandrel 50" Vent HUS-137152
...
15
Bearing, Ball Mandrel HUS-110485X
...
16
Stripper, Mower Vented HUS-140329
...
17
Rod, Hinge HUS-106735X
...
18
Washer 11/32 x 5/8 x 16 Ga. HUS-19111016
...
19
Cap Sleeve HUS-105304X
...
20
Spring, Torison Delector HUS-123713X
...
21
Bracket, Deflector HUS-137607
...
22
Nut, Push HUS-110452X
...
23
Shield, Deflector Mower HUS-110509X428
...
25
Washer 11/32 x 3/4 x 16 Ga. HUS-19111216
...
26
Bolt Rd Hd Sht Sqnk HUS-72110606
...
27
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
28
Spacer, Spring Stop Idler HUS-132823
...
29
Nut, Lock Hex W/Wsh 3/8-16 Unc HUS-73800600
...
30
Screw Thd Rolling Washer Head HUS-157722
...
31
Nut, Flg Top Lock Cntr 9/16 HUS-137266
...
32
Pulley, Mandrel HUS-153535
...
33
Washer, Spacer Mower Vented HUS-129963
...
34
Bolt, Carriage 3/8-16 x 1-1/4 HUS-72140610
...
35
Bolt, Carriage 3/8-16 x 2 HUS-72110616
...
36
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-72110608
...
37
Stiffener, Arm Idler HUS-137166
...
38
Keeper, Belt Idler HUS-156085
...
39
Pulley, Idler Flat HUS-131494
...
40
Pulley, Driven HUS-136572
...
42
Bolt, Carriage 5/16-18 Unc x 3/4 HUS-72140506
...
43
Arm, Idler Secondary HUS-136460
...
44
Spacer, Retainer HUS-122052X
...
45
Nut, Crownlock 3/8-16 Unc HUS-73680600
...
46
Bolt, Fin Hex 3/8-16 Unc x 1-3/4 HUS-74760628
...
47
Cover, Mandrel RH HUS-137200
...
48
Screw, Thd Roll 1/4-20 x 5/8 HUS-137729
...
49
Cover, Mandrel LH HUS-136574
...
50
Arm, Idler Primary HUS-137272
...
51
Spring, Secondary HUS-137273
...
52
Pulley, Idler V Groove HUS-139245
...
53
Shield, Idler HUS-137789
...
54
V-Belt, Mower Primary HUS-139573
...
55
V-Belt, Mower Secondary HUS-144959
...
56
Spring, Primary HUS-138687
...
58
Wheel, Gauge HUS-133957
...
59
Bolt, Shoulder HUS-137644
...
62
Washer Hardened HUS-133943
...
63
Bolt Carriage 3/8-16 x 1-1/2 HUS-72110612
...
64
Washer 3/8 x 7/8 x 14 Ga. HUS-19121414
...
65
Pulley Idler Flat Mower HUS-151831
...
66
Keeper, Belt Idler 50" Vent HUS-156009
...
67
Nut, Center Lock 3/8-16 HUS-73930600
...
94
Bolt H 3/8-16 x 1 HUS-74760616
...
95
Bracket, Asm. Noseroller LH HUS-132274
...
96
Bracket, Asm. Noseroller RH HUS-132273
...
97
Washer 17/32 x 7/8 x 16 Ga. HUS-19171416
...
98
Roller, Nose HUS-132264
...
99
Bolt, Carriage 3/8-16 x 1-3/4 Gr. 5 HUS-72110614
...
102
Washer Felt HUS-153390
...
103
Bar Adj. Gauge Wh. HUS-155986
...
104
Pin Head Rivot HUS-156941
...
105
Bracket Ga Wh Asm RH 50 HUS-156852
...
106
Bracket Ga Wh Asm LH 50 HUS-156853
...
107
Bracket Ga Wh Assy F RH 50 HUS-156854
...
108
Bracket Ga Wh Assy F LH 50 HUS-156856
...
109
Bolt Carraige 5/16- 18 x 5/8 HUS-72010505
...
110
Nut Crownlock 5/16-18 HUS-73980500
...
112
Washer 17/32 x 3/4 x 16 Ga. HUS-19171216
...
113
Bolt Carriage 5/16-Unc 1/2 HUS-72110504
...
xx
Mandrel Asm (Includes Key Nos. 8-10, 12-15, 31 and 33) HUS-143651
...
xx
Mower Asm Service (Std. Deck - Order separately all Nose Roller and all Gauge Wheel components) HUS-173532
