Husqvarna PRGT20H50A (2000) Tractor

Model: PRGT20H50A (2000)

Back To Assemblies

Save Part Not Listed?
product name

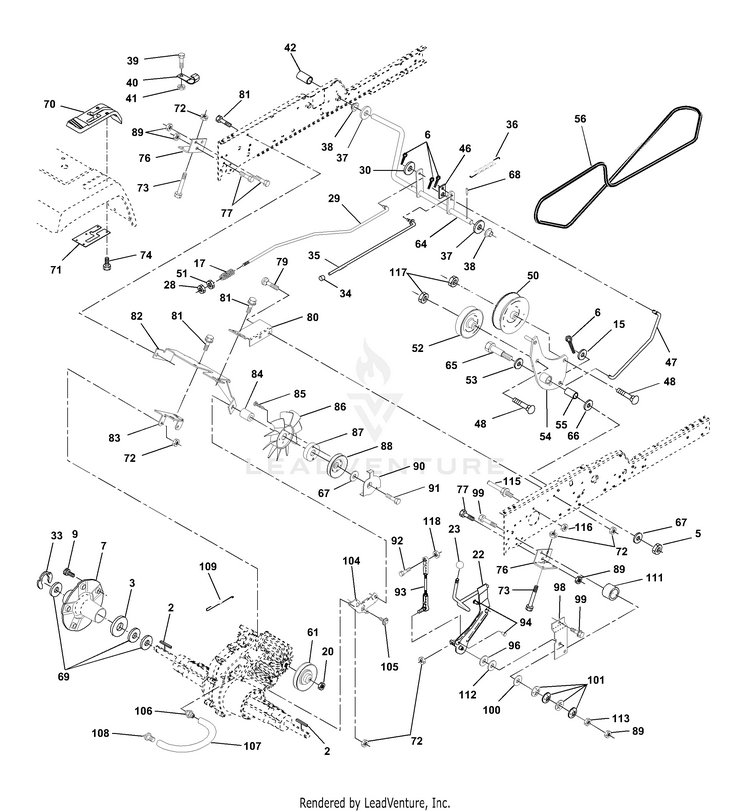

Ground Drive

...
...
2
Key 1/4 x 2.5 HUS-7070E
...
3
Washer Thrust Axle Harden HUS-7563R
...
5
Nut Crownlock 3/8-16 HUS-73680600
...
6
Pin Cotter 1/8 x 3/4 HUS-76020412
...
7
Wheel Hub Asm. HUS-140507
...
9
Bolt Hub HUS-140080
...
15
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
17
Spring Rod Brake HUS-140921
...
20
Nut Hex Jam Toplock 1/2-20 HUS-73940800
...
22
Shaft Arm Asm HUS-156103
...
23
Knob HUS-140845
...
28
Nut, Hex Jam 3/8-16 HUS-73350600
...
29
Brake Rod HUS-140494
...
30
Washer 13/32 x 1 x 14Ga HUS-19131616
...
33
Ring E HUS-12000053
...
34
Cap Plunger HUS-71673
...
35
Rod Parking Brake HUS-137648
...
36
Spring Extension HUS-149412
...
37
Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X
...
38
Nyliner HUS-150035
...
39
Screw Fin #10-24 x 1 HUS-74321016
...
40
Actuator Interlock Switch HUS-5304J
...
41
Nut Toplock #10-24 Unc HUS-73661000
...
42
Cover Pedal HUS-123533X
...
46
Retainer Spring HUS-145170
...
47
Clutch Rod HUS-138228
...
48
Bolt Carriage 3/8-16 x 1-1/2 Gr. 5 HUS-72110612
...
50
Pulley Idler Flat HUS-131494
...
51
Nut, Crownlock 3/8-16 HUS-73680600
...
52
Pulley Idler Grooved HUS-139123
...
53
Washer Hartdened HUS-207J
...
54
Arm Asm Idler Clutch 98 HUS-161590
...
55
Bearing, Idler HUS-105706X
...
56
V-Belt HUS-140218
...
58
Screw 3/8-16 x 1-1/2 HUS-17060624
...
61
Pullery Transaxle HUS-140488
...
64
Shaft Asm Brake Parking Clutch HUS-154752
...
65
Bolt Shoulder HUS-67609
...
66
Washer Hardened HUS-140296
...
67
Washer 13/32 x 13/16 x 12 Ga HUS-19131312
...
68
Pin Roll HUS-5142H
...
69
Washer HUS-123800X
...
70
Console Hydro Fender HUS-164892X428
...
71
Plate Console Shift HUS-151179
...
72
Locknut Hex W/Washer Insert HUS-73800500
...
73
Bolt Hex Flghd 5/16-18 x 3 Gr. 5 HUS-74490548
...
74
Screw, Hex Wsh Hi-Lo 1/4-1/2 HUS-142432
...
76
Bracket Transaxle HUS-140481
...
77
Bolt Fin Hex 7/16-14 x 1 HUS-74760716
...
79
Bolt Carriage 5/16-18 x 5/8 HUS-72110505
...
80
Bracket Torque RH HUS-140484
...
81
Screw 3/8-16 x 3/4 HUS-17060612
...
82
Bracket Mount Torque/Fan HUS-150586
...
83
Strap Torque Mid HUS-140479
...
84
Spacer HUS-140490
...
85
Screw #10-24 x 1-1/4 HUS-17541020
...
86
Fan 7" Hydro HUS-140462
...
87
Adapter Fan HUS-140491
...
88
Pully Idler V-Groove Flange HUS-161592
...
89
Nut, Crownlock 7/16-14 HUS-73680700
...
90
Keeper Belt HUS-140489
...
91
Screw Thdrol 3/8-16 x 2-3/4 HUS-17490644
...
92
Bolt Fin Hex 5/16-18 x 1.75 HUS-74760520
...
93
Link Shift Asm HUS-140502
...
94
Fastner Christmas Tree HUS-133835
...
96
Washer Nickel Plated HUS-141103
...
98
Bracket Shift HUS-141004
...
99
Screw 3/8-16 x 1-1/2 HUS-17060624
...
100
Washer Compression HUS-126881X
...
101
Washer Bellville HUS-156106
...
104
Bracket Idler HUS-140480
...
105
Screw Tap 1/4-20 x 1/2 HUS-17580408
...
106
O-Ring Asm Hydro Gear HUS-142918
...
107
Line Fuel Hydro 15" VGT Serv HUS-154739
...
108
Cap Asm Vent Hydro Gear HUS-142917
...
109
Spring Return Brake HUS-140929
...
111
Spacer Shift Lever VGTH HUS-156240
...
112
Washer Nylon High Temp HUS-156104
...
113
Nut Hex ASF 7/16-14 Unc HUS-73220700
...
115
Keeper Belt T/A GND DR LR HUS-123405X
...
116
Nut Lock Hex Flange 5/16-18 HUS-73900500
...
117
Nut Lock Flg. 3/8-16 Unc HUS-73900600
