Husqvarna PRGT20H50A (2000) Tractor

Model: PRGT20H50A (2000)

Back To Assemblies

Save Part Not Listed?
product name

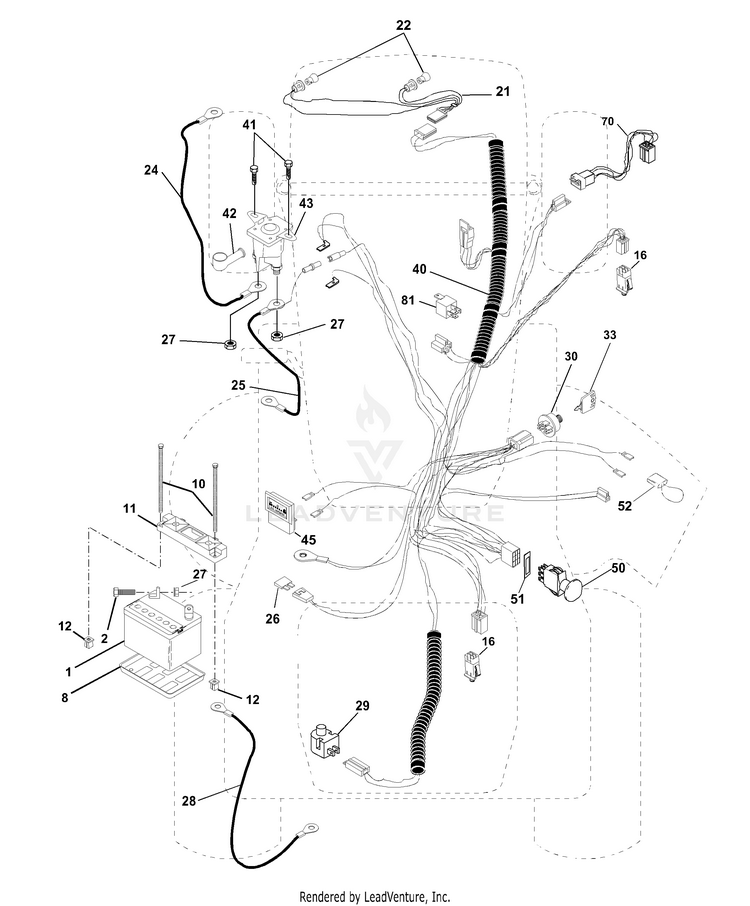

Electrical

...
...
1
Battery HUS-144927
...
2
Bolt Hex Head 1/4-20 x 3/4 HUS-74760412
...
8
Tray, Battery HUS-7603J
...
10
Bolt, Battery Front 1/4-20 x 7.5 Zinc HUS-145211
...
11
Holddown Battery Front Mount HUS-150109
...
12
Nut, Push Nylon 1.4" Battery Front HUS-145769
...
16
Switch Interlock Push-In HUS-153664
...
21
Harness Socket Light w/4152J HUS-166182
...
22
Bulb Light HUS-4152J
...
24
Cable, Battery HUS-4014J
...
25
Cable, Battery HUS-146686
...
26
Fuse HUS-108824X
...
27
Nut Keps Hex 1/4-20 HUS-73510400
...
28
Cable,Ground HUS-170697
...
29
Switch, Plunger Normal Op Olive HUS-160784
...
30
Switch, Ign HUS-163968
...
33
Key HUS-140401
...
40
Harness Ign. HUS-170238
...
41
Screw 1/4-20 x 1/2 HUS-17720408
...
42
Cover, Terminal Red HUS-131563
...
43
Solenoid HUS-145673
...
45
Ammeter HUS-122822X
...
50
Switch, PTO HUS-170057
...
51
Ring Retainer PTO HUS-140405
...
52
Protection, Wire, Loop HUS-141940
...
70
Harness Engine HUS-170251
...
81
Relay Asm. HUS-109748X
