Husqvarna PRGT2046B (2001) Tractor

Model: PRGT2046B (2001)

Back To Assemblies

Save Part Not Listed?
product name

Ground Drive

...
...
3
Washer, Thrust, Axle HUS-7563R
...
4
Screw Thdrol 5/16-18 x 3/4 HUS-17490508
...
5
Nut, Crownlock 3/8-16 HUS-73680600
...
6
Pin, Cotter HUS-76020412
...
7
Wheel, Hub Assembly HUS-149176
...
8
Klip, Ring HUS-12000034
...
9
Bolt, Hub HUS-140080
...
10
Disc, Brake HUS-142509
...
11
Yoke, Brake Disc HUS-136927
...
12
Nutlock 1/2-20 Unf HUS-73750800
...
13
Washer, Special HUS-139419
...
14
Bushing HUS-138901
...
15
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
16
Set, Screw 1/4-28 x 3/4 HUS-143012
...
17
Spring HUS-126909X
...
18
Lever, Brake HUS-137104
...
19
Cam, Brake Disc HUS-136926
...
21
Screw, Flat Head 1/4-28 x 3/4 HUS-23260412
...
22
Gearshift, Lever Assembly HUS-633A109
...
23
Knob HUS-106932X
...
24
Support, Puck Brake HUS-136925
...
25
Puck, Brake Top HUS-136923
...
26
Spring, Return HUS-137552
...
27
Screw, Hex Wsh Thd. 5/16-18 x 1-3/4 HUS-17490528
...
28
Nut, Hex Jam 3/8-16 HUS-73350600
...
29
Brake, Rod HUS-137213
...
30
Washer 13/32 x 1 x 16 Ga. HUS-19131616
...
34
Cap, Plunger HUS-71673
...
35
Rod, Parking Brake HUS-137648
...
36
Spring, Drive Ground HUS-149412
...
37
Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X
...
38
Nyliner HUS-150035
...
39
Screw, Fin. #10-24 x 1 HUS-74321016
...
40
Actuator, Interlock Switch HUS-178575
...
41
Nut Centerlock 10-24-Umc HUS-73931000
...
42
Cover, Pedal HUS-8883R
...
46
Retainer, Spring HUS-145170
...
47
Clutch Rod HUS-138228
...
48
Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5 HUS-72110612
...
50
Pulley, Idler, Flat HUS-131494
...
51
Nut, Crownlock 3/8-16 UNC HUS-73800600
...
52
Pulley, Idler, Grooved HUS-139123
...
53
Washer, Hardened HUS-207J
...
54
Clutch, Arm Assembly HUS-161590
...
55
Bearing, Idler HUS-105706X
...
56
V-Belt HUS-137153
...
57
Bracket, Shift Rod, Hi-Lo HUS-141756
...
59
Shift Rod, Hi-Lo HUS-122253X
...
60
Spring Clip, Connecting Link HUS-122268X
...
61
Pulley, Transaxle HUS-137524
...
62
Washer, Lock 7/16 HUS-10040700
...
63
Bolt, Fin Hex 7/16-14 x 1-1/4 HUS-74760720
...
64
Shaft, Clutch/Brake Pedal HUS-154752
...
65
Bolt, Shoulder HUS-67609
...
66
Washer, Hardened HUS-140296
...
67
Washer, Flat HUS-19131312
...
68
Pin, Roll HUS-5142H
...
69
Hub, Cover HUS-136327
...
117
Nut, Lock Flg. 3/8-16 Unc HUS-73900600
...
150
Key, Woodruff HUS-9858M1

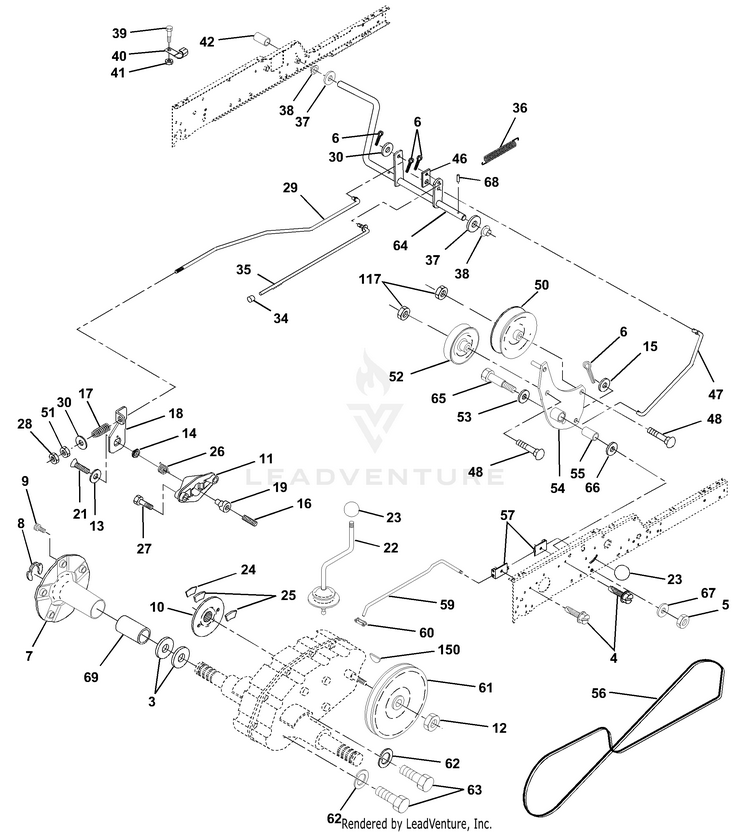

Schematic Image Zoomed
