Husqvarna PRGT2046B (2001) Tractor

Model: PRGT2046B (2001)

Back To Assemblies

Save Part Not Listed?
product name

Mower Deck

...
...
1
Deck Weldment HUS-156833
...
3
Bracket Asm., Sway Bar HUS-138457
...
5
Retainer Spring HUS-4939M
...
6
Arm, Suspension, Rear (Sway Bar) HUS-130832
...
8
Bolt, Patched 3/8-24 x 1-1/4 Gr. 8 HUS-850857
...
9
Washer, Lock Hvy., Unplated 3/8 HUS-10030600
...
10
Washer, Hard Blade, Mower Vented HUS-140296
...
11
Blade, Hi Performance HUS-176084
...
11
Blade, Mulching HUS-152443
...
13
Shaft Asm. w/Lower Bearing HUS-137553
...
14
Housing, Mandrel HUS-137152
...
15
Bearing, Ball, Mandrel HUS-110485X
...
16
Stripper, Mower Round HUS-174493
...
18
Bolt, Carriage 5/16-18 x 5/8 HUS-72140505
...
19
Bolt, Hex Head, Shoulder 5/16-18 HUS-132827
...
20
Baffle, Vortex Mower 46" HUS-145055
...
21
Nut, Crownlock 5/16-18 UNC HUS-73680500
...
22
Stiffiner, Bracket HUS-134753X421
...
23
Bracket, Deflector HUS-131267
...
24
Cap, Sleeve HUS-105304X
...
25
Spring, Torsion, Deflector HUS-149287
...
26
Nut, Push HUS-110452X
...
27
Deflector Clipping 46" Blk HUS-166883X428
...
28
Washer 11/32 x 5/8 x 16 Ga. HUS-19111016
...
29
Rod, Hinge HUS-131491
...
30
Screw, Thdroll Wsh Hd HUS-157722
...
31
Washer, Spacer Mower Vented HUS-129963
...
32
Pulley, Mandrel HUS-173434
...
33
Nut, Flg. Top Lock HUS-178342
...
34
Anchor, Spring Deck 46" HUS-144945
...
35
Screw, Thdroll 3/8-16 x 1-3/4 Tytt HUS-17490628
...
36
Washer 13/32 x 13/16 x 16 Ga. HUS-19131316
...
37
Pulley, Idler, Flat HUS-173438
...
38
Keeper, Belt, Idler HUS-173900
...
39
Pulley, Idler, Driven HUS-173899
...
40
Spring, Secondary 44/46/50 Vent HUS-137273
...
41
Screw, 3/8-16 x 1-1/4 Tytt HUS-17060620
...
42
Spacer, Retainer HUS-122052X
...
43
Arm, Idler Secondary HUS-144949
...
44
Washer,Hardened HUS-133943
...
45
Cover, Mandrel Deck HUS-145059
...
46
Screw, Thdroll. 1/4-20 x 5/8 HUS-137729
...
47
V-Belt, Mower, Secondary HUS-144959
...
48
V-Belt, Mower, Primary HUS-148763
...
49
Nut, Crownlock 3/8-16 UNC HUS-73680600
...
50
Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5 HUS-72110612
...
52
Pulley Idler 46 Pri Drive HUS-173901
...
56
Bar Adjusting Guage Wheel HUS-155986
...
57
Pin Head Rivet HUS-156941
...
72
Washer 13/32 x 1 x 16 Ga. HUS-19131616
...
101
Cover Mulcher HUS-145579
...
102
Screw Pan Head Phillip 10-24 x 5/8 HUS-71081010
...
103
Washer Lock #10 HUS-70071000
...
104
Washer #10 HUS-19061216
...
105
Latch Asm Mulch/Bagger HUS-160793
...
106
Nut Weld HUS-2029J
...
116
Bolt, Shoulder HUS-137644
...
117
Gauge Wheel, Wide HUS-133957
...
118
Nut, Centerlock 3/8-16 UNC HUS-73930600
...
119
Washer 3/8 x 7/8 x 14 Ga. HUS-19121414
...
126
Arm, Idler, Primary Deck 46" HUS-144948
...
127
Pulley Idler V-Gr. Plated 4.25 HUS-173902
...
xx
Deck Complete (Std. Deck-Order separately mulcher plate and gauge wheel components Key Nos. 101 - 106 and 116 - 118) HUS-173559
...
xx
Mandrel Asm. 44"/50" service (Includes Key Nos. 8 - 10, 13 - 15, 31 and 33) HUS-143651

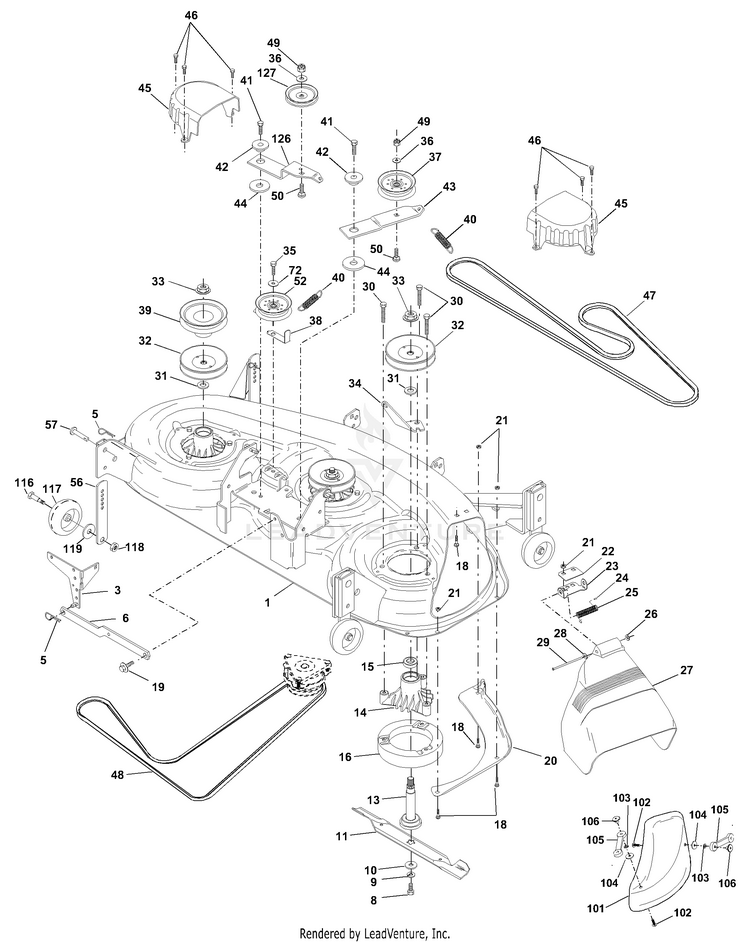

Schematic Image Zoomed
