Husqvarna PRGT2046B (2001) Tractor

Model: PRGT2046B (2001)

Back To Assemblies

Save Part Not Listed?
product name

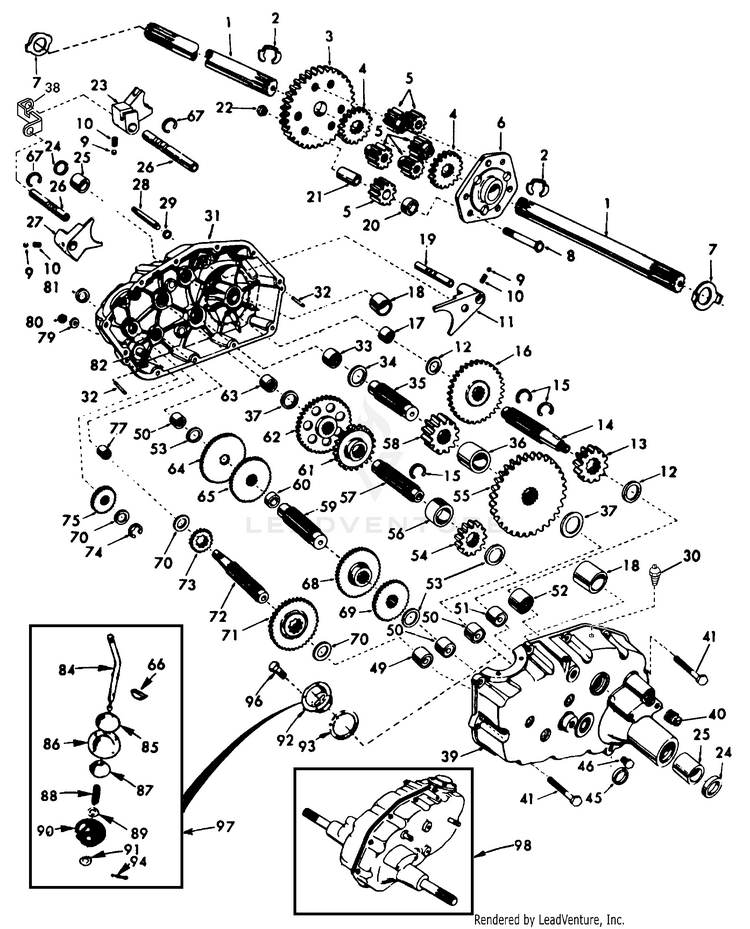

Transaxle

...
...
1
Axle Shaft HUS-4197R
...
2
Retaining Ring HUS-12000034
...
3
Final Drive Gear HUS-4199R
...
4
Differential Gear HUS-4216R
...
5
Differential Pinion HUS-4215R
...
6
Differential Carrier HUS-4217R
...
7
Axle Thrust Washer HUS-174728
...
8
Bolt, Hex Head 3/8-24 x 3-1/4 (1" Thread Length) HUS-74020652
...
9
Steel Ball HUS-7392M
...
10
Spring Shift Fork Detent HUS-137261
...
11
Shift Fork, High-Low Range HUS-4985R
...
12
Thrust Bearing Race HUS-6266H
...
13
4th Reduction Pinion HUS-4212R
...
14
Shaft, Brake HUS-137125
...
15
Snap Ring, Crescent Type HUS-6276H
...
16
High-Low Range Gears HUS-633A63
...
17
Needle Bearing HUS-8118M
...
18
Sintered Iron Bearing HUS-8740H1
...
19
Shift Fork Shaft, High-Low Range HUS-122238X
...
20
Differential Pinion Spacer HUS-4218R
...
21
Differential Pinion Bushing HUS-6252H1
...
22
Gripco Centerlock Nut 3/8-24 HUS-7810H
...
23
Shift Fork, R.H. HUS-6262H
...
24
Oil Seal HUS-7393R
...
25
Sintered Iron Bearing HUS-992R1
...
26
Shift Fork Shaft HUS-139111
...
27
Shift Fork, L.H. HUS-4986R
...
28
Shift Shaft, High-Low Range HUS-122254X
...
29
Oil Seal HUS-6269H
...
30
Pressure Relief Valve HUS-5855H
...
31
Gearcase, Reverse Idler Shaft and Bearings, R.H. (Includes Key No.'s 17, 18, 25, 33, 50, 3, 77 and 82) HUS-174731
...
32
Dowel Pin HUS-6277H
...
33
Needle Bearing HUS-4225R
...
34
Thrust Bearing Race HUS-7396H
...
35
4th Reduction Gear Shaft HUS-4198R
...
36
4th Reduction Gear Spacer HUS-4200R
...
37
Thrust Bearing Race HUS-7395H
...
38
Gate, Lower, Shift HUS-160789
...
39
Gearcase and Bearings, L.H. (Includes Key Numbers 18, 25, 49, 50 (2), 51 and 52) HUS-174729
...
40
Pipe Plug 1/2-14 N.P.T. HUS-13320400
...
41
Bolt, Hex 5/16-18 UNC x 1-1/4 HUS-17580520
...
45
Oil Seal HUS-6271H
...
46
Pipe Plug 1/4-18 N.P.T. HUS-13060200
...
49
Needle Bearing HUS-4895H
...
50
Needle Bearing HUS-4222R
...
51
Needle Bearing HUS-1529R
...
52
Needle Bearing HUS-8119M
...
53
Thrust Bearing Race HUS-4220R
...
54
3rd Reduction Pinion, Low HUS-4209R
...
55
4th Reduction Gear HUS-4213R
...
56
3rd Reduction Pinion Spacer HUS-4442R
...
57
2nd Reduction Gear Shaft HUS-4195R
...
58
Final Drive Pinion HUS-4214R
...
59
1st Reduction Gear Shaft HUS-4194R
...
60
1st Reduction Shaft Spacer HUS-7528R
...
61
3rd Reduction Pinion High HUS-4208R
...
62
2nd Reduction Gear HUS-4207R
...
63
Needle Bearing HUS-7398H
...
64
Low Speed Gear and 2nd Reduction Pinion Cluster HUS-4203R
...
65
Reverse Gear HUS-4204R
...
66
Key, Hi-Pro 1/8 x 17/32 HUS-2898J
...
67
Klip Ring HUS-12000033
...
68
Intermediate Speed Gear HUS-4205R
...
69
High Speed Gear HUS-4206R
...
70
Thrust Bearing Race HUS-1370H
...
71
Intermediate and High Speed Cluster Pinions HUS-633A69
...
72
Input Shaft HUS-139120
...
73
Low Speed Pinion HUS-4201R
...
74
E-Ring HUS-12000008
...
75
Reverse Idler Gear HUS-1153R
...
77
Needle Bearing HUS-6803J
...
79
Sealing Washer HUS-1167R
...
80
Nut, Hex, Jam 7/16-20 HUS-73360700
...
81
Oil Seal HUS-6270H
...
82
Reverse Idler Shaft HUS-136984
...
84
Gearshift Lever, Bent HUS-5384J
...
85
Gearshift Cap HUS-2978J
...
86
Gearshift Ball Cover and Pin HUS-633A85
...
87
Shift Lever Guide Ball, Keyed HUS-8739H1
...
88
Spring HUS-4924H
...
89
Washer 15/32 x 15/16 x 16 Ga. HUS-19151516
...
90
Shift Mechanism Seal HUS-110542X
...
91
Washer 9/16 x 15/16 x 12 Gauge HUS-19181511
...
92
Gearshift Gate and Reinforcement HUS-75J
...
93
Shift Ball Cover Gasket HUS-6274H
...
94
Cotter Pin 1/8 x 3/4 HUS-76020412
...
96
Screw, Hex, Washer, HD. HUS-159783
...
97
Gearshift Lever Assembly HUS-633A109
...
98
Transaxle, 6 Speed, Complete Assembly HUS-174742
