Husqvarna PR624, 96192004200 (2010-04) Snow Thrower

Model: PR624, 96192004200 (2010-04)

Back To Assemblies

Save Part Not Listed?
product name

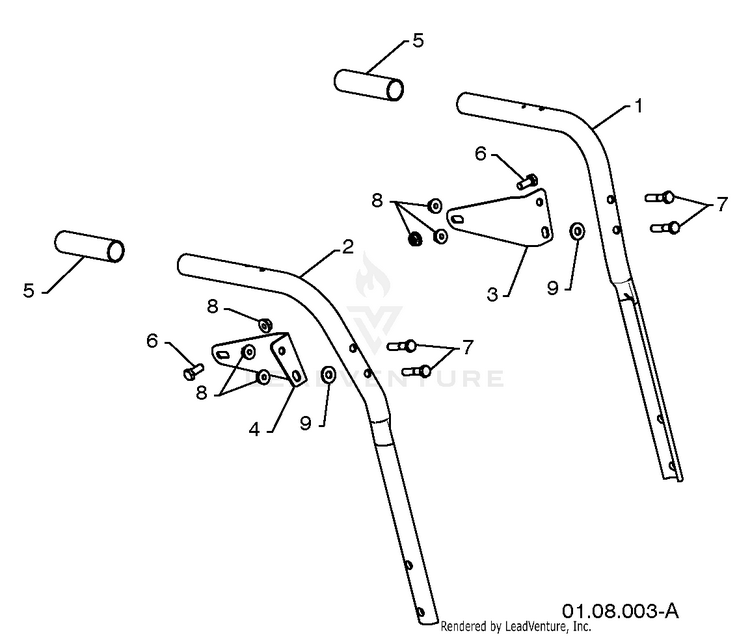

Handles

...
...
1
PLOW HANDLE LH HUS-419800X431
...
2
PLOW HANDLE RH HUS-419801X431
...
3
PANEL BRACKET LH HUS-196944X431
...
4
PANEL BRACKET RH HUS-196943X431
...
5
HANDLE GRIP HUS-199513
...
6
SCREW 5/16-18 X .750 HUS-74780512
...
7
SCREW 5/16-18 X 1.50 HUS-74780524
...
8
NUT 5/16-18 HUS-751153
...
9
WASHER HUS-155415
