Husqvarna PR624, 96192004200 (2010-04) Snow Thrower

Model: PR624, 96192004200 (2010-04)

Back To Assemblies

Save Part Not Listed?
product name

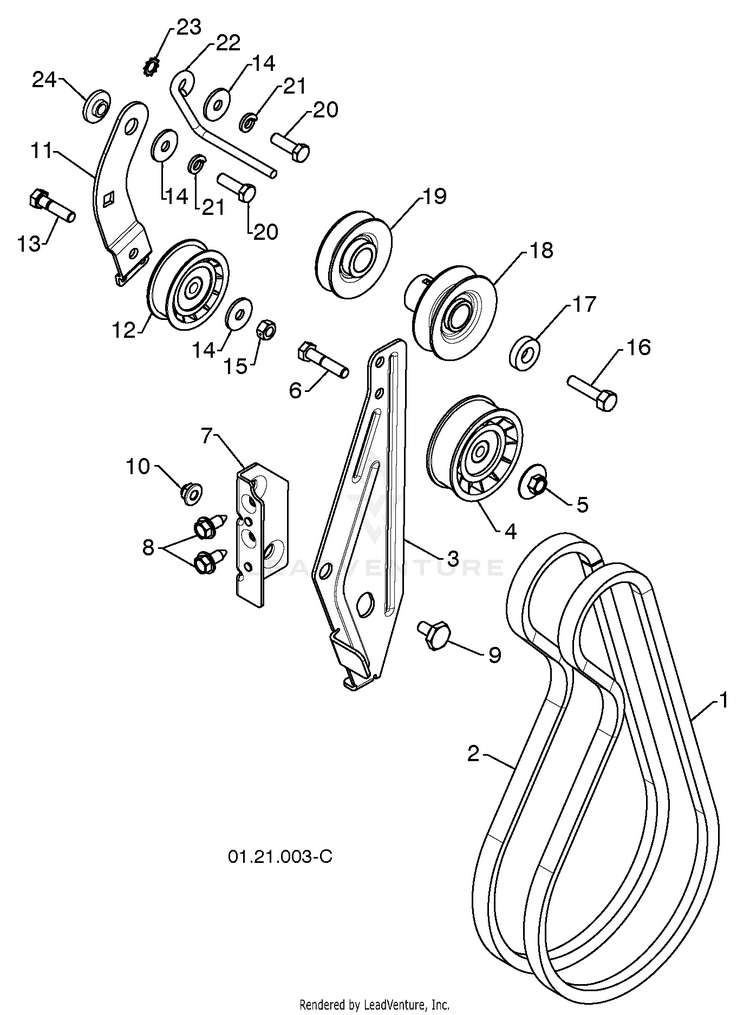

Chassis / Engine / Pulleys

...
...
1
IMPELLER BELT HUS-408007
...
2
TRACTION BELT HUS-419744
...
3
IDLER ARM BRACKET HUS-423723X431
...
4
IDLER PULLEY HUS-180523
...
5
NUT 5/16-18 HUS-426589
...
6
SCREW 5/16-18 X 1 .50 HUS-74780524
...
7
IDLER BRACKET HUS-423990X431
...
8
SCREW 5/16-18 X .625 HUS-428867
...
9
SHOULDER BOLT 5/16-18 X .500 HUS-424297
...
10
NUT 5/16-18 NYLOCK HUS-751153
...
11
TRACTION IDLER ARM HUS-187786
...
12
TRACTION PULLEY HUS-180522
...
13
SCREW 5/16-18 X 1 .00 HUS-74780520
...
14
WASHER HUS-59289
...
15
NUT 5/16-18 HUS-73800500
...
16
SCREW 3/8-24 X 1.375 HUS-851084
...
17
WASHER HUS-400026
...
18
PULLEY ENG IMPELLER HUS-426491
...
19
PULLEY ENG TRACTION HUS-426490
...
20
SCREW 5/16-18 X 1 .00 HUS-74610516
...
21
LOCKWASHER 5/16 HUS-10040500
...
22
BELT GUIDE HUS-155452
...
23
LOCKWASHER 5/16 HUS-11050500
...
24
IDLER BUSHING HUS-175331
