Husqvarna PR624, 96192004200 (2010-04) Snow Thrower

Model: PR624, 96192004200 (2010-04)

Back To Assemblies

Save Part Not Listed?
product name

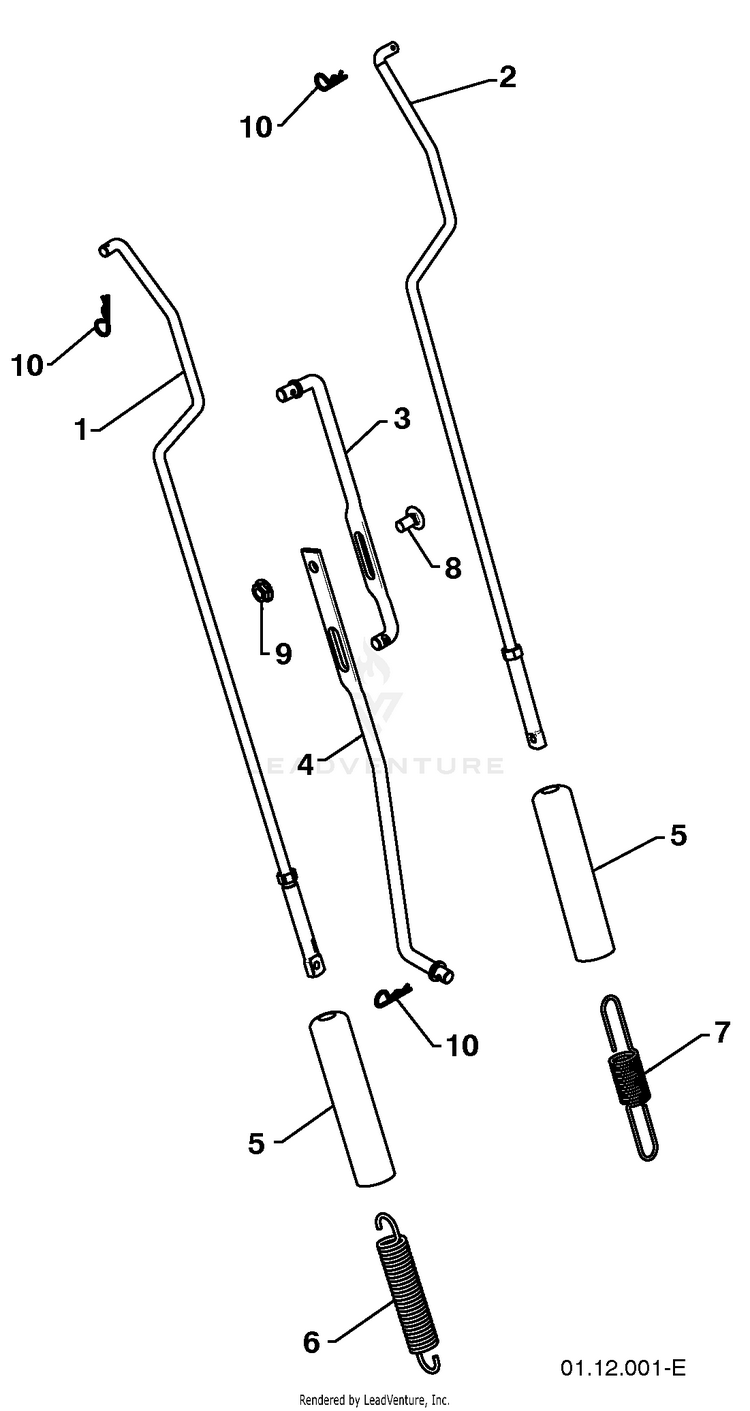

Handles

...
...
1
IMPELLER ROD HUS-180480
...
2
TRACTION ROD HUS-405740
...
3
SHIFTER ROD TOP HUS-180445
...
4
SHIFTER ROD BOTTOM HUS-187716
...
5
SPRING SLEEVE HUS-180447
...
6
IMPELLER SPRING HUS-178669
...
7
TRACTION SPRING HUS-180926
...
8
CARRIAGE BOLT 5/16-18 X .75 HUS-72270505
...
9
NUT 5/16-18 HUS-155377
...
10
RETAINER HUS-169675
