Husqvarna PR624, 96192004200 (2010-04) Snow Thrower

Model: PR624, 96192004200 (2010-04)

Back To Assemblies

Save Part Not Listed?
product name

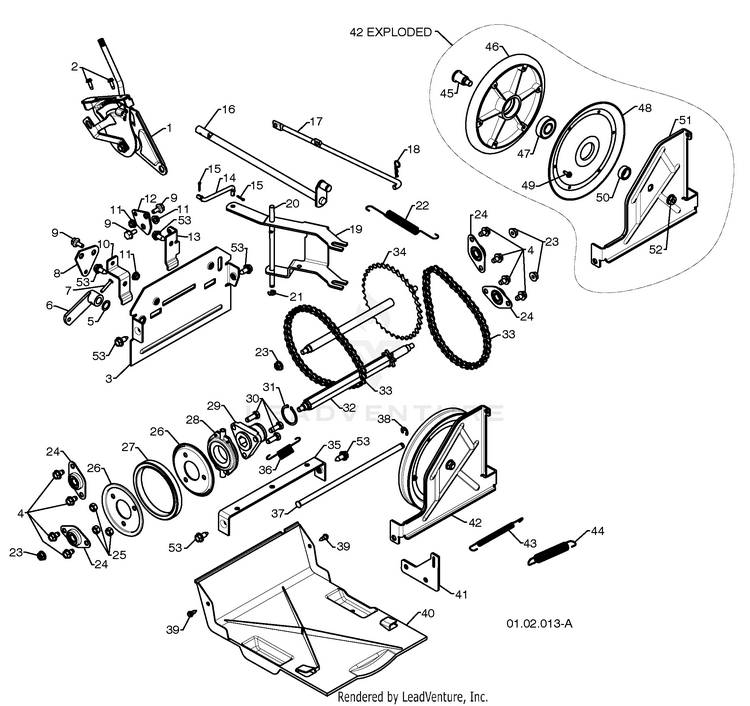

Drive

...
...
1
SPEED SELECTOR ASSEMBLY HUS-198875
...
2
SCREW 10-24 X .625 HUS-17501010
...
3
END PLATE HUS-402685X421
...
4
SCREW 5/16-18 X .50 HUS-17490508
...
5
WASHER HUS-57079
...
6
CONTROL ARM HUS-405485
...
7
CLEVIS PIN HUS-198580
...
8
SHIFTER PLATE HUS-403097X431
...
9
SHOULDER BOLT HUS-402881
...
10
SHIFTER BRACKET HUS-403096X431
...
11
NUT 1/4-20 HUS-191730
...
12
CLUTCH PLATE HUS-402856X431
...
13
CLUTCH BRACKET HUS-416717X431
...
14
SHIFTER LINK HUS-187101
...
15
RETAINER HUS-700279
...
16
CONTROL SHAFT HUS-427542
...
17
CLUTCH ROD HUS-402568
...
18
RETAINER HUS-169675
...
19
SHIFTER YOKE HUS-401732
...
20
PIVOT ROD HUS-402310
...
21
RETAINER HUS-12000036
...
22
RETURN SPRING HUS-402878
...
23
NUT 5/16-18 HUS-751153
...
24
BEARING HUS-408981
...
25
NUT 5/16-18 HUS-73930500
...
26
RUBBER WHEEL PLATE HUS-198176X431
...
27
RUBBER RING HUS-179831
...
28
BEARING HUS-175344
...
29
WHEEL HUB HUS-178613
...
30
SCREW 5/16-18-.875 HUS-74760514
...
31
RETAINER RING HUS-12000012
...
32
SPROCKET SHAFT HUS-402187
...
33
CHAIN HUS-401619
...
34
SPROCKET WELDMENT HUS-417234
...
35
SHIFTER BRACKET HUS-401984X431
...
36
SPRING HUS-180135
...
37
PLATE PIVOT ROD HUS-402652
...
38
E-RING .375 HUS-428288
...
39
SHOULDER SCREW HUS-184471
...
40
BOTTOM PAN HUS-410877
...
41
SPRING BRACKET HUS-413429X431
...
42
DRIVE PLATE ASSEMBLY HUS-402689
...
43
IDLER SPRING HUS-414557
...
44
IDLER SPRING HUS-178828
...
45
PULLEY SHAFT HUS-402504X008
...
46
DRIVE PLATE HUS-401820
...
47
BEARING HUS-198791
...
48
PULLEY HALF HUS-402393
...
49
SCREW 10-24 X .50 HUS-17541008
...
50
SPACER BEARING HUS-402511
...
51
SWING PLATE HUS-418894X431
...
52
NUT 3/8-16 HUS-132010
...
53
SCREW 5/16-18 X .750 HUS-428867
