Husqvarna PR624, 96192004200 (2010-04) Snow Thrower

Model: PR624, 96192004200 (2010-04)

Back To Assemblies

Save Part Not Listed?
product name

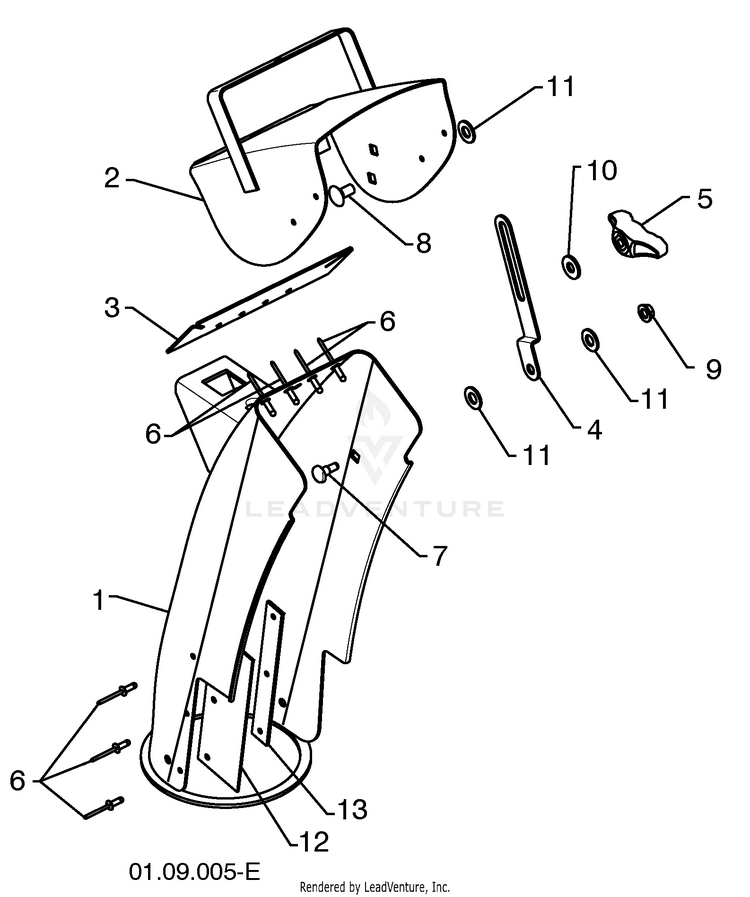

Control Panel / Chute

...
...
1
CHUTE WELDMENT HUS-435023X421
...
2
DEFLECTOR WELDMENT HUS-178633X421
...
3
DEFLECTOR SEAL HUS-420325
...
4
STRAP HUS-179096X421
...
5
KNOB BLACK HUS-189713X428
...
6
POP RIVET HUS-128415
...
7
SHOULDER BOLT 1/4-20 X .704 HUS-185600
...
8
CARRIAGE BOLT 5/16-18 X .625 HUS-72270505
...
9
NUT 1/4-20 HUS-191730
...
10
WASHER HUS-155415
...
11
PLASTIC WASHER HUS-179246
...
12
CHUTE SNOW SHIELD HUS-430324
...
13
SHIELD RETAINER STRAP HUS-419822X431
