product name

Husqvarna PR22H48STA (2001) Tractor

Model: PR22H48STA (2001)

Back To Assemblies

Save Part Not Listed?
product name

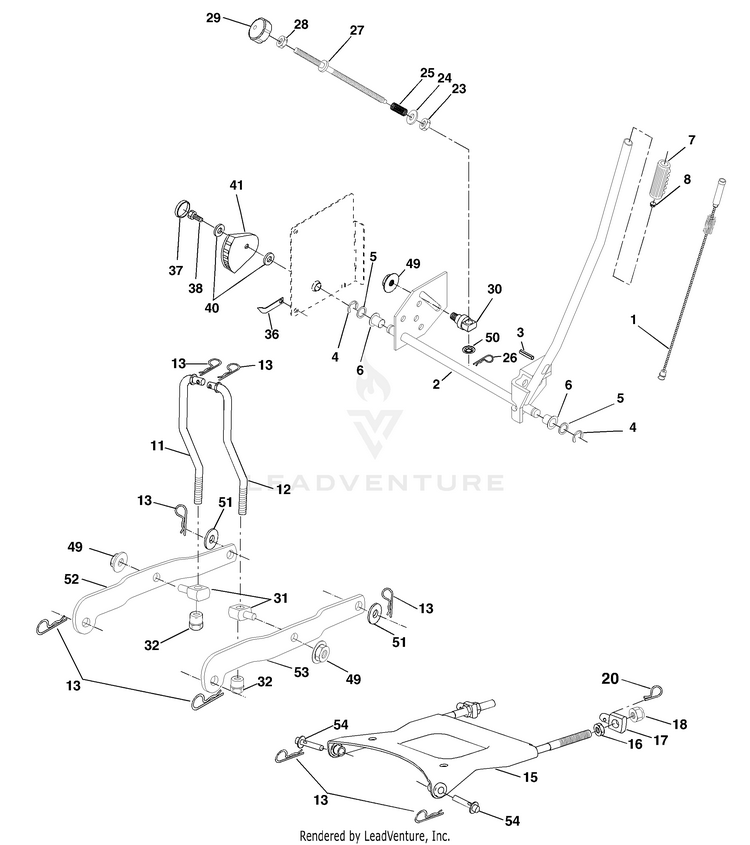

Mower Lift

...
...
1
Wire Asm Inner/Sprg W/plunger HUS-159461
...
2
Shaft Asm Lift RH w/Inf HUS-159476
...
3
Pin Groove HUS-138284
...
4
E Ring #5133-62 HUS-12000002
...
5
Washer 21/32 X 1 X 21 Ga HUS-19211621
...
6
Bearing Nylon Blk 629 Id HUS-120183X
...
7
Grip Handle HUS-125631X
...
8
Button Plunger HUS-170770
...
11
Link Lift LH HUS-175370
...
12
Link Lift RH HUS-175371
...
13
Retainer Spring HUS-4939M
...
15
Plate Assembly Susp. Front HUS-175562
...
16
Nut Jam Hex 1/2-13 Unc HUS-73350800
...
17
Trunnion Front Susp. HUS-175689
...
18
Nut Lock w/Wsh 1/2-13unc HUS-73800800
...
20
Retainer Spring HUS-163552
...
23
Nut Special HUS-110807X
...
24
Washer 13/32 X 5/8 X 16 Ga HUS-19131016
...
25
Spring HUS-164024
...
26
Retainer Clip HUS-169484
...
27
Rod Adj Lift HUS-164543
...
28
Nut Hex Jam 3/8-16 Unc HUS-73350600
...
29
Knob Inf 3/8-16 Unc Blk W/sym HUS-138057
...
30
Trunnion Infin Height HUS-150233
...
31
Trunnion Susp. Arm HUS-176205
...
32
Nut Lift Link 7/16-20 HUS-175994
...
36
Pointer Height Indicator HUS-155097
...
37
Plug Hole Blk 1.485/1.515 Dia. HUS-123935X
...
38
Screw 5/16-18 x 1 HUS-17060516
...
40
Washer 11/32 x 1-1/2 10 Ga. HUS-19112410
...
41
Indicator Height STLT HUS-155098
...
49
Nut Hex Flange Lock HUS-145212
...
50
Nut PUsh Phos & Oil HUS-110452X
...
51
Washer 17/32 x 7/8 x 16 Ga. HUS-19171416
...
52
Arm Susp. Rear LH HUS-175378
...
53
Arm Susp. Rear RH HUS-175802
...
54
Pin HUS-175560
Schematic Image Zoomed
