Husqvarna PR22H48STA (2001) Tractor

Model: PR22H48STA (2001)

Back To Assemblies

Save Part Not Listed?
product name

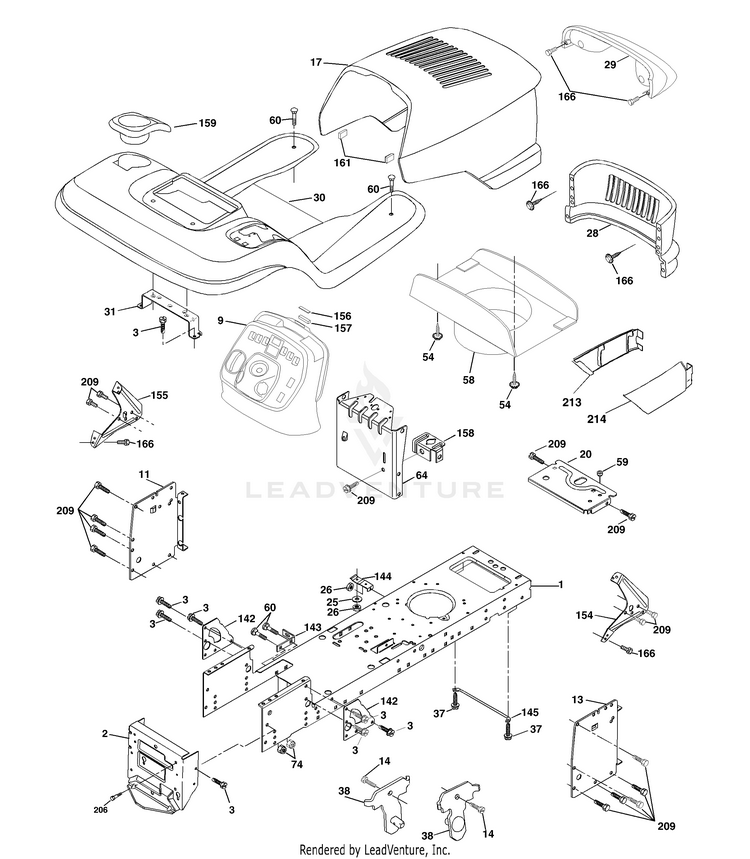

Chassis And Enclosures

...
...
1
Chassis HUS-174619
...
2
Drawbar HUS-176554
...
3
Screw 3/8-16x3/4 HUS-17060612
...
9
Dash HUS-163976X428
...
11
Panel Dash Lh HUS-167203
...
13
Panel Dash Rh HUS-167202
...
14
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
17
Hood HUS-175259X428
...
20
Plate Battery HUS-162026
...
25
Washer 13/32 X 13/16 X 12 Ga HUS-19131312
...
26
Nut Lock Hex W/Ins 3/8-16 Unc HUS-73800600
...
28
Grille HUS-175289X428
...
29
Lens HUS-160568
...
30
Fender HUS-175692X428
...
31
Bracket Fender HUS-139976
...
37
Screw Thdrol 6/16-18 x 1/2 TYT HUS-17490508
...
38
Bracket, Asm. Pivot Mower Rear HUS-175710
...
54
Screw Hex Wshd 8-18 x 7/8 HUS-161464
...
58
Duct Hood HUS-161236
...
59
Bushing Snap HUS-110436X
...
60
Bolt Rd Hd Sqnk 3/8-16 Unc x 3/4 HUS-72140606
...
64
Dash Lower HUS-174997
...
74
Nut Crownlock 3/8-16 Unc HUS-73680600
...
142
Plate Reinforcement STLT HUS-175702
...
143
Bracket Swaybar Chassis HUS-154966
...
144
Bracket Footrest HUS-175582
...
145
Rod Pivot Chassis/Hood HUS-156524
...
154
Bracket Dash Rh HUS-161897
...
155
Bracket Dash Lh HUS-161900
...
156
Striker Plate HUS-163805
...
157
Magnet Stealth HUS-163806
...
158
Bracket Parking Brake HUS-162037
...
159
Cupholder HUS-155123X428
...
161
Extrusion Bumper HUS-164655
...
166
Screw Hw Hd Hi-Lo #13-16 x 3/4 HUS-164863
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
209
Screw Hexwsh Thdrol 3/8-16 x 3/4 HUS-17000612
...
213
Skirt Grille Lh HUS-169848X428
...
214
Skirt Grille Rh HUS-169847X428
