product name

Husqvarna PR185H42STD (2001) Tractor

Model: PR185H42STD (2001)

Back To Assemblies

Save Part Not Listed?
product name

Electrical

...
...
1
Battery HUS-163465
...
2
Bolt Hex Hd 1/4-20unc X 3/4 HUS-74760412
...
8
Case Battery Mech Hinge HUS-156417
...
16
Switch Interlock Push-In HUS-153664
...
21
Harness Socket Light HUS-166181
...
22
Bulb, Light # 1156 HUS-4152J
...
24
Cable Battery HUS-4799J
...
25
Cable Battery 6 Ga Red w/16 wire HUS-146147
...
26
Fuse HUS-175158
...
27
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
28
Cable Ground 6ga 12 black HUS-4207J
...
29
Switch Plunger Nc Gray HUS-121305X
...
30
Switch Ign HUS-175566
...
33
Key Ign Molded Generic HUS-140401
...
40
Harness Ign HUS-170217
...
41
Bolt Fin Hex 1/4-20uncx 1/2 HUS-71110408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-175141
...
45
Ammeter Rectangular HUS-121433X
...
52
Protection Loop HUS-141940

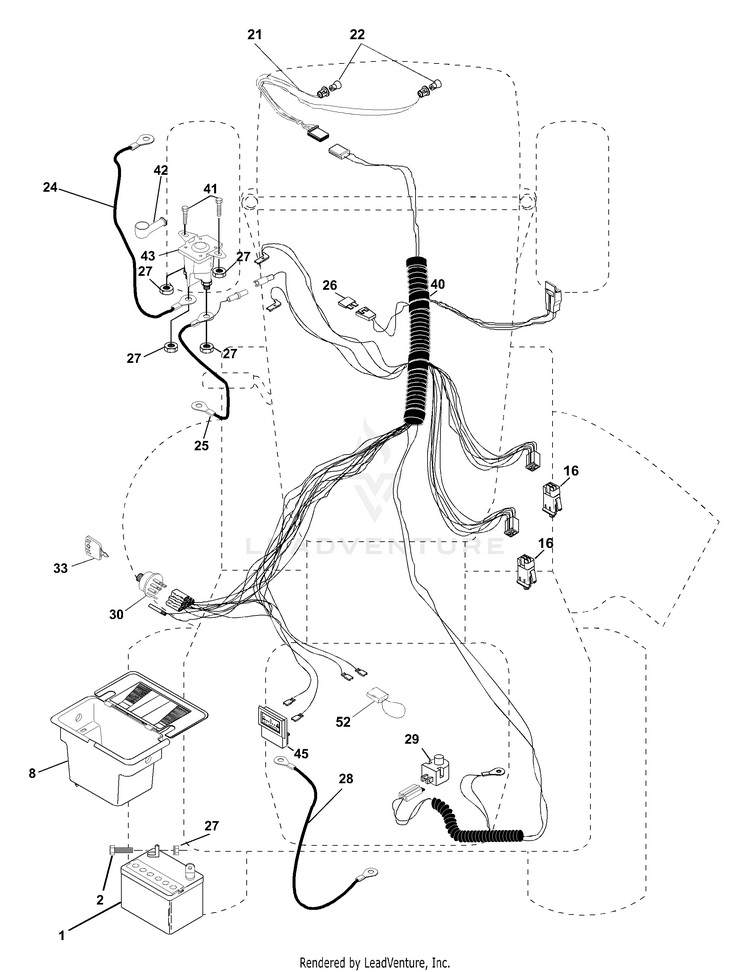

Schematic Image Zoomed
