product name

Husqvarna PR185H42STC (2001) Tractor

Model: PR185H42STC (2001)

Back To Assemblies

Save Part Not Listed?
product name

Drive

...
...
8
Rod Shift Hydro LT HUS-165619
...
10
Pin Cotter 1/8 x 1 CAD HUS-76020416
...
14
Washer Lock Hvy Helical HUS-10040400
...
15
Bolt, Hex FLGHD 5/16-18 Gr. 5 HUS-74490544
...
16
Nut Lock Hex W/Ins 5/16-18 Unc P HUS-73800500
...
19
Nut Lock Hex W/Wsh 3/8-16 Unc HUS-73800600
...
21
Knob, Round 1/2-13 HUS-140845
...
22
Rod, Brake Hydro HUS-169498
...
24
Nut HUS-73350600
...
25
Spring, Brake Rod HUS-106888X
...
26
Washer HUS-19131316
...
27
Pin Cotter 1/8 x 3/4 CAD. HUS-76020412
...
28
Rod, Parking Brake HUS-145204
...
29
Cap, Parking Brake HUS-71673
...
30
Bracket, Transaxle HUS-169592
...
32
Bolt Hex Hd 5/16-18 Unc x 3/4 HUS-74760512
...
34
Shaft, Foot Pedal HUS-155071
...
35
Bearing, Nylon HUS-120183X
...
36
Washer HUS-19211616
...
37
Pin, Roll HUS-1572H
...
38
Pulley, Idler, Flat HUS-131494
...
39
Bolt HUS-74760644
...
40
Spacer, Split HUS-4470J
...
41
Keeper, Belt Idler HUS-165838
...
42
Washer 13/32 x 13/16 x 12 Gauge HUS-19131312
...
47
Pulley, Idler, V-Groove HUS-127783
...
48
Bellcrank Clutch Grnd Drv STL HUS-154407
...
49
Retainer, Belt HUS-123205X
...
50
Bolt HUS-74760624
...
51
Nut Crownlock 3/8-16 UNC HUS-73680600
...
52
Nut Crownlock 5/16-18 UNC HUS-73680500
...
53
Link, Clutch HUS-105710X
...
55
Spring, Return, Clutch HUS-105709X
...
56
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
57
V-Belt, Ground Drive HUS-140294
...
59
Keeper, Center Span HUS-169691
...
61
Screw Thdrol. 3/8-16 x .75 HUS-17060612
...
62
Cover, Pedal HUS-8883R
...
63
Pulley, Engine HUS-140186
...
64
Bolt, Hex HUS-71170764
...
65
Washer HUS-10040700
...
66
Keeper Belt Engine HUS-154778
...
69
Screw HUS-142432
...
70
Guide Belt HUS-134683
...
71
Strap Torque Lh Hydro HUS-169183
...
73
Strap Torque Rh Hydro HUS-169182
...
74
Spacer, Axle HUS-137057
...
75
Washer 25/32 x 1-1/4 x 16 Gauge HUS-121749X
...
76
E-Ring HUS-12000001
...
77
Key, Square HUS-123583X
...
78
Washer 25/32 x 1-5/8 x 16 Gauge HUS-121748X
...
81
Shaft Asm. Cross Hydro HUS-165596
...
82
Spring Torsion T/A HUS-123782X
...
83
Washer 17/32 x 3/4 x 16 Ga. HUS-19171216
...
84
Link Transaxle HUS-169594
...
89
Console, Hydro HUS-169373X428
...
95
Control Asm Bypass Hydro HUS-170201
...
96
Retainer Spring 1" Zinc/Cad HUS-4497H
...
116
Bolt RDHD Sqnk 3/8-16 HUS-72140608
...
120
Nut Lock Flg. 3/8-16 Unc HUS-73900600
...
150
Bushing Bellcrank Grd Drive HUS-165850
...
151
Washer 13/32 x 2 x 10 Ga. HUS-19133210
...
156
Washer Srrted 5/16 ID x 1.125 HUS-166002
...
158
Bracket Shift Mount HUS-165589
...
159
Cupholder HUS-169473X428
...
161
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5 HUS-72140406
...
162
Nut Crownlock 1/4-20 Unc HUS-73680400
...
163
Bolt Hex Fin 1/4-20 Unc x 1 Gr 5 HUS-74780416
...
164
Washer 5/8 x .281 x 10 Ga HUS-19091010
...
165
Bracket Pivot Lever HUS-165623
...
166
Screw 5/16-18 x 5/8 HUS-166880
...
168
Bolt Shoulder 5/16-18 x .561 HUS-165492
...
169
Plate Fastening Lt HUS-165580
...
197
Nyliner Snap-In 5/8" ID HUS-169613
...
198
Washer Nyl 7/8 ID x .105 HUS-169593
...
199
Bolt Shoulder 5/16-18 Unc HUS-169612
...
200
Bolt Rdhd Sqnk 5/16-18 Unc x 1 HUS-72140508
...
202
Bolt Carr Sh 3/8-16 x 1-1/2 Gr 5 HUS-72110612
...
212
Nut Hex Flange Lock HUS-145212

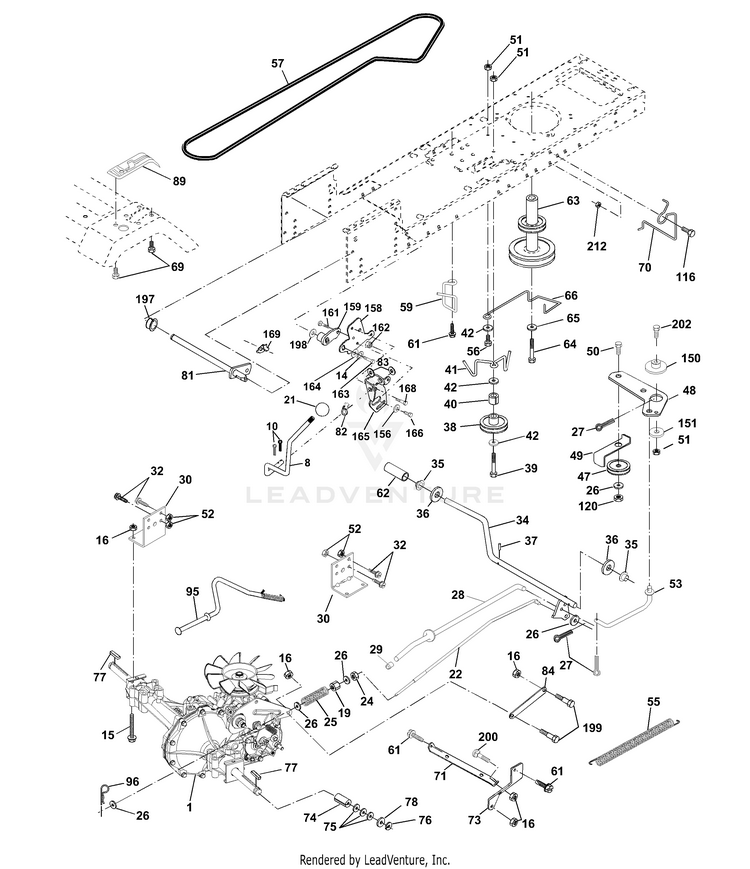

Schematic Image Zoomed
