Husqvarna PR18542STC (2001) Tractor

Model: PR18542STC (2001)

Back To Assemblies

Save Part Not Listed?
product name

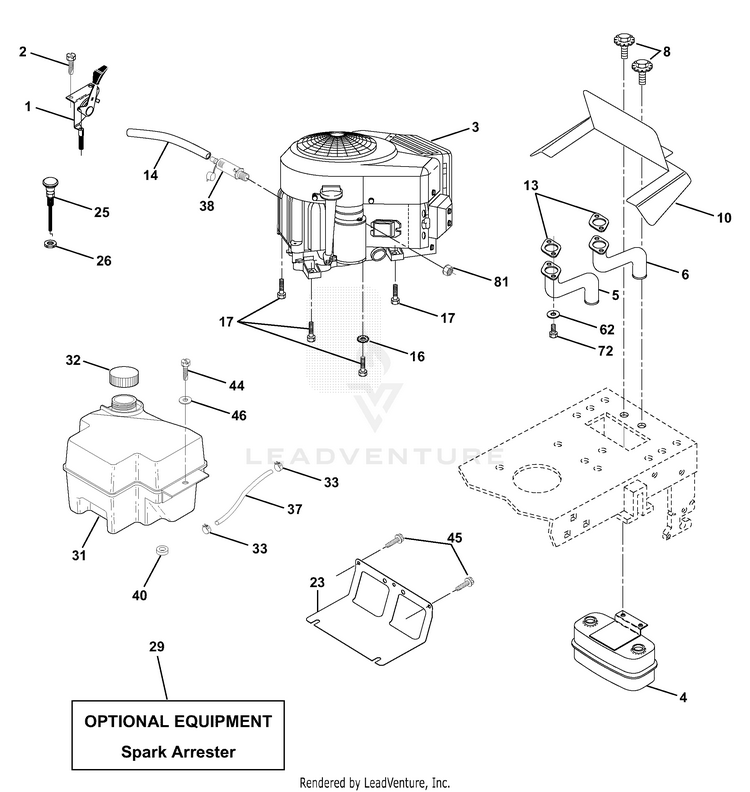

Engine

...
...
1
Control, Throttle HUS-170771
...
2
Screw Hex Thd Cut 1/4-20 x 5/8 HUS-17720410
...
4
Muffler, Asm. Twin Lo-Tone HUS-149723
...
5
Pipe Exhaust Intek 20 RH HUS-160589
...
6
Pipe Exhaust Intek 20 LH HUS-159955
...
8
Bolt 5/16-18 UNC x 3/4 HUS-171877
...
10
Shield Browing B&S Intek II HUS-162797
...
13
Muffler Gasket HUS-165391
...
14
Tube Drain Oil Easy HUS-148456
...
16
Washer, Lock Ext tooth 3/8 HUS-11050600
...
17
Screw Thdrol 3/8-16 x 1-1/2 HUS-17490624
...
23
Shield, Browning/Debris Guard HUS-169837
...
25
Control Choke HUS-145996
...
26
Nut Keps 3/8-24 UNF HUS-73920600
...
29
Arrester, Spark HUS-137180
...
31
Tank, Fuel HUS-174642
...
32
Cap Gauge, Fuel HUS-140527
...
33
Clamp, Hose Blk HUS-123487X
...
37
Line, Fuel HUS-137040
...
38
Plug Drain Oil Easy HUS-148315
...
40
Bushing Snap Nyl Blk Fuel Line HUS-124028X
...
44
Screw Hexwsh Thdrol 1/4-20 x 3/4 HUS-17670412
...
45
Screw Hex Wsh Thdrol 3/8-16 x 3/4 HUS-17000612
...
46
Washer 9/32 x 7/8 x 16 Ga. HUS-19091416
...
62
Washer Lock Hvy Hlcl Spr 5/16 HUS-10040500
...
72
Screw Hex Hd Cap 5/16-18 x 3/4 HUS-71070512
...
81
Nut Keps Hex 1/4-20 Unc HUS-73510400
