Husqvarna PR1842STC (2002) Tractor

Model: PR1842STC (2002)

Back To Assemblies

Save Part Not Listed?
product name

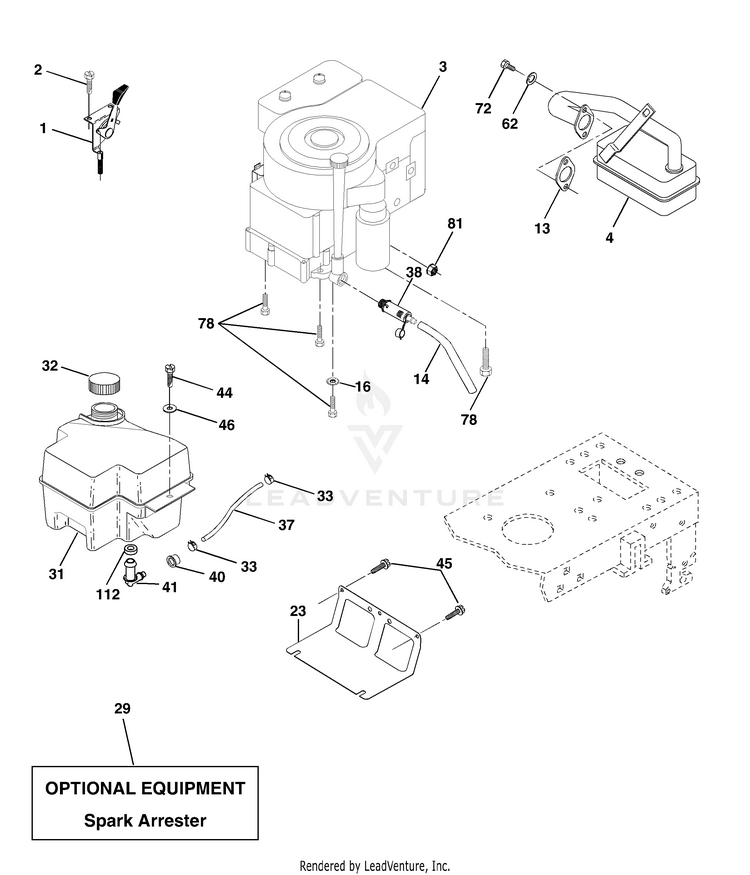

Engine

...
...
1
Control Th/ch Flag HUS-170551
...
2
Screw Hex Thd Cut 1/4-20 x 1/2 HUS-17720408
...
4
Muffler HUS-137352
...
13
Gasket Eng HUS-165291
...
14
Tube Drain Oil Easy HUS-148456
...
16
Washer Lock Ext Tooth 3/8 HUS-11050600
...
23
Shield Brn/Dbr Guard HUS-169837
...
29
Kit Spark Arrestor (Flat Scrn) HUS-137180
...
31
Tank Fuel Front HUS-180645
...
32
Cap Asm Fuel W/sym Vented HUS-140527
...
33
Clamp Hose Black HUS-123487X
...
37
Line Fuel 20" HUS-137040
...
38
Plug Drain Oil Easy HUS-148315
...
40
Bushing Snap Nyl Blk Fuel Line HUS-124028X
...
41
Stem Tank Fuel HUS-139277
...
44
Screw Hexwsh Thdrol 1/4-20x3/4 HUS-17670412
...
45
Screw Hexwsh Thdr 3/8-16 x 3/4 HUS-17000612
...
46
Washer 9/32 X 7/8 X 16 Ga HUS-19091416
...
62
Washer Lock Hvy Hlcl Spr 5/16 HUS-10040500
...
72
Screw Hex Hd Cap 5/16-18 x 3/4 HUS-71070512
...
78
Screw 3/8-16x1-1/4 HUS-17060620
...
81
Nut Keps Hex 1/4-20 UNC HUS-73510400
...
112
Bushing HUS-3645J
