Husqvarna PR18 AWD - 965095001 (2007-03) Riding Mower

Model: PR18 AWD - 965095001 (2007-03)

Back To Assemblies

Save Part Not Listed?
product name

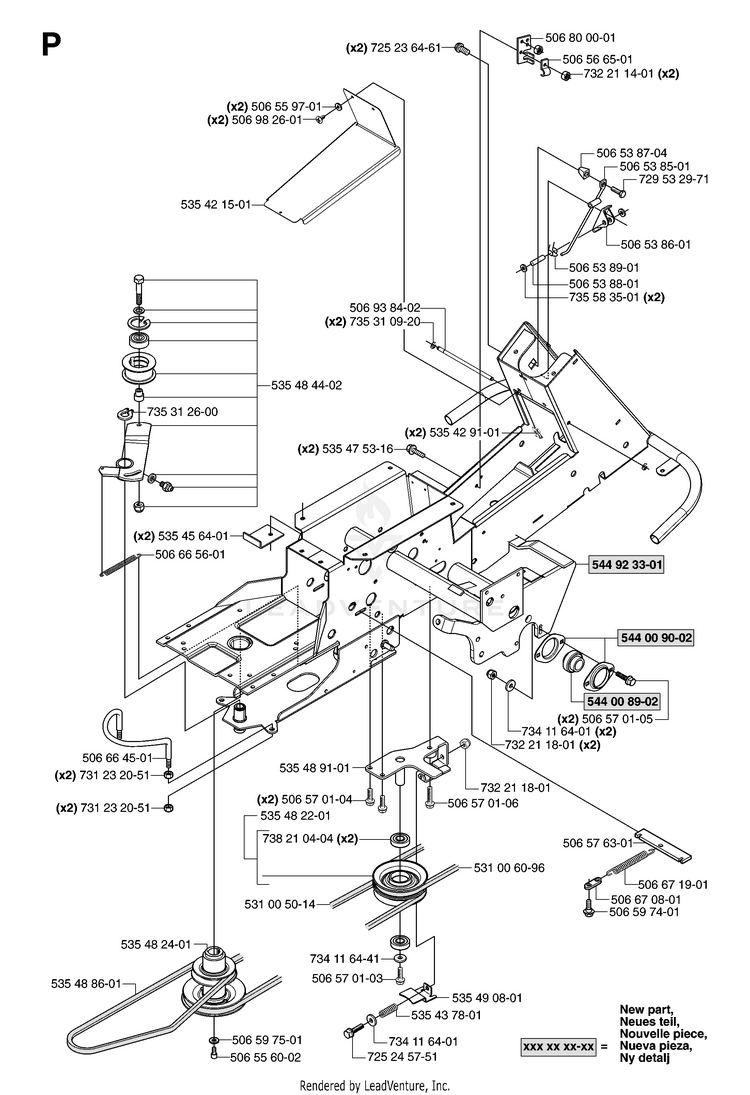

CHASSIS / FRAME

...
...
506 93 84-02
NEEDS DESCRIPTION HUS-506938402
...
506 55 60-02
SCREW HUS-506556002
...
506 57 01-04
BOLT HUS-506570104
...
535 48 22-01
PULLEY HUS-535482201
...
544 00 89-02
BEARING HUS-544008902
...
506 80 00-01
Bracket HUS-506800001
...
506 53 85-01
Arm HUS-506538501
...
506 66 45-01
BELT GUIDE HUS-506664501
...
734 11 64-41
SPACER HUS-734116441
...
506 57 01-05
BOLT HUS-506597401
...
535 43 78-01
NEEDS DESCRIPTION HUS-535437801
...
734 11 64-01
WASHER BRB 8.4X17 HUS-734116401
...
731 23 20-51
Nut HUS-731232001
...
544 00 90-02
BEARING HOUSING HUS-544009002
...
506 59 75-01
WASHER HUS-506597501
...
535 45 64-01
NEEDS DESCRIPTION HUS-535456401
...
732 21 14-01
LOCKNUT M5 HUS-732211401
...
506 55 97-01
WASHER HUS-506559701
...
535 47 53-16
SCREW HUS-535475316
...
535 49 08-01
NEEDS DESCRIPTION HUS-535490801
...
535 42 91-01
NUT HUS-535429101
...
535 48 44-02
TENSIONER HUS-535484402
...
535 48 91-01
NEEDS DESCRIPTION HUS-535489101
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 53 88-01
Pin HUS-506538801
...
506 56 65-01
CLAMP HUS-506566501
...
735 31 09-20
E-RING 5 HUS-735310920
...
506 53 89-01
Spring HUS-506538901
...
506 57 01-06
SCREW EHHFM HUS-506570106
...
738 21 04-04
BALL BEARING 6004-2RS1 HUS-738210404
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 57 63-01
Brackets HUS-590735401
...
506 67 19-01
SPRING HUS-506671901
...
535 42 15-01
NEEDS DESCRIPTION HUS-535421501
...
735 58 35-01
CLIP HUS-735583501
...
725 24 57-51
SCREW HUS-725245751
...
506 59 74-01
BOLT HUS-506597401
...
506 67 08-01
CONNECTOR HUS-506670801
...
729 53 29-71
Screw HUS-729532971
...
735 31 26-00
RETAINING RING SGA 25 HUS-735312600
...
506 98 26-01
SCREW HUS-506982601
...
531 00 50-14
BELT HUS-589530501
...
506 57 01-03
BOLT HUS-506570103
...
594 97 80-01
BELT HUS-594978001
...
725 23 64-61
SCREW HUS-725236461
...
535 48 86-01
BELT HUS-589533401
...
544 92 33-01
NEEDS DESCRIPTION HUS-544923301
...
506 66 56-01
SPRING HUS-506665601
...
535 48 24-01
PULLEY HUS-535482401
...
734 11 64-01
WASHER BRB 8.4X17 HUS-734116401
...
506 53 87-04
KNOB, RED HUS-506538704
...
506 53 86-01
Bracket HUS-506538601
