Husqvarna PR18 AWD - 965095001 (2007-03) Riding Mower

Model: PR18 AWD - 965095001 (2007-03)

Back To Assemblies

Save Part Not Listed?
product name

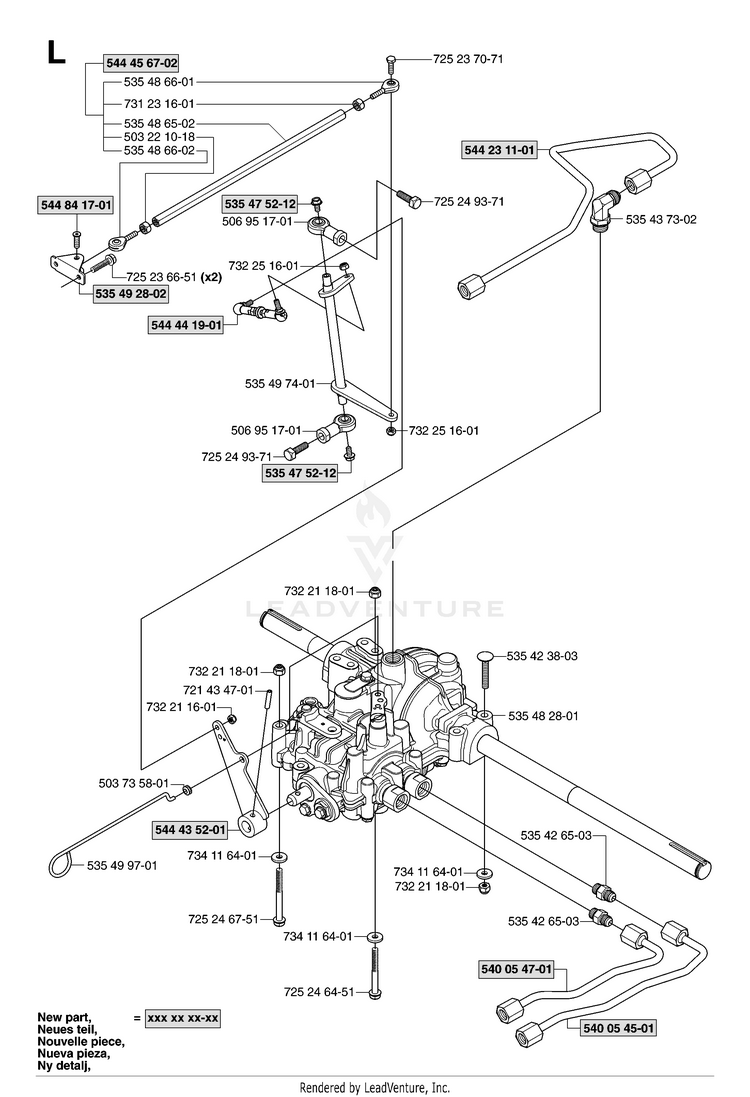

TRANSMISSION 3

...
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
535 42 65-03
COUPLING HUS-535426503
...
725 24 64-51
SCREW HUS-725246451
...
535 49 97-01
ARM HUS-535499701
...
734 11 64-01
WASHER BRB 8.4X17 HUS-734116401
...
535 47 52-12
SCREW EHHFM HUS-535475212
...
731 23 16-01
NUT HUS-731231601
...
732 25 16-01
NUT FLANGE - M6 HUS-732251601
...
535 49 28-02
BRACKET HUS-535492802
...
535 49 74-01
LINK HUS-535497401
...
503 73 58-01
FUEL TANK BUSHING HUS-503735801
...
721 43 47-01
PIN HUS-721434701
...
725 24 67-51
Hex Bolt HUS-725246751
...
725 24 93-71
Screw M10x25 HUS-725249371
...
544 45 67-02
NEEDS DESCRIPTION HUS-544456702
...
506 95 17-01
LINK HUS-506951701
...
540 05 47-01
NEEDS DESCRIPTION HUS-540054701
...
544 44 19-01
ADJUSTING ROD HUS-544441901
...
725 23 70-71
SCREW HUS-725237071
...
544 43 52-01
LEVER HUS-544435201
...
725 23 66-51
SCREW HUS-725236651
...
535 48 66-02
LINK HUS-535486602
...
535 48 66-01
LINK HUS-535486601
...
535 48 65-02
LINK HUS-535486502
...
732 21 16-01
LOCKNUT M6 HUS-732211601
...
535 43 73-02
COUPLING HUS-535437302
...
544 23 11-01
NEEDS DESCRIPTION HUS-544231101
...
535 42 38-03
SCREW HUS-535423803
...
540 05 45-01
NEEDS DESCRIPTION HUS-540054501
...
503 22 10-18
NUT HUS-503221018
...
535 48 28-01
NEEDS DESCRIPTION HUS-535482801
...
544 84 17-01
SCREW HUS-544841701
