Husqvarna PR18 AWD - 965095001 (2007-03) Riding Mower

Model: PR18 AWD - 965095001 (2007-03)

Back To Assemblies

Save Part Not Listed?
product name

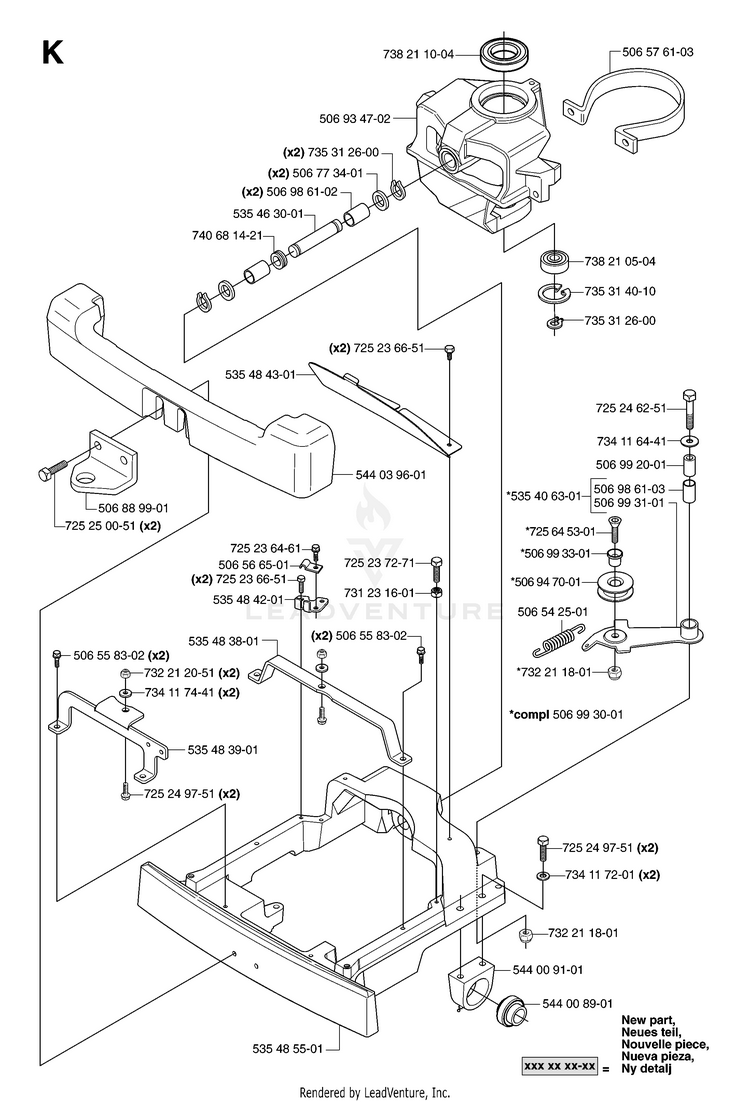

STEERING COLUMN

...
...
544 03 96-01
COUNTERWEIGHT 13.8KG GREY HUS-544039601
...
725 23 66-51
SCREW HUS-725236651
...
506 55 83-02
BOLT HUS-506558302
...
544 00 91-01
BEARING HOUSING SYF 505 HUS-544009101
...
725 24 62-51
SCREW HUS-725246251
...
535 48 38-01
NEEDS DESCRIPTION HUS-535483801
...
738 21 10-04
BALL BEARING 6010 2RS1 HUS-738211004
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 54 25-01
SPRING HUS-506542501
...
535 40 63-01
IDLER ARM HUS-535406301
...
735 31 26-00
RETAINING RING SGA 25 HUS-735312600
...
506 77 34-01
WASHER HUS-506773401
...
506 99 20-01
BUSHING HUS-506992001
...
725 24 97-51
SCREW HUS-725249751
...
535 46 30-01
SHAFT HUS-535463001
...
506 99 30-01
TENSIONER HUS-506993001
...
725 23 64-61
SCREW HUS-725236461
...
734 11 72-01
GSPH HUS-596134901
...
535 48 55-01
NEEDS DESCRIPTION HUS-535485501
...
506 94 70-01
PULLEY HUS-506947001
...
732 21 20-51
NUT HUS-732212001
...
735 31 40-10
CIRCLIP SGH 47 HUS-735314010
...
734 11 64-41
SPACER HUS-734116441
...
535 48 43-01
NEEDS DESCRIPTION HUS-535484301
...
725 23 72-71
SCREW HUS-725237271
...
740 68 14-21
V-RING HUS-740681421
...
725 25 00-51
SCREW HUS-725250071
...
735 31 26-00
RETAINING RING SGA 25 HUS-735312600
...
731 23 16-01
NUT HUS-731231601
...
506 99 33-01
SLEEVE HUS-506993301
...
506 98 61-03
HUS-506986103
...
506 98 61-02
BUSHING HUS-506986102
...
506 99 31-01
TENSIONER HUS-506993001
...
544 00 89-01
BEARING HUS-544008902
...
506 93 47-02
NEEDS DESCRIPTION HUS-506934702
...
734 11 74-41
WASHER HUS-734117441
...
738 21 05-04
Ball Bearing 6005-2rs HUS-738210504
...
506 56 65-01
CLAMP HUS-506566501
...
506 57 61-03
GUIDE PLATE HUS-506576103
...
535 48 39-01
NEEDS DESCRIPTION HUS-535483901
...
725 64 53-01
SCREW HUS-725645301
...
506 88 99-01
DRAW RING HUS-506889901
...
535 48 42-01
NEEDS DESCRIPTION HUS-535484201
