Husqvarna PR17542STA (2002) Tractor

Model: PR17542STA (2002)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
Control Th/ch Flag HUS-170771
...
2
Screw Hex Thd Cut 1/4-20 x 5/8 T HUS-17720408
...
4
Muffler Exhaust HUS-149723
...
5
Exhaust Tube LH HUS-159955
...
6
Exhaust Tube RH HUS-160589
...
8
Bolt 5/16-18 UNC x 3/4 HUS-171877
...
10
Shield Browning HUS-162797
...
11
Washer Lock 5/16 HUS-10040500
...
12
Screw Hex 5/16-18 x 3/4 HUS-71070512
...
13
Gasket Muffler HUS-165291
...
14
Nipple Pipe 3/8 NPT x 3 HUS-13280324
...
15
Elbow STD 90 Degree 3/8-18 HUS-13200300
...
16
Washer Lock Ext Tooth 3/8 HUS-11050600
...
17
Screw 3/8-16 x 1-1/2 HUS-17060624
...
23
Shield Brn/Dbr Guard HUS-169837
...
25
Control Choke HUS-145996
...
26
Nut Keps 3/8-24 Unf HUS-73920600
...
29
Arrestor Spark HUS-137180
...
31
Tank Fuel Front 2 00 HUS-180645
...
32
Cap Fuel HUS-140527
...
33
Clamp Hose Black HUS-123487X
...
37
Line Fuel 20" HUS-137040
...
40
Bushing Snap Nyl Blk Fuel Line HUS-124028X
...
41
Stem Tank Fuel HUS-139277
...
44
Screw Hex wsh Thdrol 1/4-20 x 3/4 HUS-17670412
...
45
Screw Hex Wsh Thdrol 3/8-16 x 3/4 HUS-17000612
...
46
Washer 9/32 X 7/8 X 16 Ga HUS-19091416
...
81
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
112
Bushing HUS-3645J

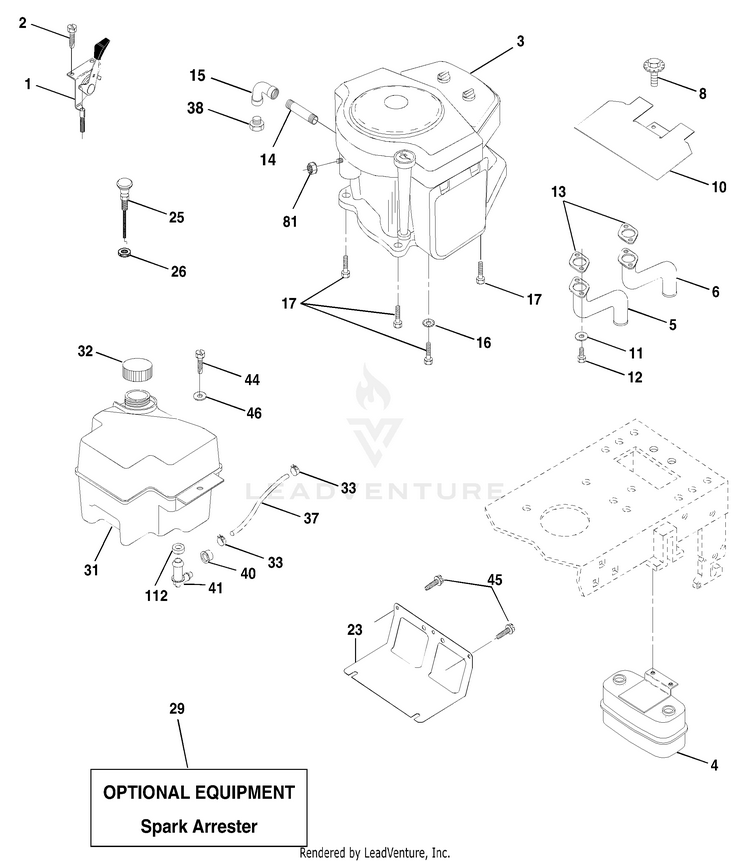

Schematic Image Zoomed
