Husqvarna PR1742STD (2001) Tractor

Model: PR1742STD (2001)

Back To Assemblies

Save Part Not Listed?
product name

Chassis And Enclosures

...
...
1
Chassis HUS-174619
...
2
Drawbar HUS-176554
...
3
Screw 3/8-16x.75 HUS-17060612
...
5
Bumper Hood/Dash HUS-155272
...
9
Dash P/L HUS-168337X012
...
10
Bolt Carriage 3/8-16 x 1 HUS-72140608
...
11
Panel Dash Lh HUS-155927
...
12
Clip Tinnerman HUS-145660
...
13
Panel Dash Rh HUS-172108
...
14
Screw Thdrol 3/8-16 x 1-1/4 HUS-17490608
...
17
Hood LT/PL HUS-159639X428
...
18
Bumper Hood HUS-126938X
...
20
Plate Mtg Battery Fuel Tank Fr HUS-156437
...
23
Bushing HUS-124028X
...
24
Bolt Fin Hex 3/8-16 x 1 Gr 5 HUS-74780616
...
25
Washer 13/32 X 13/16 X 12 Ga HUS-19131312
...
26
Nut Lock Hex W/Ins 3/8-16 Unc HUS-73800600
...
28
Grille LT/PL HUS-170474
...
29
Lens LT/PL HUS-170472X599
...
30
Fender Footrest STLT Pnt HUS-169470X428
...
31
Bracket Support Fender HUS-136619
...
33
Footrest Pnt Lh HUS-145244X428
...
34
Footrest Pnt Rh HUS-145243X428
...
35
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 HUS-72110606
...
37
Screw Thdrol 6/16-18 x 1/2 TYT HUS-17490508
...
38
Bracket Asm. Pivot Mower Rear HUS-169834
...
51
Nut Lock Hex W/Ins 1/4-20 HUS-73800400
...
52
Washer 9/32 x 7/8 x 16 Ga. HUS-19091416
...
53
Bracjet Grukke Lh HUS-144697
...
54
Screw Hex Wshd 8-18 x 7/8 HUS-161464
...
55
Bracket Grille Rh HUS-144696
...
57
Bolt Hex 1/4-20 x 3/4 HUS-74780412
...
58
Duct Air HUS-150127
...
64
Dash Lower STLT HUS-154798
...
114
Keeper Belt Rear Lh HUS-158112
...
115
Screw 3/8-16 x 1-1/4 HUS-17060620
...
142
Plate Reinforcement STLT HUS-165867
...
145
Rod Pivot Chassis/Hood HUS-156524
...
159
Cupholder HUS-169473X428
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
207
Screw Thdrol 5/16-18 x 1/2 HUS-17670508
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
211
Nut Hex Flange Lock HUS-145212
...
212
Insert Lens Reflect P/L LT HUS-156229
...
xx
Plug Button HUS-5479J

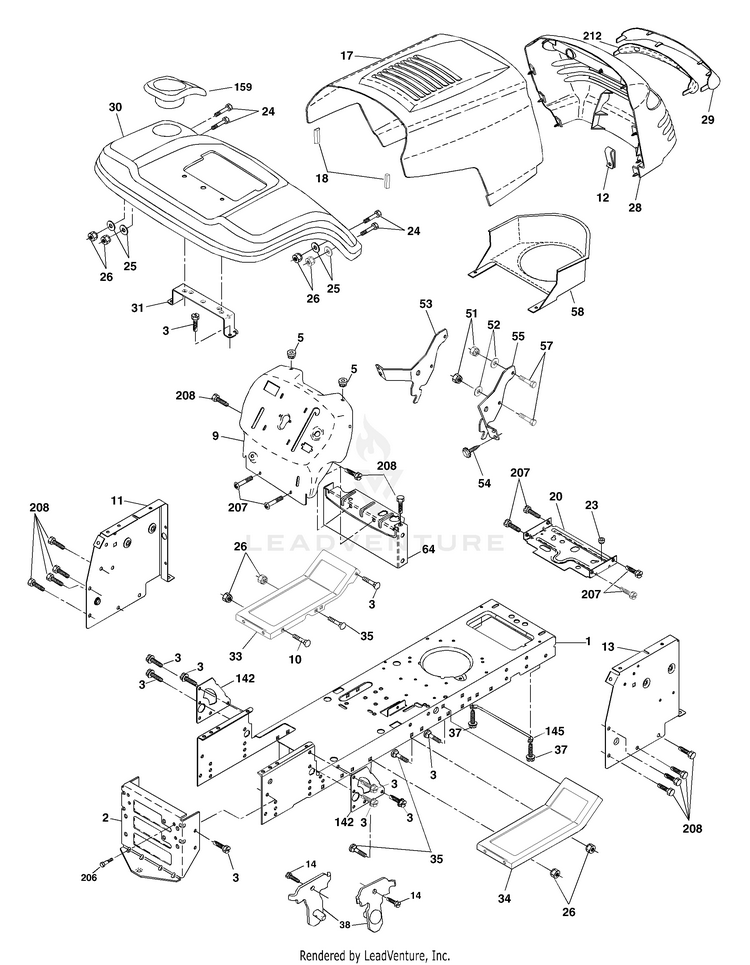

Schematic Image Zoomed
