Husqvarna PR1742STC (2001) Tractor

Model: PR1742STC (2001)

Back To Assemblies

Save Part Not Listed?
product name

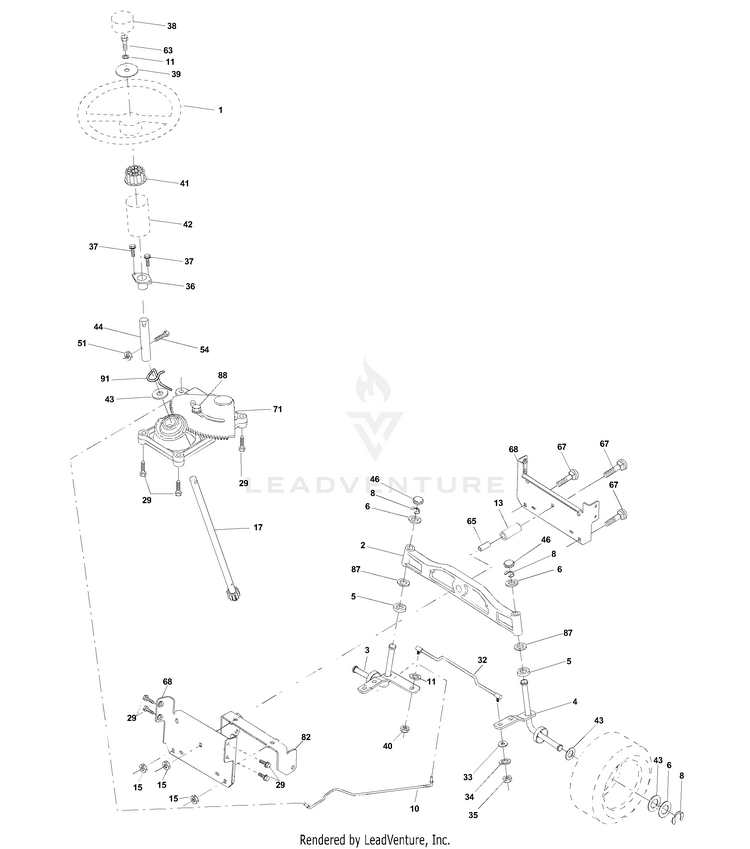

Steering Assembly

...
...
1
Wheel Steering HUS-159944X428
...
2
Axle Asm Cast Iron LT HUS-172393
...
3
Spindle Asm LH HUS-169840
...
4
Spindle Asm RH HUS-169839
...
5
Bearing Race Thrust Harden HUS-6266H
...
6
Washer 25/32 X 1-5/8 X 16 Ga HUS-121748X
...
8
Ring Klip #t5304-75 HUS-12000029
...
10
Link Drag HUS-175121
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
13
Spacer Brg. Axle Front HUS-136518
...
15
Nut Hex Flange Lock HUS-145212
...
17
Shaft Asm. Steering HUS-177876
...
29
Screw 3/8-16x.75 HUS-17060612
...
32
Rod Tie HUS-171888
...
33
Washer 11/32 x 3/4 x 16 Ga. HUS-19111216
...
34
Washer Lock Hvy Hlcl Spr 5/16 HUS-10040500
...
35
Crownlock Nut 5/16-24 HUS-73540500
...
36
Bushing Strg HUS-155099
...
37
Screw HUS-152927
...
38
Insert Cap Strg Wh Au HUS-159946X428
...
39
Washer 13/32 X 2-3/8 X 12 Ga HUS-19132411
...
40
Lock nut HUS-7810H
...
41
Adaptor Wheel Strg HUS-159945
...
42
Boot Steering Dash HUS-145054X428
...
43
Washer 25/32 X 1 1/4 X 16 Ga HUS-121749X
...
44
Extension Steering Shaft LR/LT HUS-153720
...
46
Cap Spindle Fr Top Blk HUS-121232X
...
51
Nut Lock Hex w/Ins 5/16-18 HUS-73800500
...
54
Bolt Fin Hex 5/16-18 Unc x 1-1/4 HUS-74780520
...
63
Bolt Fin Hex 3/8-16unc x 1 Gr. 5 HUS-74780616
...
65
Brace Axle HUS-160367
...
67
Bolt Rdhd Sq 3/8-16 Unc x 2-1/4 HUS-72140618
...
68
Axle, Brace HUS-169827
...
71
Steering Asm. HUS-175146
...
82
Bracket Susp. Chassis Front HUS-169835
...
87
Washer Flat .781 x 1-1/2 x .14 HUS-173966
...
88
Bolt Shoulder 7/16-20 Unc HUS-175118
...
91
Clip Steering HUS-175553
