Husqvarna PR17 AWD - 965192301 (2010-07) Riding Mower

Model: PR17 AWD - 965192301 (2010-07)

Back To Assemblies

Save Part Not Listed?
product name

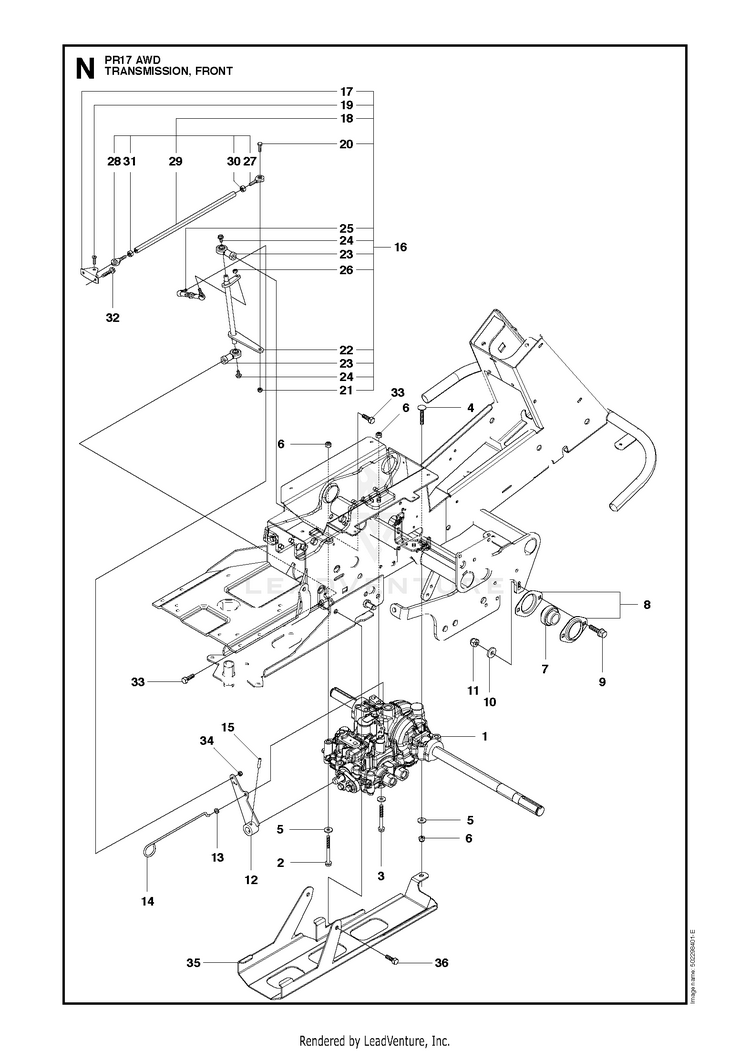

TRANSMISSION 2

...
...
23
LINK HUS-506951701
...
11
LOCKNUT M8 HUS-732211801
...
12
LEVER HUS-544435201
...
24
SCREW EHHFM HUS-535475212
...
19
SCREW HUS-544841701
...
10
WASHER BRB 8.4X17 HUS-734116401
...
30
NUT HUS-731231601
...
22
LINK HUS-535497401
...
6
LOCKNUT M8 HUS-732211801
...
21
NUT FLANGE - M6 HUS-732251601
...
31
NUT HUS-503221018
...
3
SCREW HUS-725246451
...
35
NEEDS DESCRIPTION HUS-544845601
...
25
ADJUSTING ROD HUS-544441901
...
18
NEEDS DESCRIPTION HUS-593959403
...
2
Hex Bolt HUS-725246751
...
34
LOCKNUT M6 HUS-732211601
...
20
SCREW HUS-725237071
...
27
LINK HUS-535486601
...
28
LINK HUS-535486602
...
1
NEEDS DESCRIPTION HUS-574425301
...
17
BRACKET HUS-535492802
...
14
ARM HUS-535499701
...
32
SCREW HUS-725236651
...
15
PIN HUS-721434701
...
26
NUT FLANGE - M6 HUS-732251601
...
7
BEARING HUS-544008902
...
4
SCREW HUS-535423803
...
13
FUEL TANK BUSHING HUS-503735801
...
16
NEEDS DESCRIPTION HUS-544841503
...
8
BEARING HOUSING HUS-544009002
...
9
BOLT HUS-506597401
...
33
Screw M10x25 HUS-725249371
...
5
WASHER BRB 8.4X17 HUS-734116401
...
29
ROD HUS-535486503
...
36
BOLT HUS-506570104
