Husqvarna PR17 AWD - 965192301 (2010-07) Riding Mower

Model: PR17 AWD - 965192301 (2010-07)

Back To Assemblies

Save Part Not Listed?
product name

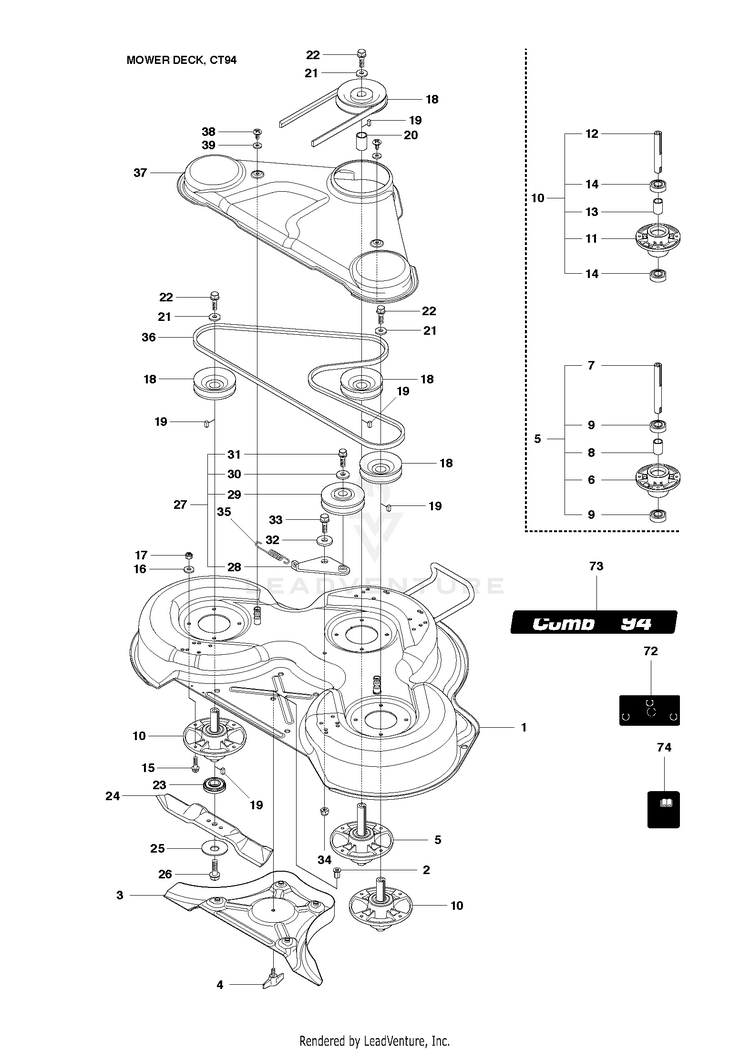

94CM CUTTING DECK

...
...
6
BEARING HOUSING HUS-576384201
...
16
WASHER BRB 8.4X17 HUS-734116401
...
13
SPACER HUS-535428801
...
39
WASHER HUS-506559701
...
37
BELT COVER C93 & C94 GREY HUS-544066301
...
30
SPACER HUS-734116441
...
5
NEEDS DESCRIPTION HUS-535503501
...
73
NEEDS DESCRIPTION HUS-544238110
...
29
PULLEY HUS-506532701
...
21
HUS-535429201
...
17
LOCKNUT M8 HUS-732211801
...
35
SPRING HUS-506533101
...
25
WASHER HUS-506792302
...
19
KEY HUS-506533501
...
28
BELT TENSIONER ASSY KIT HUS-586966601
...
2
NUT HUS-506916201
...
18
NEEDS DESCRIPTION HUS-535429001
...
1
DECK SHELL ASSY CT94 GREY HUS-544065509
...
7
NEEDS DESCRIPTION HUS-535428701
...
11
BEARING HOUSING HUS-576384201
...
36
NEEDS DESCRIPTION HUS-589538501
...
26
Screw HUS-725254251
...
33
SCREW HUS-725245171
...
22
Screw HUS-725254251
...
3
PLUG C93 & C94 HUS-544065801
...
34
LOCKNUT M8 HUS-732211801
...
14
BALL BEARING HUS-738220519
...
9
BALL BEARING HUS-738220519
...
31
BOLT HUS-506558302
...
8
SPACER HUS-535428801
...
12
AXLE HUS-535428702
...
24
BLADE HUS-579652610
...
20
SPACER HUS-535428801
...
10
NEEDS DESCRIPTION HUS-535503502
...
4
KNOB HUS-544066101
...
38
SCREW HUS-506982601
...
72
Decal HUS-506789701
...
74
DECAL HUS-506929001
...
32
Washers HUS-584288604
...
27
BELT TENSIONER ASSY KIT HUS-586966601
...
23
HUS-535504201
...
15
BOLT HUS-535423801
