Husqvarna PR15 (2003-01) Riding Mower

Model: PR15 (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

STEERING COLUMN

...
...
506 93 49-01
TANK HUS-506934901
...
738 21 05-04
Ball Bearing 6005-2rs HUS-738210504
...
506 99 16-01
ARM HUS-535406201
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 77 34-01
WASHER HUS-506773401
...
506 99 22-01
ROD HUS-506992201
...
535 03 25-01
SWITCH HUS-535469201
...
506 94 67-04
HOSE HUS-506946704
...
506 99 30-01
TENSIONER HUS-506993001
...
735 31 40-10
CIRCLIP SGH 47 HUS-735314010
...
506 99 28-01
BRACKET HUS-506992801
...
506 67 33-01
FUEL CAP HUS-506673301
...
725 2372-71
SCREW HUS-725237271
...
506 99 33-01
SLEEVE HUS-506993301
...
738 88 10-01
GREASE NIPPLE HUS-738881001
...
506 99 20-01
BUSHING HUS-506992001
...
506 59 51-02
TENSIONER HUS-535484402
...
506 79 27-01
GUIDE PLATE HUS-506792701
...
738 21 10-04
BALL BEARING 6010 2RS1 HUS-738211004
...
506 94 68-01
Clip HUS-506946801
...
725 24 59-51
SCREW HUS-725245951
...
506 98 79-01
Bracket HUS-506987901
...
725 24 62-51
SCREW HUS-725246251
...
725 24 61-51
BOLT HUS-725246151
...
723 12 28-01
Screw HUS-723122801
...
734 11 64-41
SPACER HUS-734116441
...
506 99 31-01
TENSIONER HUS-506993001
...
738 21 04-04
BALL BEARING 6004-2RS1 HUS-738210404
...
725 23 68-71
BOLT FLANGE - M6X20 HUS-725236871
...
506 88 99-01
DRAW RING HUS-506889901
...
735 31 26-00
RETAINING RING SGA 25 HUS-735312600
...
535 40 63-01
IDLER ARM HUS-535406301
...
506 54 25-01
SPRING HUS-506542501
...
731 23 16-01
NUT HUS-731231601
...
506 98 61-02
BUSHING HUS-506986102
...
506 98 61-03
HUS-506986103
...
506 98 59-02
SHAFT HUS-535463001
...
734 11 54-41
WASHER - 26X6.5X1.6 HUS-734115441
...
535 40 61-01
BRACKET PRO15 HUS-535406101
...
725 24 49-71
BOLT - M8X16 HUS-725244951
...
535 40 62-01
ARM HUS-535406201
...
725 24 97-51
SCREW HUS-725249751
...
725 24 93-71
Screw M10x25 HUS-725249371
...
725 25 00-51
SCREW STD USA HUS-725250071
...
734 11 24-01
WASHER BRB 3.2X7 HUS-734112401
...
506 92 89-01
BELT TENSIONER WHEEL ASSY HUS-505153901
...
506 66 56-01
SPRING HUS-506665601
...
506 59 50-01
LEVER HUS-506595001
...
725 64 53-01
SCREW HUS-725645301
...
740 68 14-21
V-RING HUS-740681421
...
732 23 18-01
LOCKNUT M8 HUS-732211801
...
732 21 16-01
LOCKNUT M6 HUS-732211601
...
506 99 21-01
BRACKET HUS-506992101
...
506 98 61-01
BUSHING HUS-506986102
...
731 23 10-01
NUT M6M M3 HUS-731231001
...
735 31 38-10
RETAINING RING HUS-735313810
...
506 93 47-01
SPINDLE HUS-506934701
...
506 53 56-03
SPRING HUS-506535603
...
732 21 20-51
NUT HUS-732212001
...
506 94 70-01
PULLEY HUS-506947001

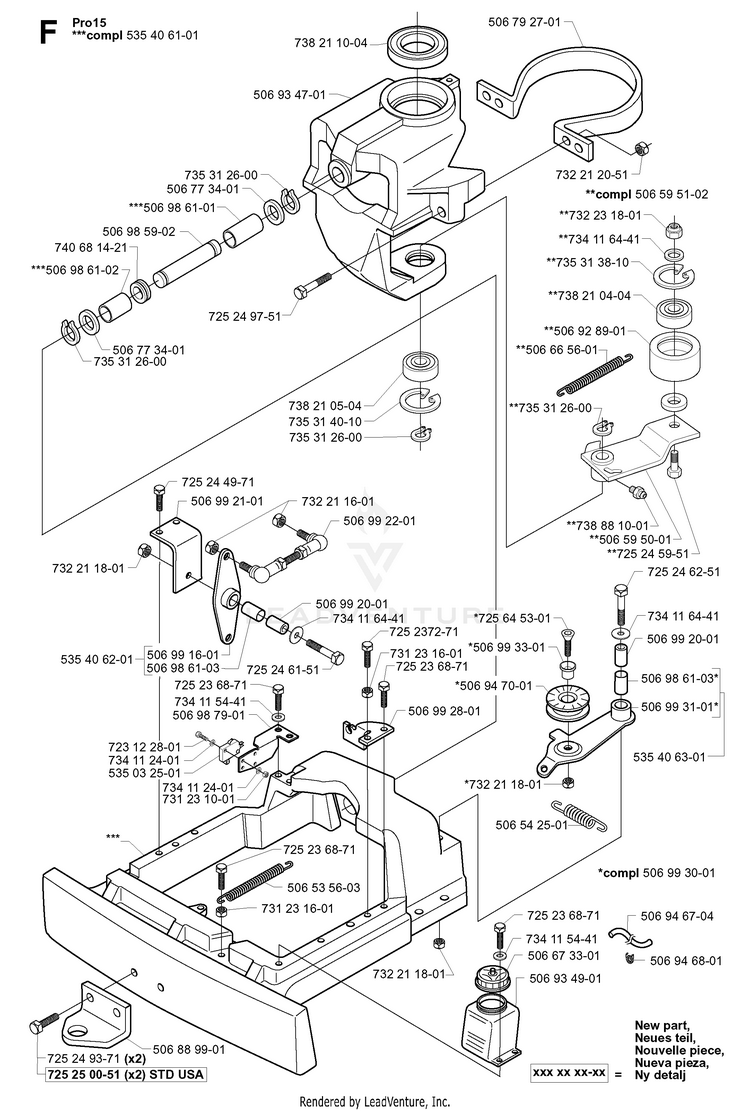

Schematic Image Zoomed
