Husqvarna PPRTH5A (2000) Tiller

Model: PPRTH5A (2000)

Back To Assemblies

Save Part Not Listed?
product name

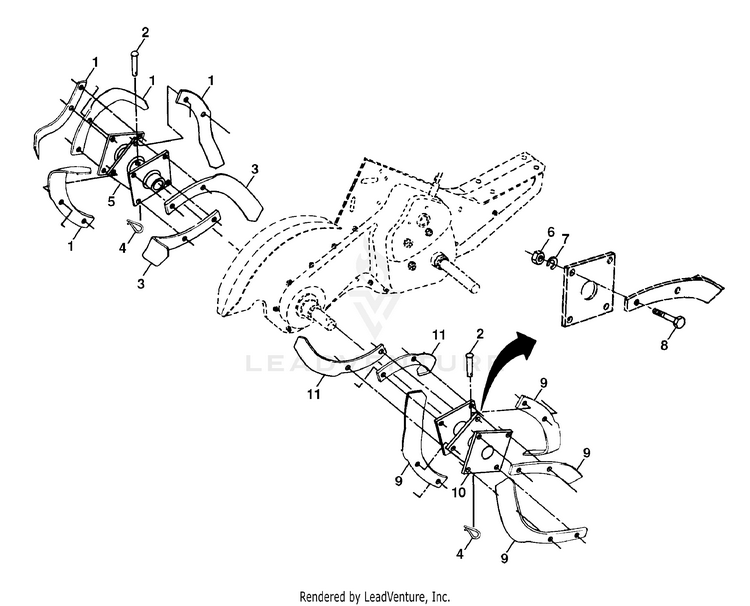

Tine Assembly

...
...
1
Tine, Outer, L.H. HUS-4459J
...
2
Clevis Pin HUS-132673
...
3
Tine, Inner, L.H. HUS-6554J
...
4
Retainer Spring HUS-3146R
...
5
Assembly, Hub and Plate, L.H. HUS-132727
...
6
Nut, Hex 3/8-24 HUS-73610600
...
7
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
8
Bolt, Hex 3/8-24 x 1 HUS-74610616
...
9
Tine, Outer, R.H. HUS-4460J
...
10
Assembly, Hub and Plate, R.H. HUS-132728
...
11
Tine, Inner, R.H. HUS-6555J
