Husqvarna PPRTH5A (2000) Tiller

Model: PPRTH5A (2000)

Back To Assemblies

Save Part Not Listed?
product name

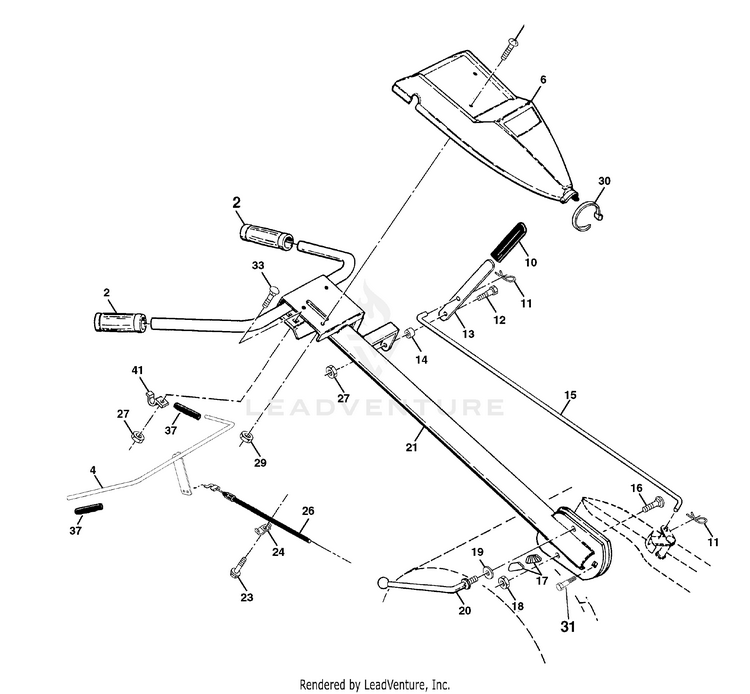

Handle Assembly

...
...
2
Grip, Handle HUS-9266R
...
4
Bar Assembly, Control HUS-159228
...
6
Panel, Control HUS-173821
...
8
Screw, Phd. #10-24 HUS-71191008
...
10
Grip, Handle HUS-8206H
...
11
Clip, Hairpin HUS-4497H
...
12
Bolt, Shoulder HUS-81328
...
13
Handle, Shift HUS-109335X
...
14
Grommet, Rubber HUS-109313X
...
15
Rod, Shift HUS-109337X
...
16
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-72110608
...
17
Lock, Handle HUS-109229X
...
18
Nut Crownlock 3/8-16 UNC HUS-73680600
...
19
Washer 13/32 x 1 x 11 Ga. HUS-19131611
...
20
Lever, Lock, Handle HUS-109228X
...
21
Handle HUS-150256X428
...
23
Screw, Hex Washer Hd. Slotted HUS-86777
...
24
Clip HUS-9484R
...
26
Cable, Clutch #10-24 x 1/2 HUS-159231
...
27
Nut Hexflange 1/4-20 UNC HUS-73900400
...
29
Nut, Keps #10-24 UNC HUS-73731000
...
30
Tie, Cable HUS-104164X
...
31
Bolt, Pivot HUS-150696
...
33
Bolt, Carriage 1/4-20 UNC x 1/2 HUS-72140404
...
37
Grip, Bar, Control HUS-102604X
...
41
Clamp, Bar, Control HUS-102744X
