Husqvarna PPRT8K (1995) Tiller

Model: PPRT8K (1995)

Back To Assemblies

Save Part Not Listed?
product name

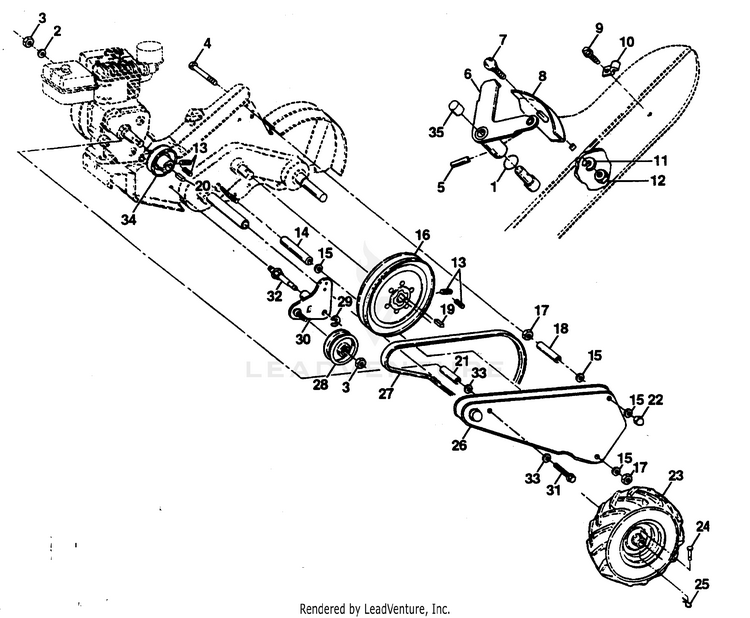

MAINFRAME, LEFT SIDE

...
...
1
O-Ring HUS-532106160
...
2
WASHER.3/8 HUS-539990118
...
3
Nut, Hex 3/8-16 HUS-873220600
...
4
Bolt, Hex Head 5/16-18 x 4-1/2 HUS-874930572
...
5
DRIVE PIN HUS-532002882
...
6
Lever, Shift HUS-532110111
...
7
Bolt, Carriage 1/4-20 x 1/2 Grade 5 HUS-872110404
...
8
Plate, Shift Indicator HUS-532008700
...
9
Screw Tap Hex #10-24unc X 1/2 HUS-817021008
...
10
Clip HUS-532009484
...
11
Washer, Lock 1/4 HUS-810040400
...
12
NUT.HEX..25-20.UNC HUS-532050675
...
13
Screw, Set, Hex 5/16-18 x 3/8 HUS-823230506
...
14
Spacer, Split HUS-532008382
...
15
WASHER - 15X7.3X1.6 HUS-734116301
...
16
Sheave, Transmission HUS-532100473
...
17
Nut, Hex 5/16-18 HUS-873220500
...
18
Spacer HUS-532008381
...
19
Key, Square 3/16 x 1-1/8 HUS-532002649
...
20
Key, Square HUS-532004914
...
21
Spacer, Split .523 x .718 x 2 HUS-532139155
...
22
Nut, Cap 5/16-18 HUS-532104214
...
23
Tire HUS-532005015
...
xx
Rim HUS-532005014
...
xx
Stem Valve HUS-532065139
...
24
Rivet, Drilled HUS-532004929
...
25
Retainer Spring HUS-532004921
...
26
Guard, Belt HUS-532144565
...
27
V-Belt HUS-532138399
...
28
PULLEY, IDLER HUS-532004371
...
29
Ring, Klip HUS-812000032
...
30
BRACKET.ASM.IDLER HUS-532159229
...
31
Bolt, Hex Head 1/2-20 x 2-3/4 HUS-874770844
...
32
Shaft, Idler Arm HUS-532139401
...
33
Washer HUS-532052160
...
34
Sheave, Engine HUS-532004368
...
35
Cap, Plunger HUS-532140062
