Husqvarna PPRT8K (1995) Tiller

Model: PPRT8K (1995)

Back To Assemblies

Save Part Not Listed?
product name

TRANSMISSION

...
...
0
Not Shown. HUS-532165806
...
1
HUS-532162170
...
2
Bolt, Upset HUS-532008370
...
3
KIT.TILLER.8HP.GRDR&REV.GEARS HUS-532414031
...
4
KIT.TILLER.8HP.GRDR&REV.GEARS HUS-532414031
...
5
Bearing, Needle HUS-532100413
...
6
Sprocket Assembly, Tine HUS-532144564
...
7
Sprocket Assembly, Tine HUS-532144564
...
8
Washer HUS-532004358
...
9
Shaft, Reduction, 1st HUS-532008358
...
10
Chain, Roller, 60P HUS-532008371
...
11
Spring, Shift, Fork HUS-532100371
...
12
HUS-532100482
...
13
Fork, Shift HUS-532008353
...
14
Shaft, Shift HUS-532008354
...
15
Klip Ring HUS-812000039
...
16
Washer, Seal HUS-532102136
...
17
Race, Bearing, Thrust, 5/8 I.D. HUS-532001370
...
18
BEARING HUS-532004895
...
19
Shaft, Input HUS-532100724
...
21
KIT.TINE.SHAFT.8HP.SERVICE HUS-532432060
...
22
Spacer 1.008 x 1-3/4 x .645 HUS-532106181
...
23
Pinion, Input HUS-532008359
...
24
Bearing, Needle HUS-532005020
...
25
Gasket, Gearcase HUS-532008372
...
26
Spacer .765 I.D. x 1.12 x 5/8 HUS-532106389
...
27
Gear, Cluster, Red., 2nd and 3rd HUS-532100433
...
28
Gear, Reverse Idler HUS-532008357
...
29
Gear Assembly, Reverse Idler (Includes Key Numbers 28 and 30) HUS-532144562
...
30
Bearing, Needle HUS-532006803
...
31
Klip Ring HUS-812000040
...
32
Shaft, Reverse Idler HUS-532008356
...
33
Shaft, Reduction, 2nd HUS-532100016
...
34
Spacer .765 I.D. x 1-1/8 x 1-3/8 HUS-532106392
...
35
Spacer, Ground Drive, L.H. HUS-532106394
...
36
Shaft Assembly, Ground HUS-532100436
...
37
Arm Assembly, Shift HUS-532142145
...
38
Spacer, Ground Drive, R.H. HUS-532106393
...
39
OIL SEAL HUS-532007393
...
40
Seal, Ring, Rubber HUS-532140576
...
41
SEAL ASM, OIL HUS-532155236
...
42
LOCKWASHER.7/16 HUS-539990247
...
43
Nut, Hex 7/16-20 HUS-873610700
...
44
HUS-532162170
...
45
HCS.5/16-18X3/4 HUS-539976934
...
46
Washer, Lock 5/16 HUS-810040500
...
47
Nut, Hex Head 5/16-18 HUS-873220500
...
48
Screw, Whiz-Lock 5/16-18 x 4 HUS-532100107
...
49
Spacer .765 I.D. x 1.12 x 3/4 HUS-532106391
...
50
Ring, Spiral HUS-532102144
...
xx
Grease, Plastilub Number 1 Not Shown. HUS-532006066

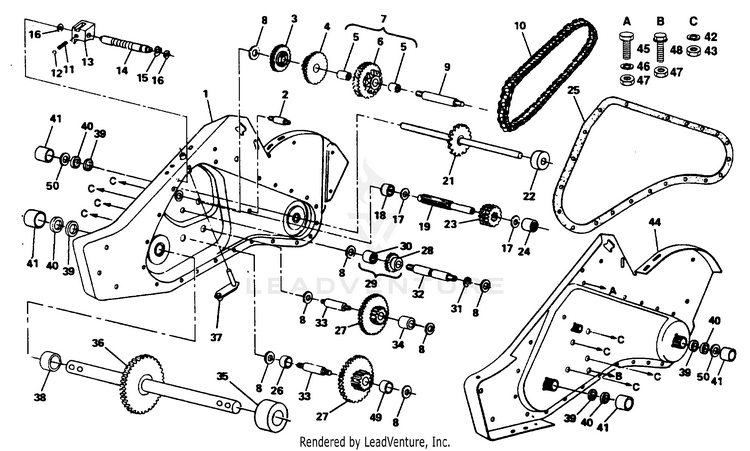

Schematic Image Zoomed
