Husqvarna PPRT8K (1995) Tiller

Model: PPRT8K (1995)

Back To Assemblies

Save Part Not Listed?
product name

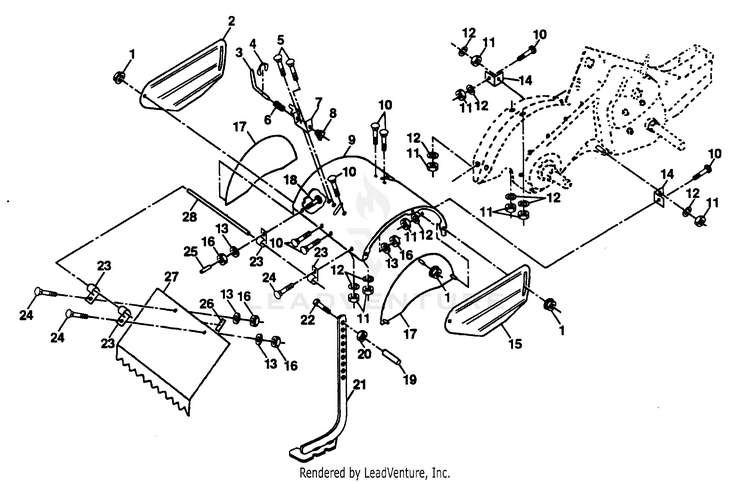

TINE SHIELD

...
...
1
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
2
Shield, Side, Outer, L.H. HUS-532108711
...
3
Pin, Depth Stake HUS-532008393
...
4
Ring, Klip HUS-812000036
...
5
Bolt, Carriage 5/16-18 x 1 HUS-872140508
...
6
Spring HUS-532008394
...
7
Bracket, Latch HUS-532008392
...
8
Spring, Depth Stake HUS-532109230
...
9
Shield, Tine HUS-532144566
...
10
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
11
Nut, Hex 5/16-18 HUS-873220500
...
12
Washer, Lock 5/16 HUS-810040500
...
13
Washer, Lock 1/4 HUS-810040400
...
14
Bracket, Shield Tine HUS-532008386
...
15
Shield, Side, Outer R.H. HUS-532108710
...
16
NUT.HEX..25-20.UNC HUS-532050675
...
17
Shield, Side HUS-532144568
...
18
Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5 HUS-872040410
...
19
Grip HUS-532102701
...
20
Nut, Hex 3/8-16 HUS-873220600
...
21
Stake, Depth HUS-532138420
...
22
Bolt, Hex 3/8-16 x 2 HUS-874930632
...
23
Hinge HUS-532004440
...
24
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 HUS-872140408
...
25
VINYL CAP HUS-532006712
...
26
Pad, Idler HUS-532109227
...
27
Shield, Leveling HUS-532144567
...
28
Pin, Hinge HUS-532138609
