Husqvarna PPRT8K (1995) Tiller

Model: PPRT8K (1995)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

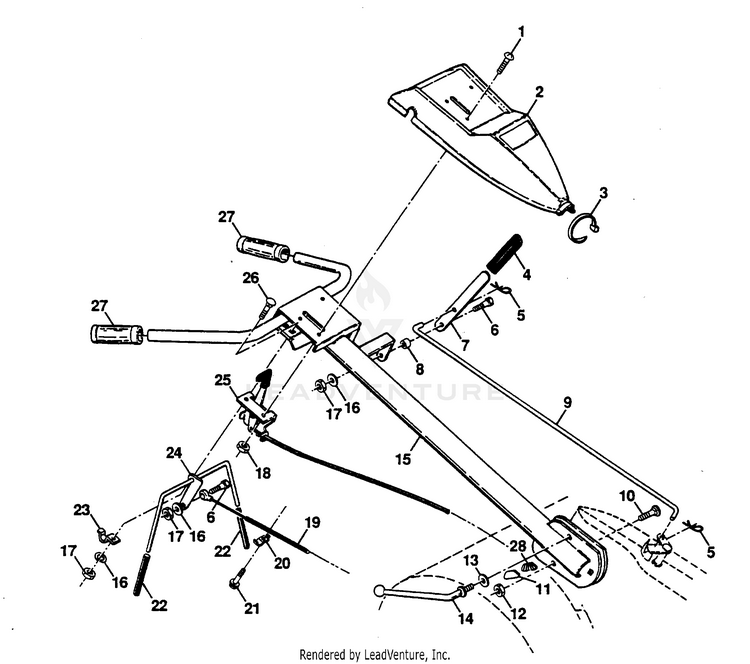

HANDLE ASSEMBLY

...
...
1
Screw, Pan Hd. #10-24 UNC HUS-871191008
...
2
Panel, Control HUS-532126951
...
3
Tie, Cable HUS-532104164
...
4
GRIP T HUS-532008206
...
5
RETAINER M HUS-532004497
...
6
Bolt, Shoulder HUS-532081328
...
7
Handle, Shift HUS-532109335
...
8
Grommet, Rubber HUS-532109313
...
9
Rod, Shift HUS-532138400
...
10
Bolt, Carriage 3/8-16 x 1 HUS-872110608
...
11
Lock, Handle HUS-532109229
...
12
Nut HUS-873680600
...
13
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
14
Lever, Lock, Handle HUS-532109228
...
15
HANDLE.ASM.TILLER.GREY. HUS-532440884
...
16
Washer, Lock 1/4 HUS-810040400
...
17
NUT.HEX..25-20.UNC HUS-532050675
...
18
NUT HUS-873271000
...
19
Cable, Clutch HUS-532101251
...
20
Clip HUS-532009484
...
21
Screw Tap Hex #10-24unc X 1/2 HUS-817021008
...
22
Grip, Bar, Control HUS-532102604
...
23
Clamp, Bar, Control HUS-532102744
...
24
Bar Assembly, Control HUS-532105216
...
25
THROTTLE CONTROL HUS-532175768
...
26
Bolt, Carriage 1/4-20 UNC x 1/2 HUS-872140404
...
27
Grip, Handle HUS-532140528
...
28
Lock, Handle HUS-532138283
