Husqvarna PPRT6 (1999 & Before) Tiller

Model: PPRT6 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

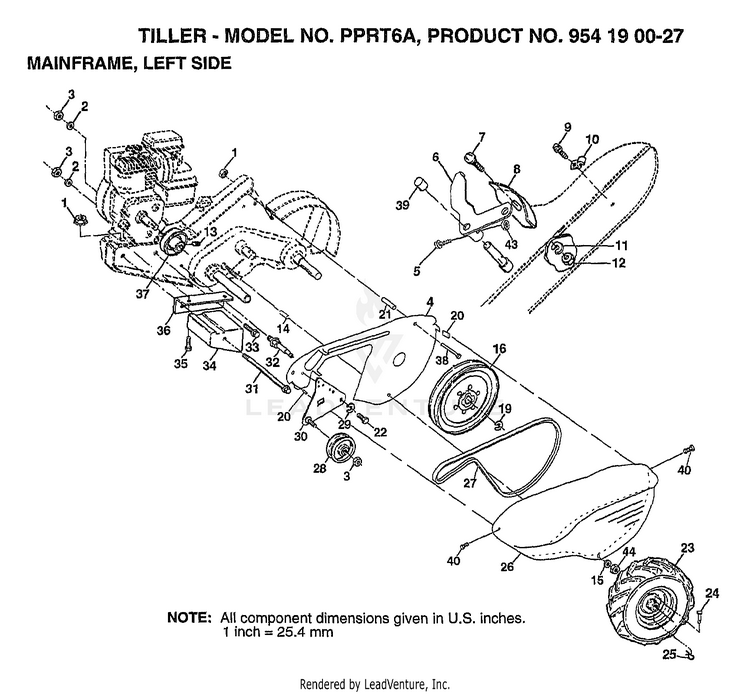

MAINFRAME, LEFT SIDE

...
...
1
NUT HUS-73510500
...
2
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
3
NUT.HEX.3/8-16UNC HUS-73220600
...
4
SHIELD.INNER.BELT HUS-165710
...
5
"SCREW-LEVER,SHI" HUS-154734
...
6
LEVER ASM CRT HUS-110111X
...
7
BOLT HUS-72110404
...
8
PANEL TI HUS-8700J
...
9
SUB= 750097 HUS-86777
...
10
CONDIUT CLIP T HUS-9484R
...
11
LOCKWASHER HUS-10040400
...
12
SUB= 50675 HUS-73220400
...
13
SET SCREW HUS-23230506
...
14
SPACER-SPLIT HUS-156117
...
15
WASHER HUS-19111116
...
16
SHEAVE.TRANS. HUS-145102
...
19
SUB= 2267J HUS-12000028
...
20
NUT J CLIP #8 HUS-165504
...
21
SPACER CRT HUS-110652X
...
22
BOLT.FIN.HX.5/16-24X1/2 HUS-74770508
...
23
TIRE TI HUS-5015J
...
23
SUB= 128952 HUS-124366X
...
23
SUB= 65139 HUS-795R
...
24
RIVET DRILLED HUS-126875
...
25
RETAINER M HUS-4497H
...
26
GUARD.BELT HUS-165501X505
...
27
BELT-V HUS-132801
...
28
PULLEY-IDLER TI HUS-104679X
...
29
KLIP RING HUS-12000032
...
30
BRACKET ASM IDLER HUS-159229
...
31
BOLT CRT HUS-102384X
...
32
SHIFT ARM CRT HUS-102141X
...
33
BOLT HUS-74760616
...
34
COUNTERWEIGHT CRT HUS-102383X
...
35
BOLT HUS-74760532
...
36
BRACKET LH CRT HUS-102331X
...
37
ENGINE PULLEY HUS-130812
...
38
SUB= 74780544 HUS-74760544
...
39
CAP PLUNGER BLACK HUS-140062
...
40
SCREW HX WSH.HD#8-18X1/2 HUS-165503
...
43
LOCKNUT HUS-69180
...
44
NUT HUS-73800500
